SIDE COVER REAR COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

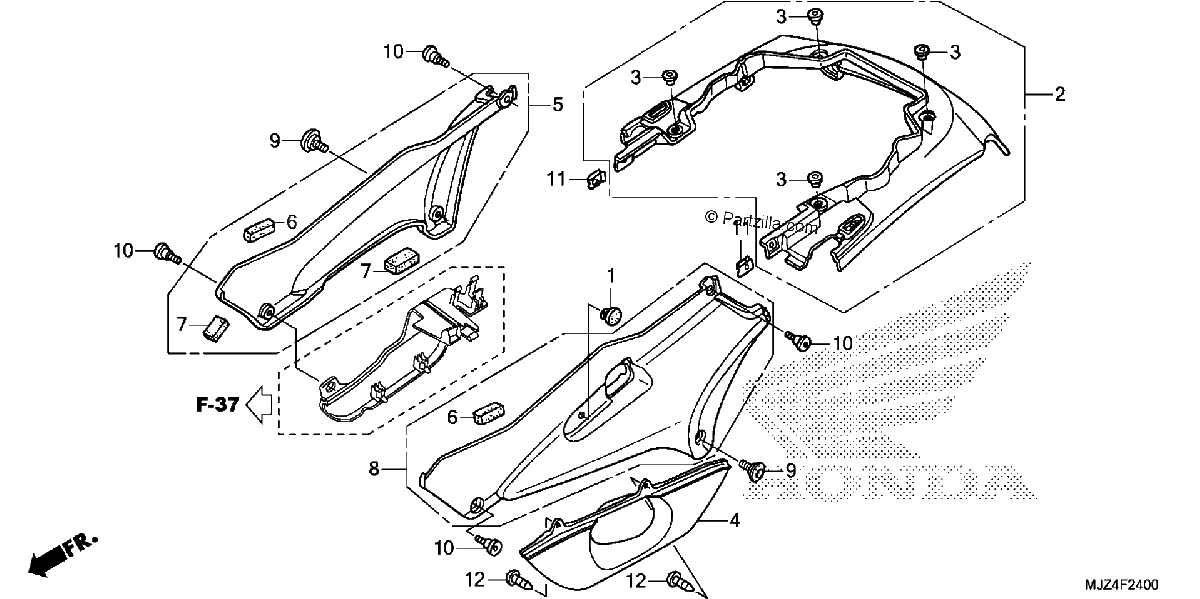

Diagrama de SIDE COVER REAR COWL

Repuestos

#1
50318-041-600
PLUG, HOLE
$2.71¢1 356
1
#2
77210-MCS-760ZD
COWL SET, RR. *NH138* (WL) (SHASTA WHITE)
$240.55¢120 275
1
#3
77223-MW3-670
COLLAR, RR. COWL SETTING
$4.20¢2 100
1
#4
83460-MCS-D90
COVER, L. SIDE (LOWER)
$16.35¢8 175
1
#5
83600-MCS-G01ZD
COVER, R. SIDE *NH138* (SHASTA WHITE)
$139.86¢69 931
1
#5
83600-MCS-G01ZH
COVER, R. SIDE *NHB01* (GRAPHITE BLACK)
$133.49¢66 744
1
#6
83601-MCS-G00
RUBBER, SIDE COVER
$2.89¢1 444
1
#7
83605-MCS-G00
SEAL, RUBBER
$2.40¢1 200
1
#8
83700-MCS-D90ZD
COVER, L. SIDE *NH138* (SHASTA WHITE)
$139.86¢69 931
1
#8
83700-MCS-D90ZG
COVER, L. SIDE *NHB01* (GRAPHITE BLACK)
$156.13¢78 063
1
#9
90106-MBL-610
SCREW, SPECIAL (6MM)
$2.88¢1 438
1
#10
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.44¢1 719
1
#11
90677-KAN-961
NUT, CLIP (5MM)
$4.94¢2 469
1
#12
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
