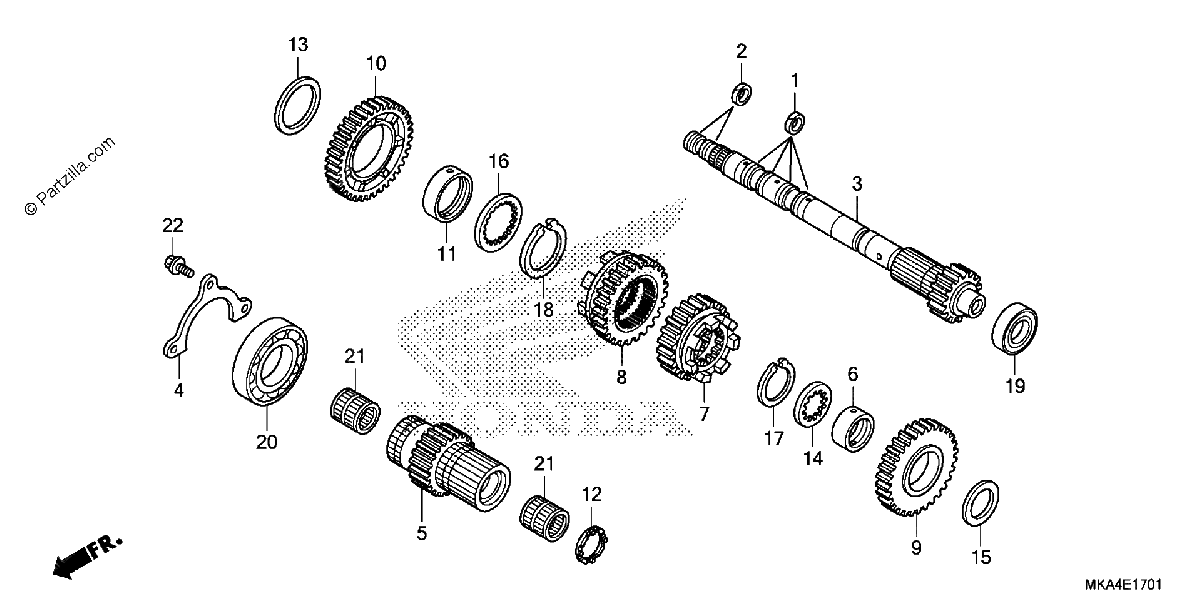

TRANSMISSION MAINSHAFT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
RING, SEALING (26MM)
$9.23¢4 617
#001
RING, SEALING (26MM)
$9.23¢4 617
#002
SEAL, RING (21.2MM)
$11.19¢5 595
#2
SEAL, RING (21.2MM)
$11.19¢5 595
#003
MAINSHAFT (INNER)
$375.96¢187 979
#3
MAINSHAFT (INNER)
$375.96¢187 979
#4
PLATE, MAINSHAFT BEARING SETTING
$3.79¢1 897
#004
PLATE, MAINSHAFT BEARING SETTING
$3.79¢1 897
#005
MAINSHAFT (OUTER) (21T)
$273.21¢136 603
#5
MAINSHAFT (OUTER) (21T)
$273.21¢136 603
#006
COLLAR (30X11.2)
$28.11¢14 053
#6
COLLAR (30X11.2)
$28.11¢14 053
#007
GEAR, MAINSHAFT THIRD (22T)
$101.20¢50 600
#7
GEAR, MAINSHAFT THIRD (22T)
$101.20¢50 600
#8
GEAR, MAINSHAFT FOURTH (25T)
$94.75¢47 374
#008
GEAR, MAINSHAFT FOURTH (25T)
$94.75¢47 374
#9
GEAR, MAINSHAFT FIFTH (30T)
$92.51¢46 253
#009
GEAR, MAINSHAFT FIFTH (30T)
$92.51¢46 253
#010
GEAR, MAINSHAFT SIXTH (37T)
$88.26¢44 131
#10
GEAR, MAINSHAFT SIXTH (37T)
$88.26¢44 131
#011
COLLAR (40X43X10)
$14.95¢7 475
#11
COLLAR (40X43X10)
$14.95¢7 475
#12
WASHER, SPECIAL
$6.01¢3 007
#012
WASHER, SPECIAL
$6.01¢3 007
#13
WASHER
$5.92¢2 961
#013
WASHER
$5.92¢2 961
#14
WASHER, SPLINE (30X36X1.5)
$3.90¢1 949
#014
WASHER, SPLINE (30X36X1.5)
$3.90¢1 949
#15
WASHER, THRUST (30.5MM)
$2.17¢1 087
#015
WASHER, THRUST (30.5MM)
$2.17¢1 087
#16
WASHER, SPLINE (40MM)
$9.56¢4 778
#016
WASHER, SPLINE (40MM)
$9.56¢4 778
#017
CIRCLIP (30MM)
$4.99¢2 496
#17
CIRCLIP (30MM)
$4.99¢2 496
#018
CIRCLIP (40MM)
$8.22¢4 111
#18
CIRCLIP (40MM)
$8.22¢4 111
#019
BEARING, RADIAL BALL (6204U)
$20.53¢10 264
#19
BEARING, RADIAL BALL (6204U)
$20.53¢10 264
#020
BEARING, RADIAL BALL (6008)
$28.36¢14 180
#20
BEARING, RADIAL BALL (6008)
$28.36¢14 180
#021
BEARING, NEEDLE (26X31X22) (NTN)
$16.57¢8 286
#21
BEARING, NEEDLE (26X31X22) (NTN)
$16.57¢8 286
#22
BOLT, FLANGE (6X14)
$1.13¢564
#022
BOLT, FLANGE (6X14)
$1.13¢564
