REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

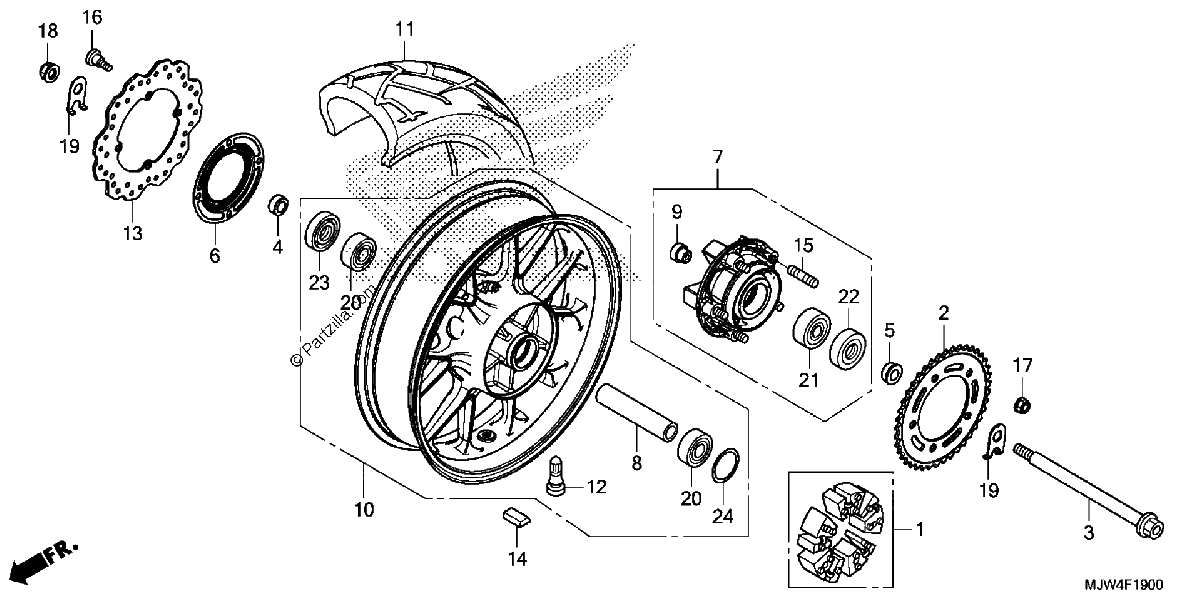

Diagrama de REAR WHEEL

Repuestos

#001
06410-MER-D00
DAMPER SET, WHEEL
$116.54¢58 269
1
#1
06410-MER-D00
DAMPER SET, WHEEL
$116.54¢58 269
1
#2
41201-MGZ-D00
SPROCKET, FINAL DRIVEN (41T)
$78.54¢39 269
1
#002
41201-MGZ-D00
SPROCKET, FINAL DRIVEN (41T)
$78.54¢39 269
1
#003
42301-MGZ-J00
AXLE, RR. WHEEL
$20.98¢10 488
1
#3
42301-MGZ-J00
AXLE, RR. WHEEL
$20.98¢10 488
1
#4
42312-MGZ-J00
COLLAR, Rear BRAKE SIDE
$17.01¢8 506
1
#004
42312-MGZ-J00
COLLAR, Rear BRAKE SIDE
$17.01¢8 506
1
#005
42313-MGZ-J40
COLLAR, L. RR. WHEEL SIDE
$37.79¢18 894
1
#5
42313-MGZ-J40
COLLAR, L. RR. WHEEL SIDE
$37.79¢18 894
1
#007
42615-MGZ-D00
FLANGE SUB-ASSY., RR. DRIVEN
$187.95¢93 975
1
#7
42615-MGZ-D00
FLANGE SUB-ASSY., RR. DRIVEN
$187.95¢93 975
1
#008
42620-MGZ-J00
COLLAR, RR. AXLE DISTANCE
$16.35¢8 175
1
#8
42620-MGZ-J00
COLLAR, RR. AXLE DISTANCE
$16.35¢8 175
1
#9
42625-MGZ-J00
COLLAR B, Rear AXLE DISTANCE
$10.49¢5 244
1
#009
42625-MGZ-J00
COLLAR B, Rear AXLE DISTANCE
$10.49¢5 244
1
#010
42650-MGZ-J01
WHEEL SUB-ASSY., RR.
$1296.67¢648 338
1
#10
42650-MGZ-J01
WHEEL SUB-ASSY., RR.
$1296.67¢648 338
1
#011
42711-MJW-J81
TIRE, RR. (160/60ZR17 M/C 69W) (DUNLOP)
$293.94¢146 969
1
#11
42711-MJW-J81
TIRE, RR. (160/60ZR17 M/C 69W) (DUNLOP)
$293.94¢146 969
1
#011
42711-MJW-J82
TIRE, Rear.
$293.94¢146 969
1
#012
42753-K38-901
VALVE, RIM
$0.71¢356
1
#012
42753-KWF-901
VALVE, RIM (TRITON)
$0.71¢356
1
#12
42753-KWF-901
VALVE, RIM (TRITON)
$0.71¢356
1
#13
43251-MGZ-J02
DISK, Rear BRAKE (SUNSTAR)
$98.09¢49 044
1
#013
43251-MGZ-J02
DISK, Rear BRAKE (SUNSTAR)
$98.09¢49 044
1
#14
44728-SEA-N02
WEIGHT, BALANCE (25G) (TOHO ZINK)
$7.21¢3 606
1
#014
44728-SEA-N02
WEIGHT, BALANCE (25G) (TOHO ZINK)
$7.21¢3 606
1
#14
44727-SEA-N02
WEIGHT, BALANCE (15G) (TOHO ZINK)
$3.39¢1 694
1
#014
44727-SEA-N02
WEIGHT, BALANCE (15G) (TOHO ZINK)
$3.39¢1 694
1
#14
44726-SEA-N02
WEIGHT, BALANCE (5G) (TOHO ZINK)
$1.15¢575
1
#014
44723-SEA-N02
WEIGHT, BALANCE (30G) (TOHO ZINK)
$7.72¢3 863
1
#014
44726-SEA-N02
WEIGHT, BALANCE (5G) (TOHO ZINK)
$1.15¢575
1
#14
44723-SEA-N02
WEIGHT, BALANCE (30G) (TOHO ZINK)
$7.72¢3 863
1
#14
44722-SEA-N02
WEIGHT, BALANCE (20G) (TOHO ZINK)
$6.35¢3 175
1
#014
44722-SEA-N02
WEIGHT, BALANCE (20G) (TOHO ZINK)
$6.35¢3 175
1
#14
44721-SEA-N02
WEIGHT, BALANCE (10G) (TOHO ZINK)
$5.45¢2 725
1
#014
44721-SEA-N02
WEIGHT, BALANCE (10G) (TOHO ZINK)
$5.45¢2 725
1
#15
90102-MAS-000
BOLT, STUD (12X25)
$4.86¢2 431
1
#015
90102-MAS-000
BOLT, STUD (12X25)
$4.86¢2 431
1
#16
90105-MGS-D30
BOLT, DISK (8X25)
$3.65¢1 825
1
#016
90105-MGS-D30
BOLT, DISK (8X25)
$3.65¢1 825
1
#17
90306-KGH-901
NUT, U (12MM) (FUJI SEIMITSU)
$3.30¢1 650
1
#017
90306-KGH-901
NUT, U (12MM) (FUJI SEIMITSU)
$3.30¢1 650
1
#18
90306-MGZ-J01
NUT, U FLANGE (16MM)
$8.36¢4 181
1
#018
90306-MGZ-J01
NUT, U FLANGE (16MM)
$8.36¢4 181
1
#19
90559-MJW-J00
WASHER, Rear SWINGARM
$4.24¢2 119
1
#019
90559-MJW-J00
WASHER, Rear SWINGARM
$4.24¢2 119
1
#20
91051-KS4-003
BEARING, RADIAL BALL (6303)
$44.49¢22 244
1
#20
91051-MGZ-J01
BEARING, RADIAL BALL (6303UU) (FUJIKOSHI)
$25.54¢12 769
1
#020
91051-MGZ-J01
BEARING, RADIAL BALL (6303UU) (FUJIKOSHI)
$25.54¢12 769
1
#20
91054-MT6-831
BEARING, RADIAL BALL (6303UU) (NSK)
$44.49¢22 244
1
#020
91054-MT6-831
BEARING, RADIAL BALL (6303UU) (NSK)
$44.49¢22 244
1
#21
91053-MM5-004
BEARING, RADIAL BALL (6304UU)
$37.33¢18 663
1
#021
91053-MM5-004
BEARING, RADIAL BALL (6304UU)
$37.33¢18 663
1
#022
91253-442-003
DUST SEAL (30X52X7)
$16.20¢8 100
1
#22
91253-442-003
DUST SEAL (30X52X7)
$16.20¢8 100
1
#023
91253-443-761
DUST SEAL (30X47X8) (ARAI)
$14.09¢7 044
1
#23
91253-443-761
DUST SEAL (30X47X8) (ARAI)
$14.09¢7 044
1
#023
91253-443-762
DUST SEAL (30X47X8) (NOK)
$14.09¢7 044
1
#23
91253-443-762
DUST SEAL (30X47X8) (NOK)
$14.09¢7 044
1
#24
91351-MGS-D30
O-RING (55X2)
$3.65¢1 825
1
#024
91351-MGS-D30
O-RING (55X2)
$3.65¢1 825
1
