HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

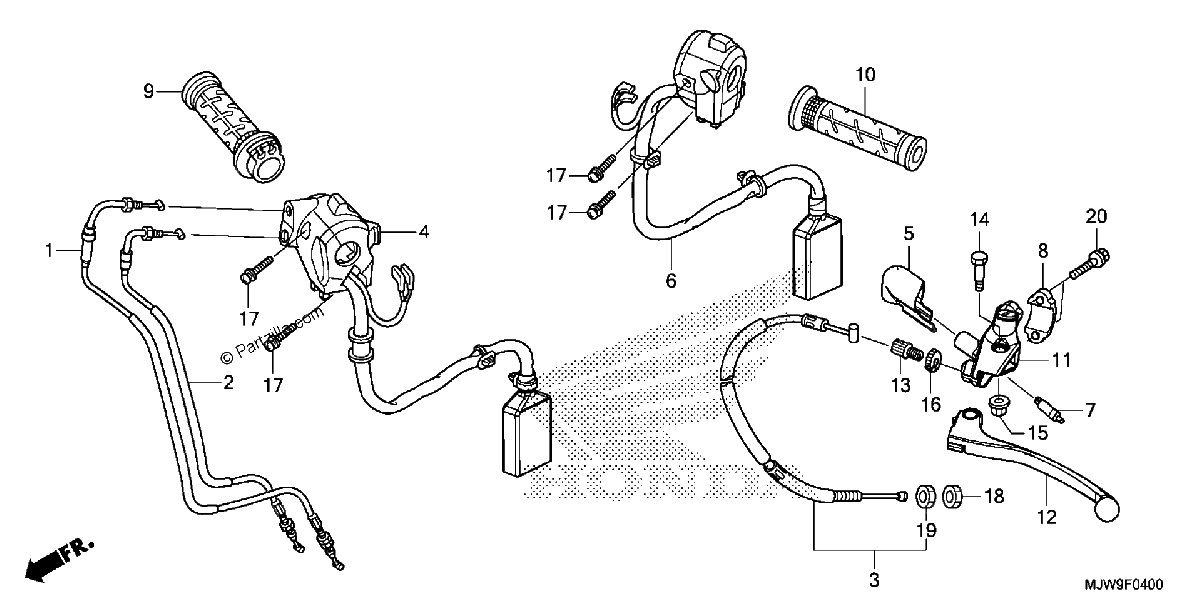

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#1
17910-MGZ-J01
CABLE A, THROTTLE
$14.36¢7 181
1
#2
17920-MGZ-J01
CABLE B, THROTTLE
$13.85¢6 925
1
#3
22870-MGZ-J01
CABLE, CLUTCH
$17.50¢8 750
1
#4
35130-MJW-A41
SWITCH ASSY., ENGINE STOP
No Disponible
1
#5
35152-MGZ-J00
COVER, CLUTCH SWITCH
$2.50¢1 250
1
#6
35200-MJW-A41
SWITCH ASSY., TURN SIGNAL
No Disponible
1
#7
35330-KYJ-901
SWITCH, Front LEVER
$8.01¢4 006
1
#8
45517-166-006
HOLDER, MASTER CYLINDER
$15.74¢7 869
1
#9
53140-MGS-305
GRIP, THROTTLE (COO)
$32.89¢16 444
1
#9
53140-MGS-D30
GRIP, THROTTLE
$32.89¢16 444
1
#10
53150-MGS-D30
GRIP, L HANDLE
$14.07¢7 038
1
#10
53150-MGS-305
GRIP, L HANDLE (COO)
$14.07¢7 038
1
#11
53172-KYJ-900
BRACKET, HANDLE LEVER
$16.26¢8 131
1
#12
53178-MFR-305
LEVER, L. HANDLEBAR (COO)
$22.65¢11 325
1
#13
53192-268-000
BOLT, WIRE ADJUSTING
$7.92¢3 963
1
#14
90113-438-000
BOLT, L HANDLEBAR LEVER PIVOT
$9.20¢4 600
1
#15
90301-KGH-901
NUT, U (6MM) (FUJI SEIMITSU)
$1.79¢894
1
#16
90321-315-670
NUT, FIXING
$8.86¢4 431
1
#17
90507-MGZ-J00
SCREW-WASHER (5X20)
$0.64¢319
1
#18
94002-08070-0S
NUT, HEX. (8MM)
$1.68¢838
1
#19
94030-08070
NUT, HEX. (8MM)
$0.61¢306
1
#20
96001-06022-07
BOLT, FLANGE (6X22)
$2.38¢1 188
1
