FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

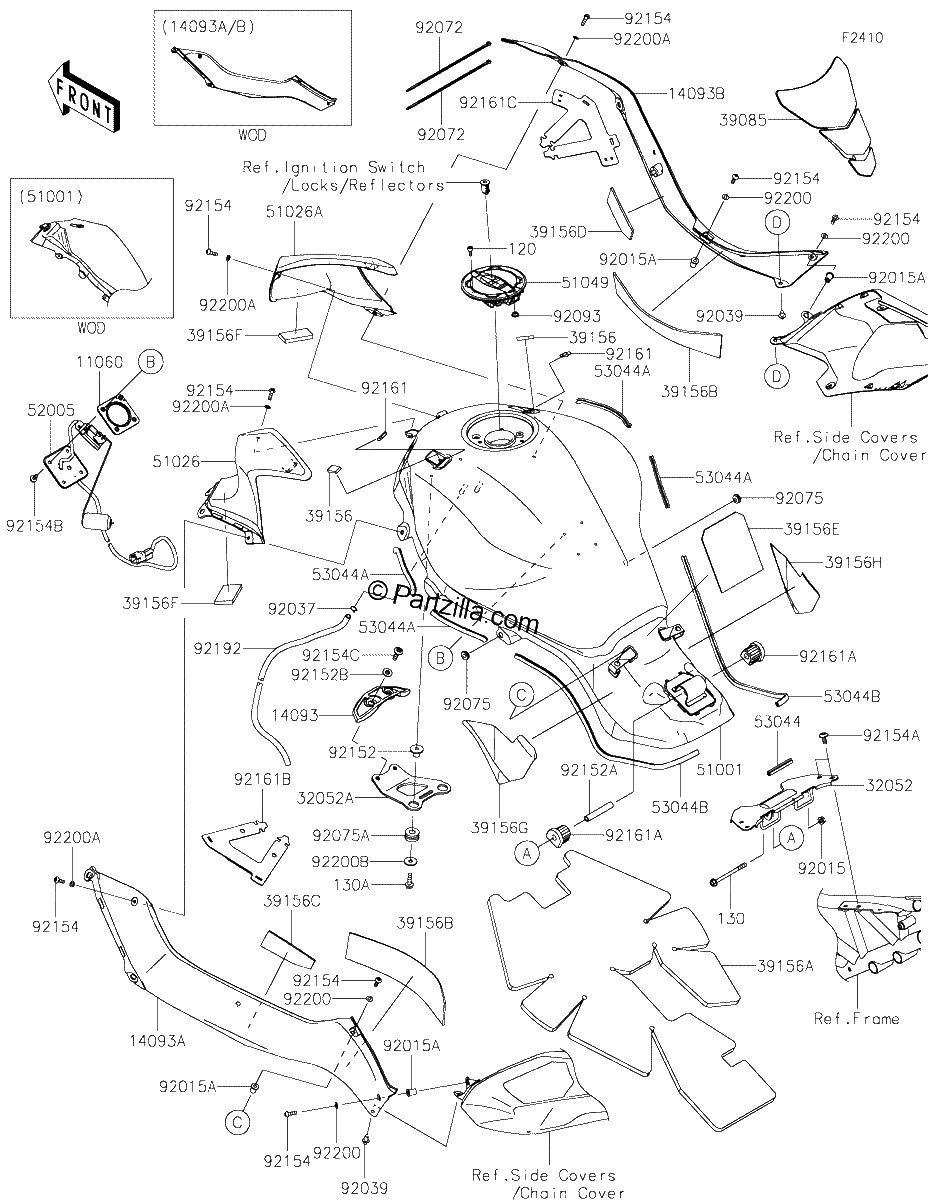

Diagrama de FUEL TANK

Repuestos

#120
120CA0512
BOLT SOCKET,5X12
$1.55¢775
1
#130
130BA0675
BOLT FLANGED,6X75
$1.69¢844
1
#130A
130CA0622
BOLT FLANGED,6X22
$2.48¢1 238
1
#11060
11060-1952
GASKET,FUEL GAUGE
$22.34¢11 169
1
#14093
14093-0676
COVER,TANK,FR
$15.21¢7 606
1
#14093A
14093-0912-J03
COVER,KNEE,LH,M.D.BLACK
$244.35¢122 175
1
#14093B
14093-0913-J03
COVER,KNEE,RH,M.D.BLACK
$244.35¢122 175
1
#32052
32052-0812
BRACKET-TANK
$105.00¢52 500
1
#32052A
32052-0860
BRACKET TANK
$42.71¢21 356
1
#39085
39085-0015
PAD-TANK
$153.16¢76 581
1
#39156B
39156-2257
PAD,50X250X3
$8.35¢4 175
1
#39156
39156-0705
PAD,20X30X4
$0.59¢294
1
#39156A
39156-2229
PAD,FUEL TANK,LWR
$149.40¢74 700
1
#39156C
39156-2290
PAD,43X95X8,LH
$6.23¢3 113
1
#39156D
39156-2291
PAD,43X95X8,RH
$6.23¢3 113
1
#39156E
39156-2307
PAD,113X100X2
$11.04¢5 519
1
#39156F
39156-2520
PAD,25X50X8
$1.80¢900
1
#39156G
39156-2816
PAD,FUEL TANK,Left Hand
$27.19¢13 594
1
#39156H
39156-2817
PAD,FUEL TANK,RH
$27.19¢13 594
1
#51001
51001-0919-J03
TANK COMP FUEL,M D BLACK
$1732.57¢866 287
1
#51026
51026-0016-J03
COVER TANK,LH,M.D.BLACK
$177.40¢88 700
1
#51026A
51026-0017-J03
COVER TANK,RH,M.D.BLACK
$177.40¢88 700
1
#51049
51049-0756
CAP-TANK,FUEL
$173.96¢86 981
1
#52005
52005-0763
GAUGE,FUEL
$268.06¢134 031
1
#53044B
53044-0628
TRIM,450MM
$9.03¢4 513
1
#53044A
53044-0627
TRIM,105MM
$3.05¢1 525
1
#53044
53044-0565
TRIM
$3.14¢1 569
1
#92015A
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.29¢1 644
1
#92037
92037-010
CLAMP,TUBE | [CA]
$3.90¢1 950
1
#92039
92039-0068
RIVET
$2.73¢1 363
1
#92072
92072-0782
BAND,202X3.6
$1.96¢981
1
#92075A
92075-1690
DAMPER,10X24X12
$4.96¢2 481
1
#92075
92075-1011
DAMPER,6X16X7
$7.30¢3 650
1
#92093
92093-1030
SEAL,FUEL TANK CAP
$7.72¢3 863
1
#92152A
92152-1182
COLLAR,6.8X10X60
$4.80¢2 400
1
#92152B
92152-2495
COLLAR,6.5X16X4.6
$4.81¢2 406
1
#92152
92152-0091
COLLAR,6.3X10X14.5
$11.61¢5 806
1
#92154B
92154-1856
BOLT,FLANGED,5X12
$1.72¢862
1
#92154A
92154-1807
BOLT,SOCKET,6X14
$2.97¢1 487
1
#92154C
92154-2234
BOLT,SOCKET,6X22
$1.79¢894
1
#92154
92154-0209
BOLT,SOCKET,5X16
$2.54¢1 269
1
#92161
92161-0365
DAMPER
$5.26¢2 631
1
#92161A
92161-1737
DAMPER,FUEL TANK
$5.84¢2 919
1
#92161B
92161-2181
DAMPER,LH
$34.15¢17 075
1
#92161C
92161-2182
DAMPER,RH
$30.60¢15 300
1
#92192
92192-1669
TUBE,DRAIN,6X9X808
$11.99¢5 994
1
#92200
92200-0006
WASHER,NYLONE,5.3X11.5X0.5
$1.77¢888
1
#92200A
92200-1011
WASHER,NYLON,5.2X12X1
$2.80¢1 400
1
#92200B
92200-1087
WASHER,6.5X22X1.6
$3.93¢1 963
1
