MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

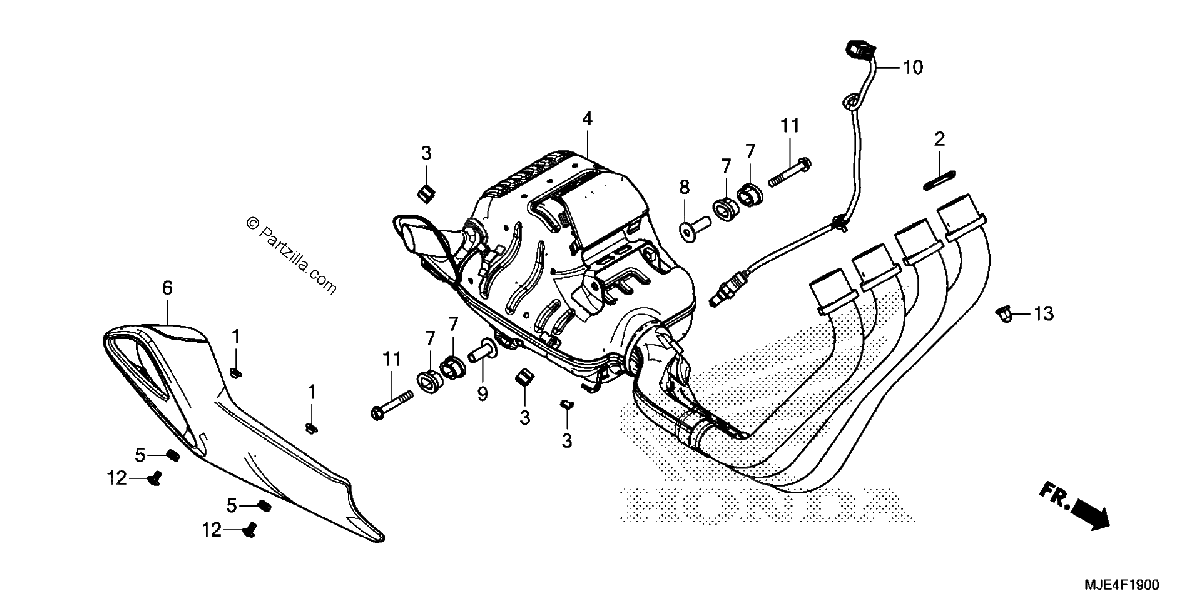

Diagrama de MUFFLER

Repuestos

#1
18185-MGV-D00
COLLAR, MUFFLER MOUNTING
$7.24¢3 622
1
#001
18185-MGV-D00
COLLAR, MUFFLER MOUNTING
$7.24¢3 622
1
#2
18291-MN4-920
GASKET, EX. PIPE
$5.92¢2 961
1
#002
18291-MN4-920
GASKET, EX. PIPE
$5.92¢2 961
1
#003
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.43¢1 213
1
#3
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.43¢1 213
1
#4
18300-MJE-305
MUFFLER (COO)
$1078.38¢539 189
1
#004
18300-MJE-305
MUFFLER (COO)
$1078.38¢539 189
1
#5
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.59¢1 294
1
#005
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.59¢1 294
1
#6
18355-MJE-D00
PROTECTOR, MUFFLER
$210.71¢105 357
1
#006
18355-MJE-D00
PROTECTOR, MUFFLER
$210.71¢105 357
1
#007
18422-MGZ-J00
RUBBER, EX. PIPE MOUNTING
$9.50¢4 749
1
#7
18422-MGZ-J00
RUBBER, EX. PIPE MOUNTING
$9.50¢4 749
1
#008
18423-MJE-D00
COLLAR, L. MUFFLER MOUNTING
$6.51¢3 254
1
#8
18423-MJE-D00
COLLAR, L. MUFFLER MOUNTING
$6.51¢3 254
1
#9
18424-MJE-D00
COLLAR, Right MUFFLER MOUNTING
$5.67¢2 835
1
#009
18424-MJE-D00
COLLAR, Right MUFFLER MOUNTING
$5.67¢2 835
1
#10
36531-MJE-D01
SENSOR, OXYGEN (NGK)
$187.66¢93 828
1
#010
36531-MJE-D01
SENSOR, OXYGEN (NGK)
$187.66¢93 828
1
#011
90103-MJE-D00
BOLT, FLANGE (8X55)
$2.09¢1 047
1
#11
90103-MJE-D00
BOLT, FLANGE (8X55)
$2.09¢1 047
1
#12
90106-KRG-000
SCREW, PAN (6X12)
$2.59¢1 294
1
#012
90106-KRG-000
SCREW, PAN (6X12)
$2.59¢1 294
1
#013
90304-KPH-700
NUT, HEX CAP (8MM)
$2.01¢1 006
1
#13
90304-KPH-700
NUT, HEX CAP (8MM)
$2.01¢1 006
1
