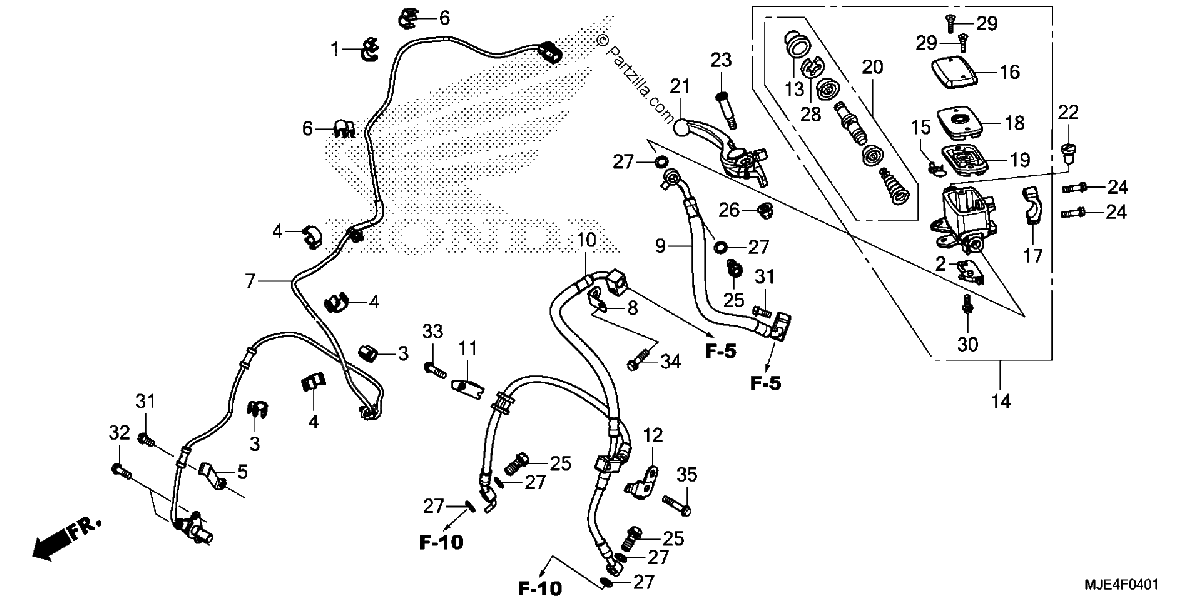

FRONT BRAKE MASTER CYLINDER CBR650FA
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CLAMP, PIPE
$8.64¢4 319
#2
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#3
CLAMP, ABS WIRE (D8.5)
$4.00¢2 000
#4
CLAMP, ABS WIRE (D12)
$3.50¢1 750
#5
CLAMP, SENSOR WIRE
$6.64¢3 319
#6
CLAMP, ABS WIRE
$4.13¢2 063
#7
SENSOR, FR. WHEEL SPEED
$134.30¢67 150
#8
STAY, SENSOR WIRE
$4.07¢2 037
#9
HOSE A, FR. BRAKE
$47.09¢23 544
#10
HOSE B, FR. BRAKE
$153.38¢76 688
#11
CLAMP A, FR. BRAKE HOSE
$3.91¢1 956
#12
STAY, FR. BRAKE HOSE
$7.18¢3 588
#13
BOOT
$14.24¢7 119
#14
MASTER CYLINDER SUB-Assembly., Front.(COO) (NISSIN)
$136.89¢68 444
#15
PROTECTOR
$5.20¢2 600
#16
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
#17
HOLDER, MASTER CYLINDER
$15.74¢7 869
#18
PLATE, DIAPHRAGM
$12.36¢6 181
#19
DIAPHRAGM
$17.68¢8 838
#20
MASTER CYLINDER SET
$46.40¢23 200
#21
LEVER Assembly., Right HANDLE (COO)
$61.71¢30 856
#22
PLUG, HANDLE LEVER BRACKET
$3.20¢1 600
#23
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
#24
BOLT, FLANGE (6X22)
$0.61¢306
#25
BOLT, OIL (10X22)
$8.89¢4 444
#26
NUT, CAP (6MM)
$3.65¢1 825
#27
WASHER, OIL BOLT
$4.85¢2 425
#28
CIRCLIP
$3.10¢1 550
#29
SCREW, FLAT (4X12)
$1.16¢581
#29
SCREW, FLAT (4X12)
$1.16¢581
#30
SCREW-WASHER (4X12)
$1.72¢862
#30
SCREW-WASHER (4X12)
$1.72¢862
#31
BOLT, FLANGE (6X12)
$2.31¢1 156
#32
BOLT, FLANGE (6X16)
$1.35¢675
#33
BOLT, FLANGE (6X20)
$1.74¢869
#34
BOLT, FLANGE (6X25)
$1.72¢862
#35
BOLT, FLANGE (6X35)
$2.79¢1 394
