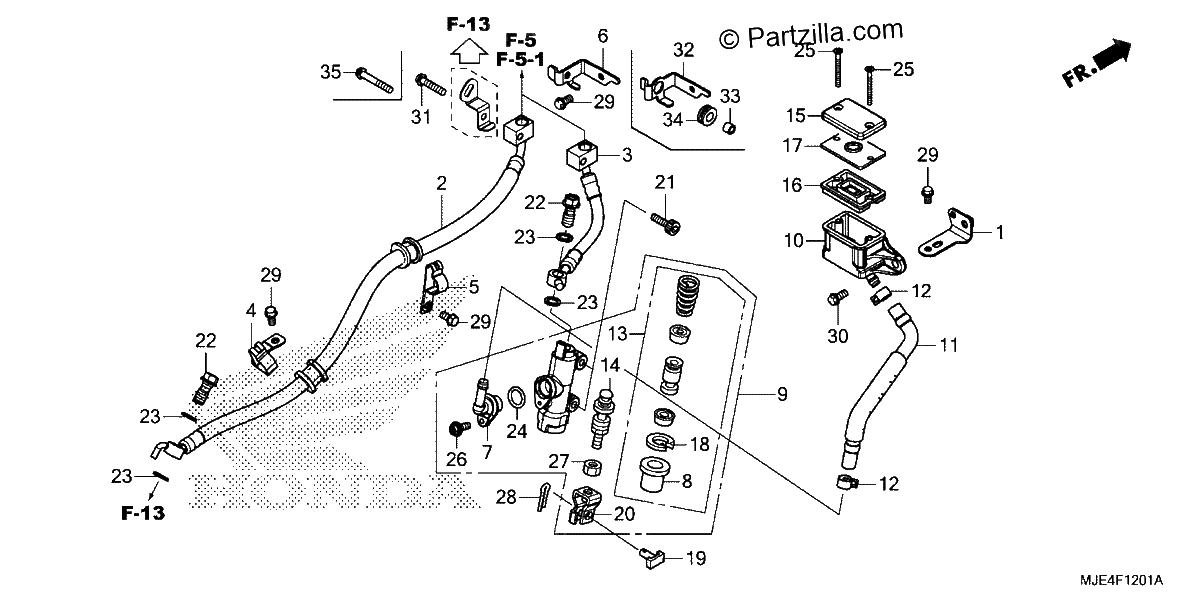

REAR BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
STAY C, RR. BRAKE
$7.76¢3 881
#002
HOSE A, Rear BRAKE
$44.49¢22 244
#003
HOSE B, Rear BRAKE
$31.95¢15 975
#004
CLAMP A, Rear BRAKE HOSE
$5.22¢2 613
#005
CLAMP B, Rear BRAKE HOSE
$4.96¢2 481
#006
STAY, Rear BRAKE PIPE
$9.00¢4 500
#007
CONNECTOR, MASTER CYLINDER
$9.96¢4 981
#008
BOOT
$11.74¢5 869
#009
MASTER CYLINDER SUB-ASSY., RR. (COO)
$220.51¢110 256
#010
CUP, OIL
$27.52¢13 763
#011
HOSE, RR. MASTER CYLINDER
$13.44¢6 719
#012
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#013
PISTON SET, MASTER CYLINDER (NISSIN)
$53.99¢26 994
#014
ROD, PUSH
$25.54¢12 769
#015
CAP, MASTER CYLINDER (COO)
$5.04¢2 519
#015
CAP, MASTER CYLINDER
$5.04¢2 519
#016
DIAPHRAGM
$12.31¢6 156
#017
PLATE, DIAPHRAGM
$12.60¢6 300
#018
CIRCLIP
$2.50¢1 250
#019
PIN, BRAKE ROD
$5.76¢2 881
#020
JOINT, BRAKE ROD
$17.25¢8 625
#021
BOLT, SOCKET (6X20)
$2.09¢1 044
#022
BOLT, OIL (10X22)
$8.89¢4 444
#023
WASHER, OIL BOLT
$4.85¢2 425
#024
O-RING (14.8X2.4)
$3.30¢1 650
#025
SCREW, FLAT (4X40)
$0.61¢306
#026
SCREW-WASHER (4X12)
$1.72¢862
#026
SCREW-WASHER (4X12)
$1.72¢862
#027
NUT, HEX. (8MM)
$1.60¢800
#028
PIN, SPLIT (2.0X12)
$1.27¢638
#029
BOLT, FLANGE (6X12)
$2.31¢1 156
#030
BOLT, FLANGE (6X14)
$1.54¢769
#031
BOLT, FLANGE (6X28)
$1.95¢975
