REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

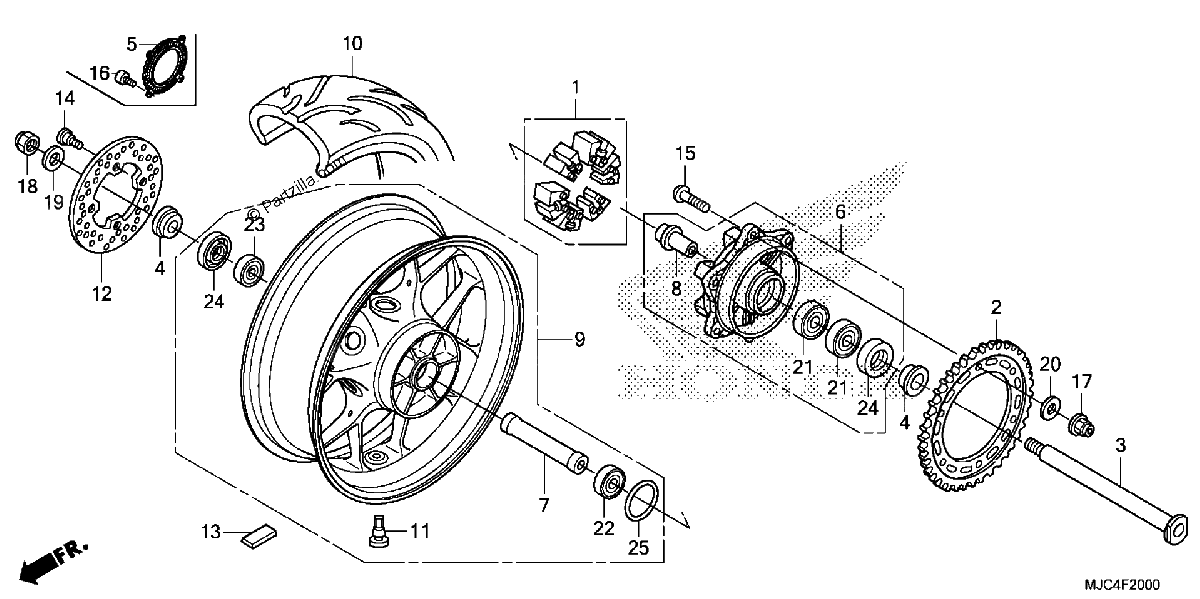

Diagrama de REAR WHEEL

Repuestos

#001
06410-MFJ-D00
DAMPER SET, WHEEL
$61.74¢30 872
1
#1
06410-MFJ-D00
DAMPER SET, WHEEL
$61.74¢30 872
1
#002
41201-MFJ-A00
SPROCKET, FINAL DRIVEN (42T)
$99.92¢49 962
1
#2
41201-MFJ-A00
SPROCKET, FINAL DRIVEN (42T)
$99.92¢49 962
1
#003
42301-MJC-A00
AXLE, RR. WHEEL
$87.85¢43 924
1
#3
42301-MJC-A00
AXLE, RR. WHEEL
$87.85¢43 924
1
#4
42311-MJC-A00
COLLAR, RR. WHEEL SIDE
$21.26¢10 632
1
#004
42311-MJC-A00
COLLAR, RR. WHEEL SIDE
$21.26¢10 632
1
#006
42615-MJC-A00
FLANGE SUB-ASSY., RR. DRIVEN
$284.90¢142 451
1
#6
42615-MJC-A00
FLANGE SUB-ASSY., RR. DRIVEN
$284.90¢142 451
1
#7
42620-MJC-A00
COLLAR, RR. AXLE DISTANCE
$43.47¢21 735
1
#007
42620-MJC-A00
COLLAR, RR. AXLE DISTANCE
$43.47¢21 735
1
#008
42625-MEL-000
COLLAR B, RR. WHEEL DISTANCE
$36.93¢18 463
1
#8
42625-MEL-000
COLLAR B, RR. WHEEL DISTANCE
$36.93¢18 463
1
#009
42650-MJC-A01ZC
WHEEL SUB-Assembly., Rear. (TYPE2)
$1257.19¢628 596
1
#9
42650-MJC-305ZB
WHEEL SUB-ASSY., RR. (TYPE2) (COO)
$1257.19¢628 596
1
#009
42650-MJC-A00ZC
WHEEL SUB-Assembly., Rear. (TYPE2)
$1257.19¢628 596
1
#009
42650-MJC-305ZB
WHEEL SUB-ASSY., RR. (TYPE2) (COO)
$1257.19¢628 596
1
#10
42711-MJC-A01
TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP)
$409.41¢204 706
1
#010
42711-MJC-A01
TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP)
$409.41¢204 706
1
#010
42711-MJC-A02
TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP)
$409.41¢204 706
1
#10
42711-MJC-A02
TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP)
$409.41¢204 706
1
#010
42711-MJC-A03
TIRE, Rear. (180/55ZR17) (M/C 73W) (DUNLOP)
$409.41¢204 706
1
#11
42753-ML7-004
VALVE, RIM (DUNLOP)
$13.60¢6 802
1
#011
42753-ML7-004
VALVE, RIM (DUNLOP)
$13.60¢6 802
1
#012
43251-MEE-000
DISK, RR. BRAKE
$245.61¢122 803
1
#12
43251-MEE-000
DISK, RR. BRAKE
$245.61¢122 803
1
#013
44723-MGC-003
WEIGHT, BALANCE (20G)
$6.22¢3 111
1
#13
44723-MGC-003
WEIGHT, BALANCE (20G)
$6.22¢3 111
1
#013
44721-MGC-003
WEIGHT, BALANCE (10G)
$5.22¢2 610
1
#013
44722-MGC-003
WEIGHT, BALANCE (15G)
$6.22¢3 111
1
#13
44722-MGC-003
WEIGHT, BALANCE (15G)
$6.22¢3 111
1
#13
44721-MGC-003
WEIGHT, BALANCE (10G)
$5.22¢2 610
1
#014
90105-MV9-003
BOLT, BRAKE DISK (8X24) (TSUKIBOSHI)
$6.92¢3 461
1
#14
90105-MV9-003
BOLT, BRAKE DISK (8X24) (TSUKIBOSHI)
$6.92¢3 461
1
#15
90121-MCF-D30
BOLT (10X30)
$3.36¢1 679
1
#015
90121-MCF-D30
BOLT (10X30)
$3.36¢1 679
1
#17
90304-KAE-871
NUT, U (10MM)
$4.83¢2 415
1
#017
90304-KAE-871
NUT, U (10MM)
$4.83¢2 415
1
#018
90306-MCF-D01
NUT, U (22MM)
$11.94¢5 969
1
#18
90306-MCF-D01
NUT, U (22MM)
$11.94¢5 969
1
#19
90401-MCJ-000
WASHER (23X37X2.5)
$5.63¢2 818
1
#019
90401-MCJ-000
WASHER (23X37X2.5)
$5.63¢2 818
1
#20
90502-MCF-000
WASHER (10MM)
$3.32¢1 662
1
#020
90502-MCF-000
WASHER (10MM)
$3.32¢1 662
1
#21
91051-HA7-671
BEARING, RADIAL BALL (28X52X12)
$36.32¢18 158
1
#021
91051-HA7-671
BEARING, RADIAL BALL (28X52X12)
$36.32¢18 158
1
#022
91052-MCF-003
BEARING, RADIAL BALL (6005)
$16.03¢8 015
1
#22
91052-MCF-003
BEARING, RADIAL BALL (6005)
$16.03¢8 015
1
#23
91053-MAZ-003
BEARING, RADIAL BALL (6205X2)
$18.46¢9 229
1
#023
91053-MAZ-003
BEARING, RADIAL BALL (6205X2)
$18.46¢9 229
1
#024
91254-MJC-A01
DUST SEAL (35X52X7.5)
$13.24¢6 618
1
#24
91254-MJC-A01
DUST SEAL (35X52X7.5)
$13.24¢6 618
1
#25
91352-MCF-003
O-RING (51X2)
$4.21¢2 105
1
#025
91352-MCF-003
O-RING (51X2)
$4.21¢2 105
1
