CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

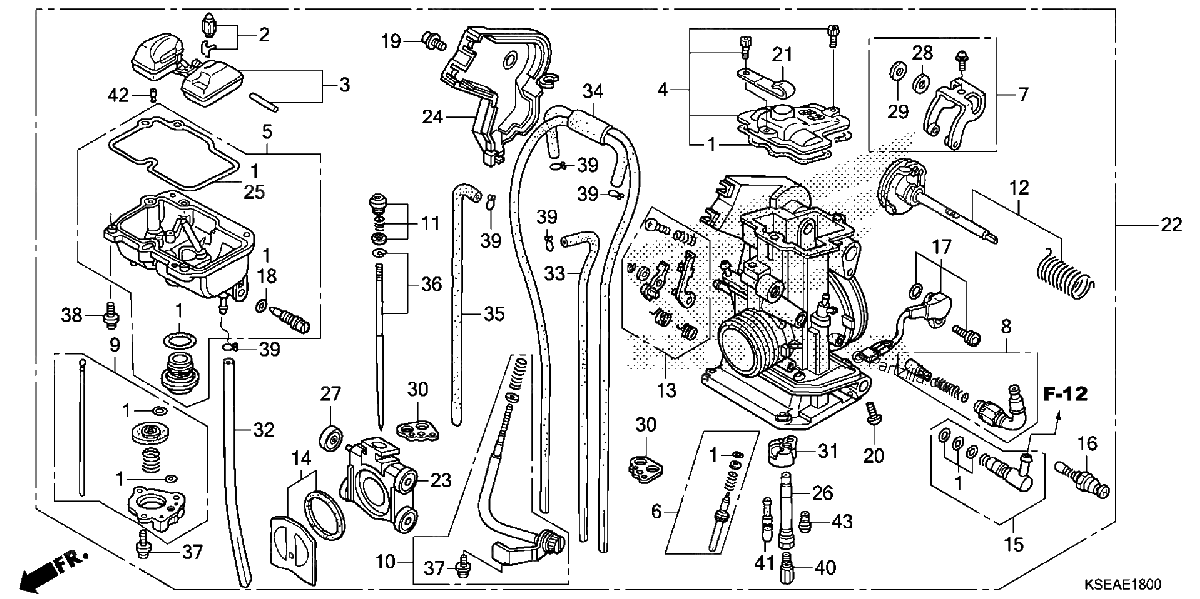

Diagrama de CARBURETOR

Repuestos

#1
16010-MEN-851
GASKET SET
$28.06¢14 030
1
#2
16011-KSE-671
VALVE SET, FLOAT
$19.73¢9 867
1
#3
16013-MEB-671
FLOAT SET
$32.58¢16 290
1
#4
16014-KSE-671
TOP SET
$49.69¢24 846
1
#5
16015-KSC-A11
CHAMBER SET, FLOAT
$100.08¢50 042
1
#6
16016-KSE-601
SCREW SET A
$31.51¢15 755
1
#7
16018-MEY-A11
ARM SET, LINK
$20.17¢10 085
1
#8
16019-MEB-671
START SET, HOT
$31.29¢15 646
1
#9
16021-KSE-A71
PUMP SET, DIAPHRAGM
$69.00¢34 500
1
#10
16028-KSE-A71
SCREW SET B
$49.84¢24 921
1
#11
16029-MEY-A11
SCREW SET, JET NEEDLE
$13.67¢6 837
1
#12
16032-KSE-A71
SHAFT SET, THROTTLE
$104.03¢52 014
1
#13
16033-KSE-A71
LEVER SET, PUMP
$33.74¢16 871
1
#14
16037-KSE-671
VALVE SET, FLOATING
$165.47¢82 737
1
#15
16038-MEB-671
JOINT SET, FUEL
$8.84¢4 422
1
#16
16046-MEB-671
VALVE SET, STARTER
$31.33¢15 663
1
#17
16060-KSE-671
SENSOR ASSY., THROTTLE
$142.07¢71 036
1
#18
16076-ND5-004
O-RING (1.3X4.3)
$2.94¢1 472
1
#19
16080-HP1-601
BOLT, COVER
$4.54¢2 271
1
#20
16083-MEB-671
SCREW, PAN
$1.79¢897
1
#21
16088-MEN-731
CLIP
$8.90¢4 451
1
#22
16100-KSE-A72
CARBURETOR ASSY. (FCR08D A)
$1376.91¢688 453
1
#23
16112-KSE-601
VALVE, THROTTLE
$291.44¢145 722
1
#24
16157-MEN-A01
COVER, THROTTLE
$27.14¢13 570
1
#25
16163-MEB-671
GASKET, FLOAT CHAMBER
$14.04¢7 021
1
#26
16165-MEY-A11
HOLDER, NEEDLE JET
$14.12¢7 061
1
#27
16172-MEB-671
ROLLER
$9.14¢4 571
1
#28
16177-MEB-671
WASHER, PLAIN (PO)
$1.86¢932
1
#29
16178-MEB-671
WASHER, PLAIN (SUS)
$1.66¢828
1
#30
16178-MEN-851
BINDER
$5.86¢2 932
1
#31
16185-MEN-671
PLATE, BUFFER
$12.03¢6 015
1
#32
16196-KSE-E31
TUBE, OVERFLOW
$14.39¢7 193
1
#33
16197-MEB-671
TUBE, AIR VENT
$7.07¢3 536
1
#34
16198-KSE-671
TUBE, AIR VENT
$14.60¢7 302
1
#35
16199-MEB-671
TUBE, AIR VENT
$7.07¢3 536
1
#36
16204-KSE-601
NEEDLE SET, JET (NMQT)
$37.06¢18 532
1
#37
93892-04008-08
SCREW-WASHER (4X8)
$1.36¢678
1
#37
93892-04008-18
SCREW-WASHER (4X8)
$1.36¢678
1
#38
93892-04014-08
SCREW-WASHER (4X14)
$1.24¢621
1
#38
93892-04014-18
SCREW-WASHER (4X14)
$1.24¢621
1
#39
95002-02079
CLIP, TUBE (B7)
$1.41¢707
1
#40
99101-357-1400
JET, MAIN (#140)
$9.20¢4 600
1
#41
99103-440-0380
JET, SLOW (#38)
$14.09¢7 044
1
#41
99103-KA3-0380
JET, SLOW (#38)
$14.09¢7 044
1
#41
99103-KBA-0380
JET, SLOW (#38)
$14.09¢7 044
1
#42
99108-KRN-0700
JET, LEAK (#70)
$15.25¢7 624
1
#42
99108-KRN-0750
JET, LEAK (#75)
$15.18¢7 590
1
#42
99108-KSC-0650
JET, LEAK (#65)
$9.56¢4 778
1
#42
99108-KSE-0600
JET, LEAK (#60)
$9.88¢4 939
1
#42
99108-MEB-0550
JET, LEAK (#55)
$10.26¢5 129
1
#43
99112-KRN-0680
JET, BY-STARTER (#68)
$12.91¢6 457
1
