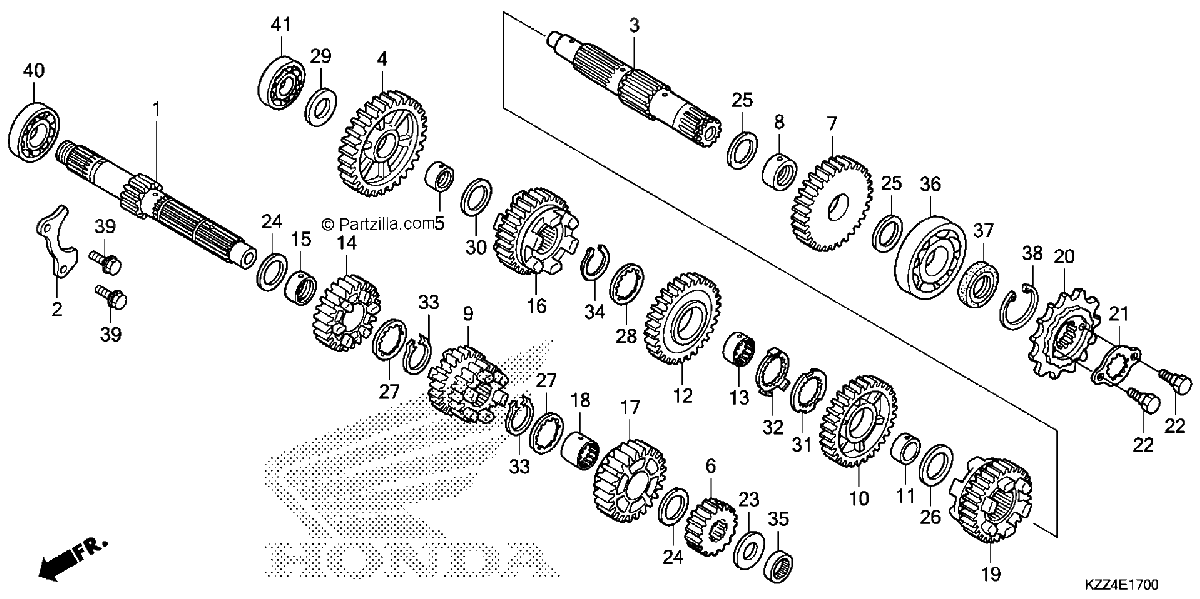

TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MAINSHAFT (12T)
$42.05¢21 025
#2
PLATE, BEARING SETTING
$3.01¢1 506
#3
COUNTERSHAFT
$50.06¢25 031
#4
GEAR, COUNTERSHAFT LOW (40T)
$32.73¢16 363
#5
COLLAR (20X23X10.5)
$16.95¢8 475
#6
GEAR, MAINSHAFT SECOND (17T)
$11.65¢5 825
#7
GEAR, COUNTERSHAFT SECOND (36T)
$25.54¢12 769
#8
COLLAR (22X25X11)
$12.81¢6 406
#9
GEAR, MAINSHAFT THIRD FOURTH (21T/23T)
$54.36¢27 181
#10
GEAR, COUNTERSHAFT THIRD (33T)
$28.75¢14 375
#11
COLLAR (25X28X10)
$13.61¢6 806
#12
GEAR, COUNTERSHAFT FOURTH (30T)
$27.73¢13 863
#13
COLLAR, SPLINE (25X10)
$20.13¢10 063
#14
GEAR, MAINSHAFT FIFTH (26T)
$28.30¢14 150
#15
BUSH (20X23X17.4)
$38.94¢19 469
#16
GEAR, COUNTERSHAFT FIFTH (29T)
$46.22¢23 112
#17
GEAR, MAINSHAFT SIXTH (27T)
$31.13¢15 563
#18
COLLAR, SPLINE (23MM)
$26.99¢13 494
#19
GEAR, COUNTERSHAFT SIXTH (26T)
$50.20¢25 100
#20
SPROCKET, DRIVE (14T)
$42.64¢21 319
#21
PLATE, FIXING
$3.30¢1 650
#22
BOLT, DRIVE SPROCKET FIXING
$5.59¢2 794
#23
WASHER (17X26X1.0)
$1.60¢800
#24
WASHER (20X27X1.0)
$1.64¢819
#25
WASHER (22X29X1.0)
$1.60¢800
#26
WASHER (25X32X1.0)
$1.64¢819
#27
WASHER, SPLINE (20X26X1.6)
$0.83¢413
#28
WASHER, SPLINE (25X31X1.0)
$1.38¢688
#29
WASHER (17X28X1.0)
$1.64¢819
#30
WASHER B, THRUST (20MM)
$1.02¢513
#31
WASHER, SPLINE (25X42X1.6)
$1.90¢950
#32
WASHER, LOCK (25MM)
$40.38¢20 188
#33
CIRCLIP, OUTER (20MM)
$10.54¢5 269
#34
CIRCLIP (OUTER) (25MM)
$8.85¢4 425
#35
BEARING, NEEDLE (17X27X13) (NTN)
$24.36¢12 181
#36
BEARING, RADIAL BALL (63/22)
$24.66¢12 331
#37
OIL SEAL (22X36X5)
$3.65¢1 825
#38
CIRCLIP, INNER (37MM)
$2.81¢1 406
#39
BOLT, FLANGE (6X14)
$1.23¢613
#40
BEARING, RADIAL BALL (6304)
$16.71¢8 356
#41
BEARING, RADIAL BALL (6203U)
$21.74¢10 869
