FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

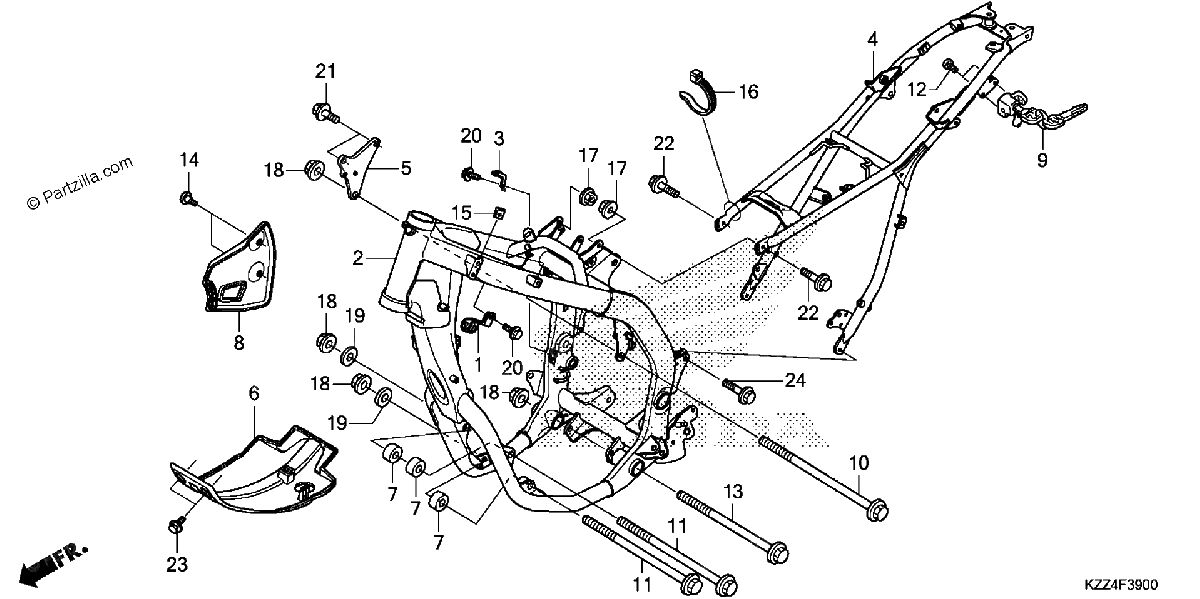

Diagrama de FRAME

Repuestos

#1
32111-KZZ-900
CLAMP, HARNESS
$14.60¢7 302
1
#2
50100-KZZ-900ZB
FRAME *NH146M* (ACCURATE SILVER METALLIC)
$658.14¢329 072
1
#3
50175-KZZ-900
STAY, STOP SWITCH
$2.06¢1 029
1
#4
50200-KZZ-900ZB
FRAME, RR. *NH146M* (ACCURATE SILVER METALLIC)
$232.62¢116 311
1
#5
50351-KZZ-900
PLATE, R. ENGINE HANGER
$10.33¢5 164
1
#6
50355-KZZ-900
PLATE, SKID
$22.41¢11 207
1
#7
50361-KZZ-900
COLLAR, ENGINE HANGER
$2.96¢1 478
1
#8
50615-KZZ-900
GUARD, HEEL
$5.99¢2 996
1
#9
50710-KCZ-J71
HOLDER ASSY., HELMET
$47.62¢23 811
1
#10
90102-KZZ-900
BOLT, FLANGE (10X150)
$3.90¢1 949
1
#11
90104-HP6-A00
BOLT, FLANGE (10X140)
$9.56¢4 778
1
#12
90105-KGA-B00
BOLT, ONE-WAY (6X10)
$2.86¢1 432
1
#13
90127-KR3-000
BOLT, FLANGE (10X130)
$10.26¢5 129
1
#14
90133-KPP-T00
SCREW, PAN (6X14)
$1.51¢753
1
#15
90201-KPR-901
NUT, CLIP (6MM)
$2.21¢1 104
1
#17
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#18
94050-10000
NUT, FLANGE (10MM)
$1.75¢874
1
#19
94101-10800
WASHER, PLAIN (10MM)
$2.22¢1 110
1
#20
95701-06012-00
BOLT, FLANGE (6X12)
$1.92¢960
1
#21
95701-08016-00
BOLT, FLANGE (8X16)
$2.13¢1 064
1
#22
95701-08018-00
BOLT, FLANGE (8X18)
$2.13¢1 064
1
#23
96300-06010-08
BOLT, FLANGE (6X10)
$2.04¢1 018
1
#24
96300-08020-00
BOLT, FLANGE (8X20)
$1.86¢932
1
