CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

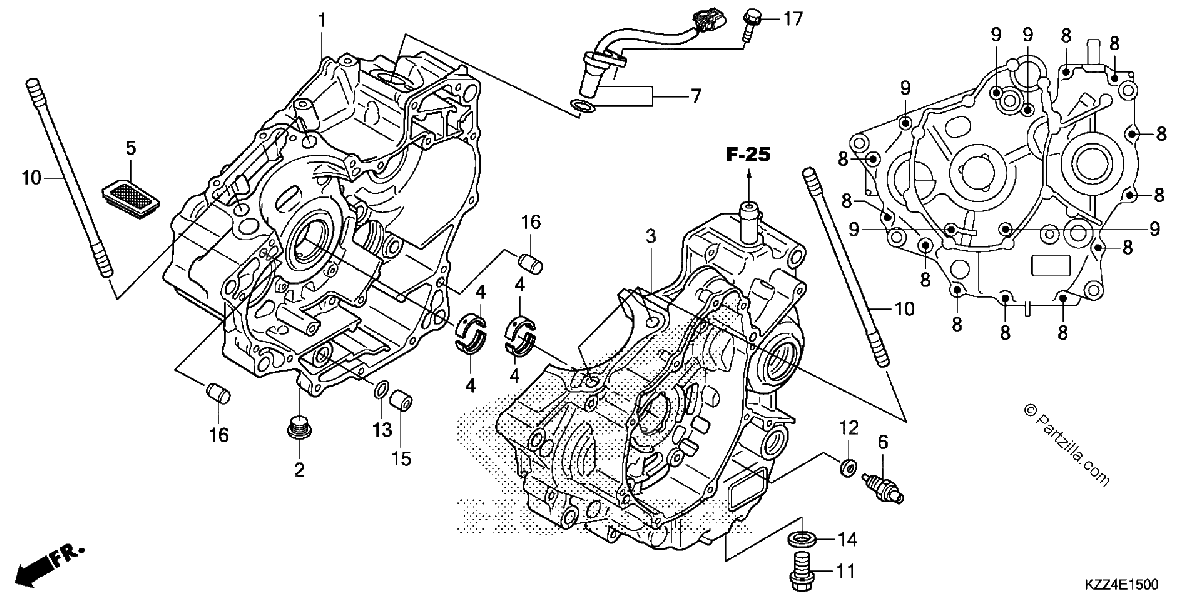

Diagrama de CRANKCASE

Repuestos

#1
11100-KZZ-900
CRANKCASE, R.
$212.70¢106 350
1
#2
11107-KYJ-900
BOLT, SEALING (16MM)
$4.06¢2 031
1
#3
11200-KZZ-900
CRANKCASE, L.
$220.51¢110 256
1
#4
13312-KYJ-901
BEARING A, CRANKSHAFT (BLUE)
$15.24¢7 619
1
#4
13313-KYJ-901
BEARING B, CRANKSHAFT (BLACK)
$15.24¢7 619
1
#4
13314-KYJ-901
BEARING C, CRANKSHAFT (BROWN)
$17.91¢8 956
1
#4
13315-KYJ-305
BEARING D, CRANKSHAFT (OVER SIZE) (RED)
$15.24¢7 619
1
#4
13316-KYJ-305
BEARING E, CRANKSHAFT (OVER SIZE) (GREEN)
$17.13¢8 563
1
#4
13317-KYJ-305
BEARING F, CRANKSHAFT (OVER SIZE) (YELLOW)
$14.56¢7 281
1
#4
13318-KYJ-305
BEARING G, CRANKSHAFT (OVER SIZE) (PINK)
$17.13¢8 563
1
#5
15421-KYJ-900
SCREEN, OIL FILTER
$3.65¢1 825
1
#6
35600-HA0-003
SWITCH ASSY., NEUTRAL (TOYO)
$22.11¢11 056
1
#7
37700-KZZ-901
SENSOR ASSY., SPEED
$59.10¢29 550
1
#8
90014-KYJ-900
BOLT, FLANGE (6X40)
$0.80¢400
1
#9
90016-KYJ-900
BOLT, FLANGE (6X70) (NSHF)
$1.11¢556
1
#10
90032-KYJ-900
BOLT, STUD (10X178)
$3.69¢1 844
1
#11
90061-KYJ-900
BOLT, DRAIN PLUG (12MM)
$1.23¢613
1
#12
90443-KR0-000
WASHER, NEUTRAL SWITCH
$1.72¢862
1
#13
91301-KYJ-901
O-RING (11.8X1.9)
$0.58¢288
1
#14
94109-12000
WASHER, DRAIN PLUG (12MM)
$1.57¢788
1
#15
94301-12160
PIN A, DOWEL (12X16)
$2.92¢1 463
1
#16
94302-08140
PIN B, DOWEL (8X14)
$2.75¢1 375
1
#17
95701-06018-00
BOLT, FLANGE (6X18)
$2.09¢1 044
1
