HANDLEBAR TOP BRIDGE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

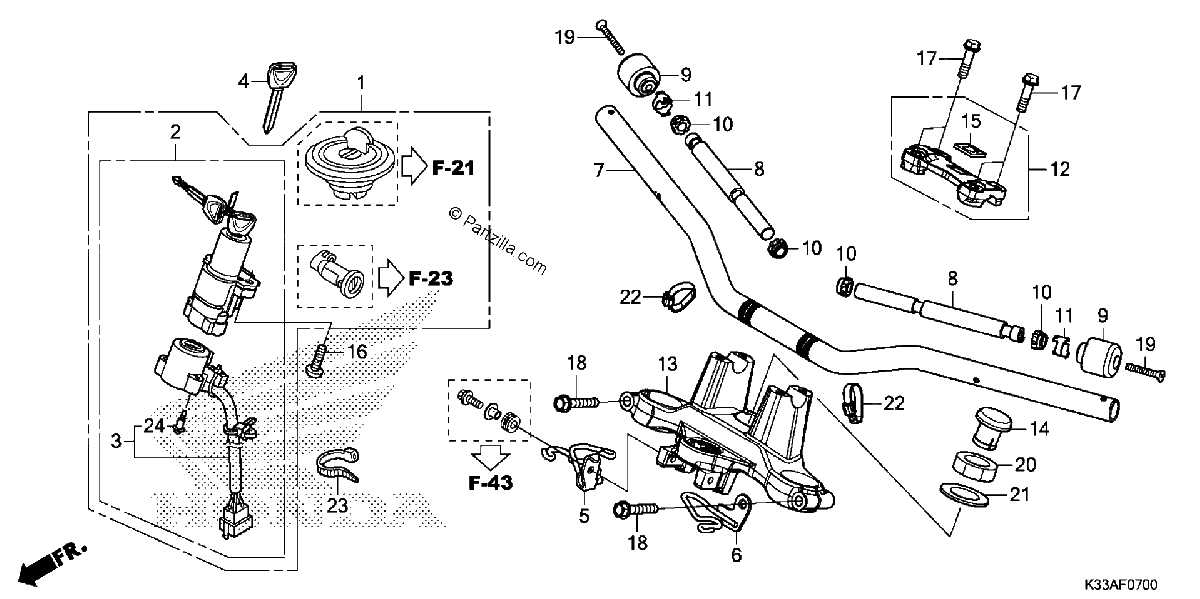

Diagrama de HANDLEBAR TOP BRIDGE

Repuestos

#1
35010-K33-700
LOCK SET
$250.60¢125 300
1
#2
35100-K33-701
SWITCH ASSY., COMBINATION LOCK (MSDS)
$198.52¢99 262
1
#3
35101-K33-701
BASE, CONTACT
$107.07¢53 537
1
#4
35121-MAS-G01
KEY, BLANK
$14.79¢7 394
1
#5
45158-K33-700
GUIDE, FR. BRAKE HOSE
$25.71¢12 856
1
#6
45159-K33-700
GUIDE, CLUTCH CABLE
$15.71¢7 856
1
#7
53110-K33-305
HANDLEBAR (COO)
$45.20¢22 600
1
#8
53104-KYJ-900
WEIGHT B, HANDLEBAR
$8.10¢4 050
1
#9
53104-MGZ-J00
WEIGHT, HANDLEBAR
$12.30¢6 150
1
#10
53107-MY1-000
RUBBER B, HANDLE WEIGHT
$8.49¢4 244
1
#11
53108-KR3-770
RING, HANDLE WEIGHT SNAP
$7.55¢3 775
1
#12
53130-MGS-D30ZB
HOLDER ASSY., HANDLE (UPPER) *NH303M* (MAT AXIS GRAY METALLIC)
$48.71¢24 356
1
#13
53230-K33-700
BRIDGE, FORK TOP
$119.71¢59 856
1
#14
53232-KYJ-900
CAP, STEERING STEM
$1.93¢963
1
#15
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.39¢2 194
1
#16
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.65¢1 825
1
#17
90111-362-000
BOLT, FLANGE (8X36)
$5.83¢2 913
1
#18
90140-MEE-D00
BOLT, FLANGE (8X40)
$2.38¢1 188
1
#19
90191-KYJ-900
SCREW, OVAL (6X50)
$1.27¢638
1
#20
90304-KGA-900
NUT, STEERING STEM
$3.69¢1 844
1
#21
90503-KGA-900
WASHER, STEERING STEM
$1.93¢963
1
#22
90650-KW3-000
BAND, WIRE
$5.42¢2 713
1
#23
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.65¢1 825
1
#24
91059-KY2-711
SCREW, TAPPING (3X16)
$3.65¢1 825
1
