FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

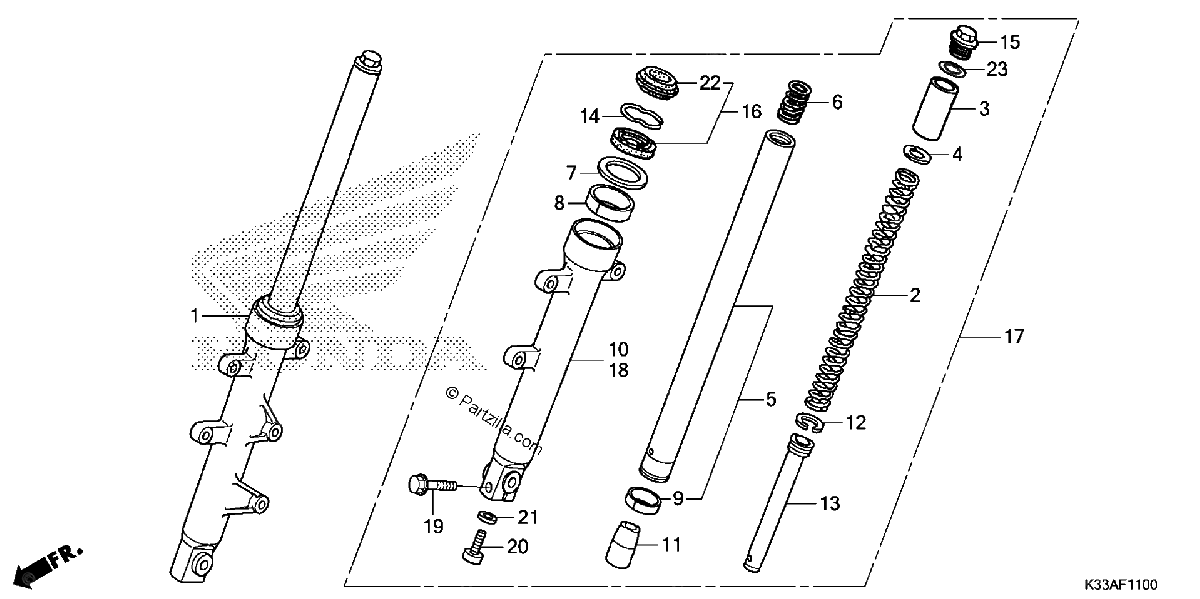

Diagrama de FRONT FORK

Repuestos

#1
51400-K33-305
FORK ASSY., R. FR. (COO) (SHOWA)
$301.54¢150 771
1
#2
51401-K33-701
SPRING, FR. FORK
$35.89¢17 946
1
#3
51402-K33-701
COLLAR, SPRING
$1.24¢621
1
#4
51403-ME4-003
SEAT, SPRING
$8.46¢4 232
1
#5
51410-K33-701
PIPE, FR. FORK
$112.79¢56 396
1
#6
51411-MG1-003
SPRING, Front FORK REBOUND
$7.38¢3 691
1
#7
51412-461-003
RING, BACK-UP
$7.85¢3 927
1
#8
51414-KFB-901
BUSH, GUIDE
$7.76¢3 881
1
#9
51415-KFB-901
BUSH, SLIDER
$9.58¢4 790
1
#10
51420-KYJ-921
CASE, R. (LOWER)
$121.84¢60 921
1
#11
51432-KAZ-003
PIECE, OIL LOCK
$11.05¢5 526
1
#12
51437-ML7-691
RING, PISTON
$9.37¢4 686
1
#13
51440-KYJ-901
PIPE, SEAT
$15.65¢7 826
1
#14
51447-KR6-003
RING, OIL SEAL STOPPER
$4.21¢2 105
1
#15
51450-KAS-901
BOLT, Front FORK
$27.00¢13 501
1
#16
51490-KWL-003
SEAL SET, FR. FORK
$23.10¢11 552
1
#17
51500-K33-305
FORK ASSY., L. FR. (COO) (SHOWA)
$288.82¢144 411
1
#18
51520-KYJ-921
CASE, Left (LOWER)
$108.72¢54 361
1
#19
90109-MR7-000
BOLT, FLANGE (8X45)
$5.51¢2 754
1
#20
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
1
#21
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
1
#22
91254-KAZ-003
DUST SEAL
$18.16¢9 079
1
#23
91357-ME4-003
O-RING (27.7X3.5)
$3.74¢1 869
1
