MUFFLER S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

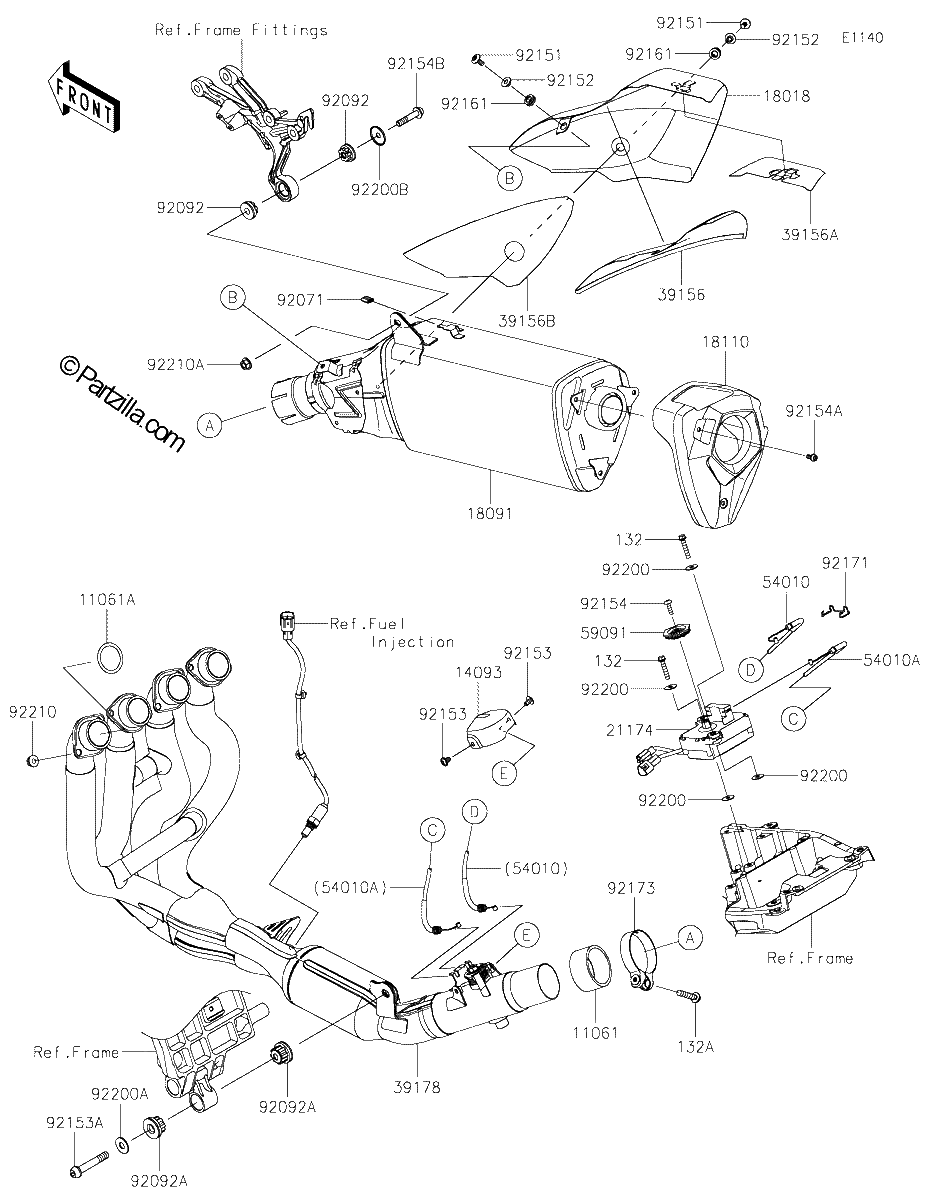

Diagrama de MUFFLER S

Repuestos

#132
132BA0630
BOLT-FLANGED-SMALL,6X30
$2.44¢1 219
1
#132A
132BC0840
BOLT FLANGED SMALL,8X40
$3.67¢1 838
1
#11061
11061-0980
GASKET,MUFFLER JOINT
$35.84¢17 919
1
#11061A
11061-1387
GASKET,EXHAUST PIPE
$10.70¢5 350
1
#14093
14093-0975
COVER
$29.26¢14 631
1
#18018
18018-0631
PLATE-HEAT GUARD
$519.41¢259 706
1
#18091
18091-1245
BODY-COMP-MUFFLER
$2254.72¢1 127 363
1
#18110
18110-0217
BODY END-MUFFLER
$205.50¢102 750
1
#21174
21174-0009
MOTOR ELECTRIC
$430.91¢215 456
1
#39156
39156-2717
PAD
$19.19¢9 594
1
#39156B
39156-2732
PAD
$13.85¢6 925
1
#39156A
39156-2718
PAD
$10.48¢5 238
1
#39178
39178-0401
MANIFOLD COMP EXHAUST
$3073.45¢1 536 725
1
#54010
54010-0645
CABLE,OPEN
$108.81¢54 406
1
#54010A
54010-0646
CABLE,CLOSE
$115.78¢57 888
1
#59091
59091-0007
PULLEY
$24.45¢12 225
1
#92071
92071-1270
GROMMET
$8.35¢4 175
1
#92092
92092-0018
BUSHING RUBBER
$11.44¢5 719
1
#92092A
92092-1081
BUSHING RUBBER
$26.23¢13 113
1
#92151
92151-1654
BOLT,SOCKET,6X14
$1.63¢813
1
#92152
92152-2671
COLLAR
$10.75¢5 375
1
#92153A
92153-1837
BOLT,SOCKET,10X60
$13.46¢6 731
1
#92153
92153-1527
BOLT,SOCKET,6X10
$1.79¢894
1
#92154A
92154-1453
BOLT,SOCKET,6X12
$1.29¢644
1
#92154B
92154-2808
BOLT,SOCKET,8X40
$19.52¢9 763
1
#92154
92154-0217
BOLT,TORX,5X18
$3.83¢1 913
1
#92161
92161-0306
DAMPER
$5.56¢2 781
1
#92171
92171-0292
CLAMP
$11.43¢5 713
1
#92173
92173-0284
CLAMP,64.5MM
$39.56¢19 781
1
#92200A
92200-1377
WASHER,10.5X25X2.0
$4.16¢2 081
1
#92200B
92200-1919
WASHER
$4.79¢2 394
1
#92200
92200-0078
WASHER
$2.00¢1 000
1
#92210
92210-0076
NUT,8MM
$5.41¢2 706
1
#92210A
92210-0121
NUT,8MM
$2.11¢1 056
1
