FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

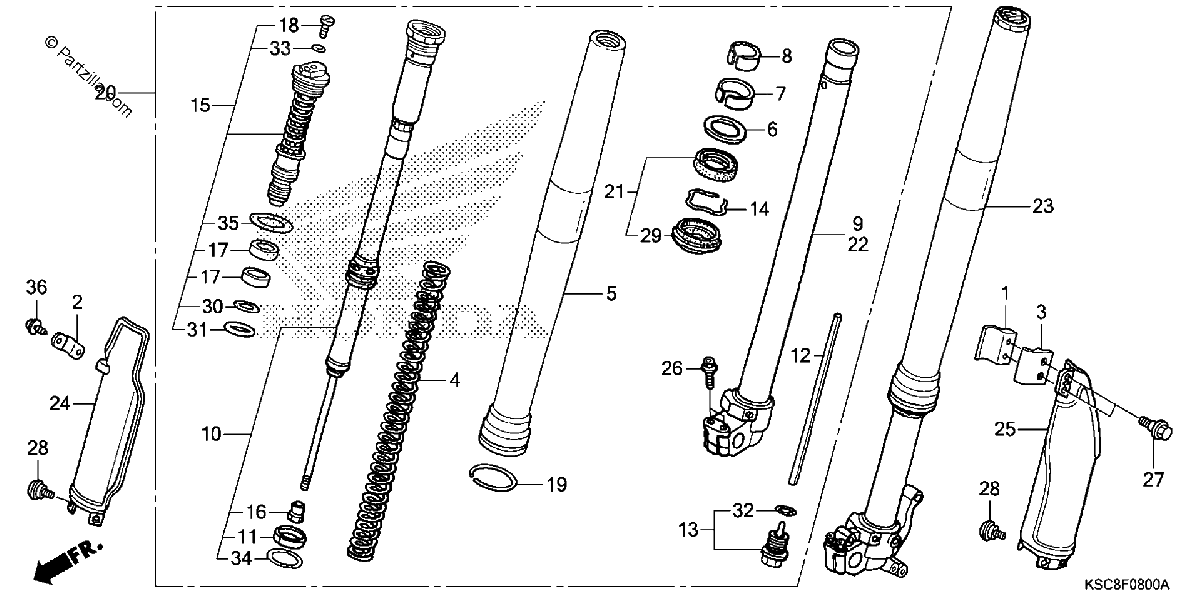

Diagrama de FRONT FORK

Repuestos

#001
45461-MEN-000
CLAMP A, FR. BRAKE HOSE
$7.08¢3 542
1
#1
45461-MEN-000
CLAMP A, FR. BRAKE HOSE
$7.08¢3 542
1
#2
45461-MEY-670
GUIDE, SPEEDOMETER CABLE
$12.21¢6 106
1
#002
45461-MEY-670
GUIDE, SPEEDOMETER CABLE
$12.21¢6 106
1
#3
45462-MEN-000
CLAMP B, FR. BRAKE HOSE
$5.22¢2 610
1
#003
45462-MEN-000
CLAMP B, FR. BRAKE HOSE
$5.22¢2 610
1
#004
51403-KSC-003
SPRING, FR. FORK (4.31N/MM,0.44KGF/MM) (SHOWA)
$116.13¢58 064
1
#4
51403-KSC-003
SPRING, FR. FORK (4.31N/MM,0.44KGF/MM) (SHOWA)
$116.13¢58 064
1
#004
51402-KSC-003
SPRING, FR. FORK (3.92N/MM,0.40KGF/MM) (SHOWA)
$116.13¢58 064
1
#4
51402-KSC-003
SPRING, FR. FORK (3.92N/MM,0.40KGF/MM) (SHOWA)
$116.13¢58 064
1
#4
51401-KSC-003
SPRING, Front FORK (4.12N/MM,0.42KGF/MM) (SHOWA)
$130.84¢65 418
1
#004
51401-KSC-003
SPRING, Front FORK (4.12N/MM,0.42KGF/MM) (SHOWA)
$130.84¢65 418
1
#5
51410-MEY-305
TUBE (OUTER) (COO)
$667.92¢333 960
1
#005
51410-MEY-305
TUBE (OUTER) (COO)
$667.92¢333 960
1
#006
51412-KZ3-B01
RING, BACK-UP
$10.89¢5 445
1
#6
51412-KZ3-B01
RING, BACK-UP
$10.89¢5 445
1
#7
51414-KZ3-B01
BUSH, GUIDE
$17.94¢8 970
1
#007
51414-KZ3-B01
BUSH, GUIDE
$17.94¢8 970
1
#8
51415-KZ3-B01
BUSH, SLIDER
$10.40¢5 198
1
#008
51415-KZ3-B01
BUSH, SLIDER
$10.40¢5 198
1
#009
51420-KSC-A01
PIPE, R. SLIDE
$508.85¢254 426
1
#9
51420-KSC-A01
PIPE, R. SLIDE
$508.85¢254 426
1
#10
51430-KSC-A01
DAMPER, Front.
$442.01¢221 007
1
#010
51430-KSC-A01
DAMPER, Front.
$442.01¢221 007
1
#11
51431-KZ3-B01
BUSH B, SLIDER
$10.40¢5 198
1
#011
51431-KZ3-B01
BUSH B, SLIDER
$10.40¢5 198
1
#12
51437-KZ3-J41
COLLAR, REBOUND NEEDLE
$10.58¢5 290
1
#012
51437-KZ3-J41
COLLAR, REBOUND NEEDLE
$10.58¢5 290
1
#013
51440-KSC-003
BOLT, CENTER
$34.48¢17 239
1
#13
51440-KSC-003
BOLT, CENTER
$34.48¢17 239
1
#014
51447-KZ3-003
RING, OIL SEAL STOPPER
$5.70¢2 852
1
#14
51447-KZ3-003
RING, OIL SEAL STOPPER
$5.70¢2 852
1
#015
51450-KSC-A01
BOLT ASSY., FR. FORK
$169.28¢84 640
1
#15
51450-KSC-A01
BOLT ASSY., FR. FORK
$169.28¢84 640
1
#16
51451-KZ3-B01
NUT, LOCK
$18.19¢9 096
1
#016
51451-KZ3-B01
NUT, LOCK
$18.19¢9 096
1
#017
51453-KZ3-B01
BUSH C, SLIDER
$7.29¢3 645
1
#17
51453-KZ3-B01
BUSH C, SLIDER
$7.29¢3 645
1
#18
51456-KZ3-J41
BOLT, PLUG
$6.92¢3 461
1
#018
51456-KZ3-J41
BOLT, PLUG
$6.92¢3 461
1
#019
51476-MEY-003
RING, WEAR
$5.46¢2 731
1
#19
51476-MEY-003
RING, WEAR
$5.46¢2 731
1
#020
51480-KSC-305
FORK SUB-ASSY., R. FR. (COO)
$1962.76¢981 381
1
#20
51480-KSC-305
FORK SUB-ASSY., R. FR. (COO)
$1962.76¢981 381
1
#21
51490-KSC-003
SEAL SET, FR. FORK
$25.73¢12 863
1
#021
51490-KSC-003
SEAL SET, FR. FORK
$25.73¢12 863
1
#022
51520-KSC-A01
PIPE, L. SLIDE
$508.85¢254 426
1
#22
51520-KSC-A01
PIPE, L. SLIDE
$508.85¢254 426
1
#23
51580-KSC-305
FORK SUB-Assembly., L Front. (COO)
$1962.76¢981 381
1
#023
51580-KSC-305
FORK SUB-Assembly., L Front. (COO)
$1962.76¢981 381
1
#24
51610-MEY-000ZA
PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL)
$56.73¢28 365
1
#024
51610-MEY-000ZA
PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL)
$56.73¢28 365
1
#025
51620-MEN-000ZA
PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL)
$56.50¢28 250
1
#25
51620-MEN-000ZA
PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL)
$56.50¢28 250
1
#26
90108-KZ4-J40
BOLT, FLANGE (8X40)
$2.53¢1 265
1
#026
90108-KZ4-J40
BOLT, FLANGE (8X40)
$2.53¢1 265
1
#027
90113-KZ3-000
BOLT, FLANGE (6MM)
$3.36¢1 679
1
#27
90113-KZ3-000
BOLT, FLANGE (6MM)
$3.36¢1 679
1
#28
90113-MAC-780
BOLT, PROTECTOR
$3.93¢1 967
1
#028
90113-MAC-780
BOLT, PROTECTOR
$3.93¢1 967
1
#29
91254-KSC-003
DUST SEAL
$13.03¢6 515
1
#029
91254-KSC-003
DUST SEAL
$13.03¢6 515
1
#30
91256-KZ3-A71
O-RING (26.7X3.5)
$3.45¢1 725
1
#030
91256-KZ3-A71
O-RING (26.7X3.5)
$3.45¢1 725
1
#031
91257-MEB-751
O-RING (27.7X1.9)
$2.69¢1 346
1
#31
91257-MEB-751
O-RING (27.7X1.9)
$2.69¢1 346
1
#032
91258-KZ3-B01
O-RING (18.8X1.9)
$3.22¢1 610
1
#32
91258-KZ3-B01
O-RING (18.8X1.9)
$3.22¢1 610
1
#033
91301-KZ3-711
O-RING (3.5X1.5)
$3.21¢1 604
1
#33
91301-KZ3-711
O-RING (3.5X1.5)
$3.21¢1 604
1
#034
91356-KZ3-003
O-RING (44.7X2.4)
$4.38¢2 191
1
#34
91356-KZ3-003
O-RING (44.7X2.4)
$4.38¢2 191
1
#35
91356-MW0-003
O-RING (37.2X2.4) (SHOWA)
$3.36¢1 679
1
#035
91356-MW0-003
O-RING (37.2X2.4) (SHOWA)
$3.36¢1 679
1
#36
93913-14110
SCREW, TAPPING (4X10)
$0.76¢380
1
#036
93913-14110
SCREW, TAPPING (4X10)
$0.76¢380
1
