MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

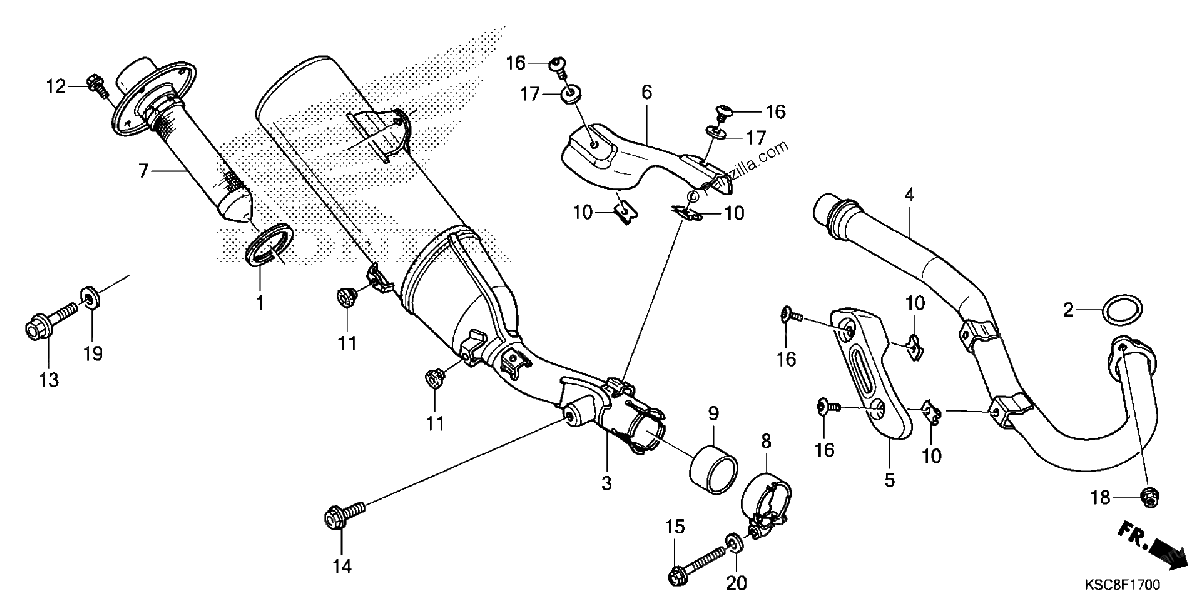

Diagrama de MUFFLER

Repuestos

#001
18291-KPS-900
GASKET, EX. MUFFLER
$9.69¢4 844
1
#1
18291-KPS-900
GASKET, EX. MUFFLER
$9.69¢4 844
1
#002
18291-MM5-860
GASKET, EX. PIPE
$6.26¢3 131
1
#2
18291-MM5-860
GASKET, EX. PIPE
$6.26¢3 131
1
#3
18310-KSC-305
MUFFLER (COO)
$1428.65¢714 325
1
#003
18310-KSC-305
MUFFLER (COO)
$1428.65¢714 325
1
#4
18320-KSC-000
PIPE, EX.
$375.64¢187 819
1
#004
18320-KSC-000
PIPE, EX.
$375.64¢187 819
1
#005
18323-KSC-A30
PROTECTOR, EX. PIPE
$96.48¢48 238
1
#5
18323-KSC-A30
PROTECTOR, EX. PIPE
$96.48¢48 238
1
#006
18324-KRN-000
PROTECTOR, MUFFLER
$108.28¢54 138
1
#6
18324-KRN-000
PROTECTOR, MUFFLER
$108.28¢54 138
1
#007
18340-KSC-305
ARRESTER, MUFFLER (COO)
$369.10¢184 550
1
#7
18340-KSC-305
ARRESTER, MUFFLER (COO)
$369.10¢184 550
1
#8
18373-KE8-000
BAND, Right MUFFLER
$33.25¢16 625
1
#008
18373-KE8-000
BAND, Right MUFFLER
$33.25¢16 625
1
#8
18374-MG7-701
BAND, L MUFFLER
$33.25¢16 625
1
#008
18374-MG7-701
BAND, L MUFFLER
$33.25¢16 625
1
#9
18392-MK4-000
GASKET, MUFFLER
$15.97¢7 988
1
#009
18392-MK4-000
GASKET, MUFFLER
$15.97¢7 988
1
#010
19508-KA3-710
NUT, SPRING (6MM)
$6.95¢3 475
1
#10
19508-KA3-710
NUT, SPRING (6MM)
$6.95¢3 475
1
#11
83512-KA4-700
RUBBER, SIDE COVER
$5.55¢2 775
1
#011
83512-KA4-700
RUBBER, SIDE COVER
$5.55¢2 775
1
#12
90101-KCE-000
BOLT, FLANGE (6X10)
$2.09¢1 044
1
#012
96001-06010-07
BOLT, FLANGE (6X10)
$2.09¢1 044
1
#12
96001-06010-07
BOLT, FLANGE (6X10)
$2.09¢1 044
1
#012
90101-KCE-000
BOLT, FLANGE (6X10)
$2.09¢1 044
1
#013
90101-KZ3-J50
BOLT, FLANGE (8X24)
$3.43¢1 713
1
#13
90101-KZ3-J50
BOLT, FLANGE (8X24)
$3.43¢1 713
1
#014
90123-KZ4-J40
BOLT, FLANGE (8X18)
$2.54¢1 269
1
#14
90123-KZ4-J40
BOLT, FLANGE (8X18)
$2.54¢1 269
1
#015
90124-KZ4-J40
BOLT, FLANGE (8X35)
$2.91¢1 456
1
#15
90124-KZ4-J40
BOLT, FLANGE (8X35)
$2.91¢1 456
1
#016
90170-MEB-670
BOLT, SPECIAL (6MM)
$2.31¢1 156
1
#16
90170-MEB-670
BOLT, SPECIAL (6MM)
$2.31¢1 156
1
#17
90406-KV3-780
WASHER (6MM)
$3.11¢1 556
1
#017
90406-KV3-780
WASHER (6MM)
$3.11¢1 556
1
#18
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#018
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#019
94101-08000
WASHER, PLAIN (8MM)
$1.06¢531
1
#19
94101-08000
WASHER, PLAIN (8MM)
$1.06¢531
1
#20
94102-08800
WASHER, PLAIN (8MM)
$1.21¢606
1
#020
94102-08800
WASHER, PLAIN (8MM)
$1.21¢606
1
