FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

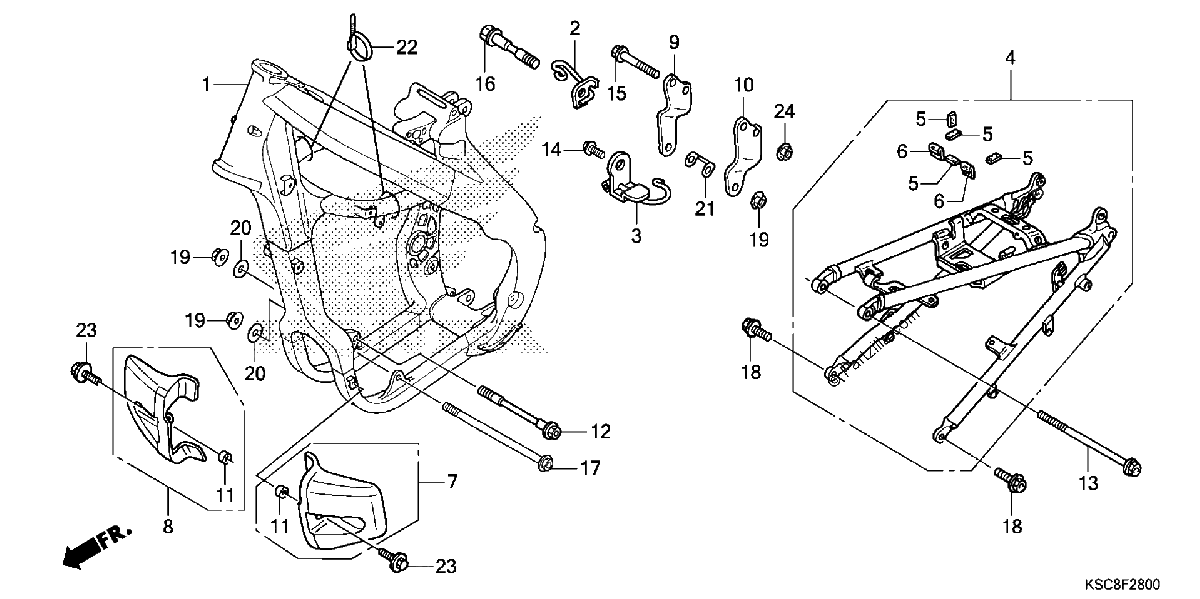

Diagrama de FRAME

Repuestos

#1
50100-KSC-A10
FRAME
$1943.48¢971 738
1
#001
50100-KSC-A10
FRAME
$1943.48¢971 738
1
#2
50170-KSC-A20
GUIDE, CLUTCH CABLE
$13.82¢6 911
1
#002
50170-KSC-A20
GUIDE, CLUTCH CABLE
$13.82¢6 911
1
#003
50197-KRN-000
CLIP, FUEL TUBE
$6.34¢3 168
1
#3
50197-KRN-000
CLIP, FUEL TUBE
$6.34¢3 168
1
#004
50200-KSC-730
FRAME, RR.
$840.76¢420 383
1
#4
50200-KSC-730
FRAME, RR.
$840.76¢420 383
1
#005
50283-KSC-300
RUBBER, BATTERY
$1.60¢799
1
#5
50283-KSC-300
RUBBER, BATTERY
$1.60¢799
1
#006
50283-MR7-300
RUBBER, SEAT RAIL
$3.36¢1 679
1
#6
50283-MR7-300
RUBBER, SEAT RAIL
$3.36¢1 679
1
#7
50360-KRN-A10
GUARD, L ENGINE
$17.91¢8 953
1
#007
50360-KRN-A10
GUARD, L ENGINE
$17.91¢8 953
1
#008
50370-KSC-000
GUARD, R. ENGINE
$9.99¢4 997
1
#8
50370-KSC-000
GUARD, R. ENGINE
$9.99¢4 997
1
#9
50407-KRN-730
BRACKET, Right HEAD HANGER
$26.43¢13 214
1
#009
50407-KRN-730
BRACKET, Right HEAD HANGER
$26.43¢13 214
1
#10
50408-KRN-730
BRACKET, L HEAD HANGER
$16.12¢8 061
1
#010
50408-KRN-730
BRACKET, L HEAD HANGER
$16.12¢8 061
1
#011
52156-353-300
COLLAR (6X4)
$7.06¢3 530
1
#11
52156-353-300
COLLAR (6X4)
$7.06¢3 530
1
#12
90101-KSC-000
BOLT, FLANGE (10X117)
$9.14¢4 571
1
#012
90101-KSC-000
BOLT, FLANGE (10X117)
$9.14¢4 571
1
#013
90105-KRN-000
BOLT, FLANGE (8X125)
$5.60¢2 800
1
#13
90105-KRN-000
BOLT, FLANGE (8X125)
$5.60¢2 800
1
#14
90106-KRN-000
BOLT, FLANGE (5X12)
$1.70¢851
1
#014
90106-KRN-000
BOLT, FLANGE (5X12)
$1.70¢851
1
#15
90107-KRN-000
BOLT, FLANGE (8X55)
$2.92¢1 461
1
#015
90107-KRN-000
BOLT, FLANGE (8X55)
$2.92¢1 461
1
#016
90109-KSC-000
BOLT, FLANGE (10X58)
$8.05¢4 025
1
#16
90109-KSC-000
BOLT, FLANGE (10X58)
$8.05¢4 025
1
#17
90116-KW3-000
BOLT, FLANGE (10X138)
$16.28¢8 142
1
#017
90116-KW3-000
BOLT, FLANGE (10X138)
$16.28¢8 142
1
#18
90122-KRN-000
BOLT, FLANGE (10X26)
$2.92¢1 461
1
#018
90122-KRN-000
BOLT, FLANGE (10X26)
$2.92¢1 461
1
#019
90302-KZ3-J40
NUT, FLANGE (10MM)
$3.22¢1 610
1
#19
90302-KZ3-J40
NUT, FLANGE (10MM)
$3.22¢1 610
1
#020
90410-HC4-000
WASHER (10MM)
$4.25¢2 128
1
#20
90410-HC4-000
WASHER (10MM)
$4.25¢2 128
1
#21
90511-KRN-000
WASHER, HEAD HANGER PLATE
$6.24¢3 122
1
#021
90511-KRN-000
WASHER, HEAD HANGER PLATE
$6.24¢3 122
1
#022
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.36¢1 679
1
#22
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.36¢1 679
1
#023
93404-06014-00
BOLT-WASHER (6X14)
$1.12¢558
1
#23
93404-06014-00
BOLT-WASHER (6X14)
$1.12¢558
1
#24
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#024
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
