RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

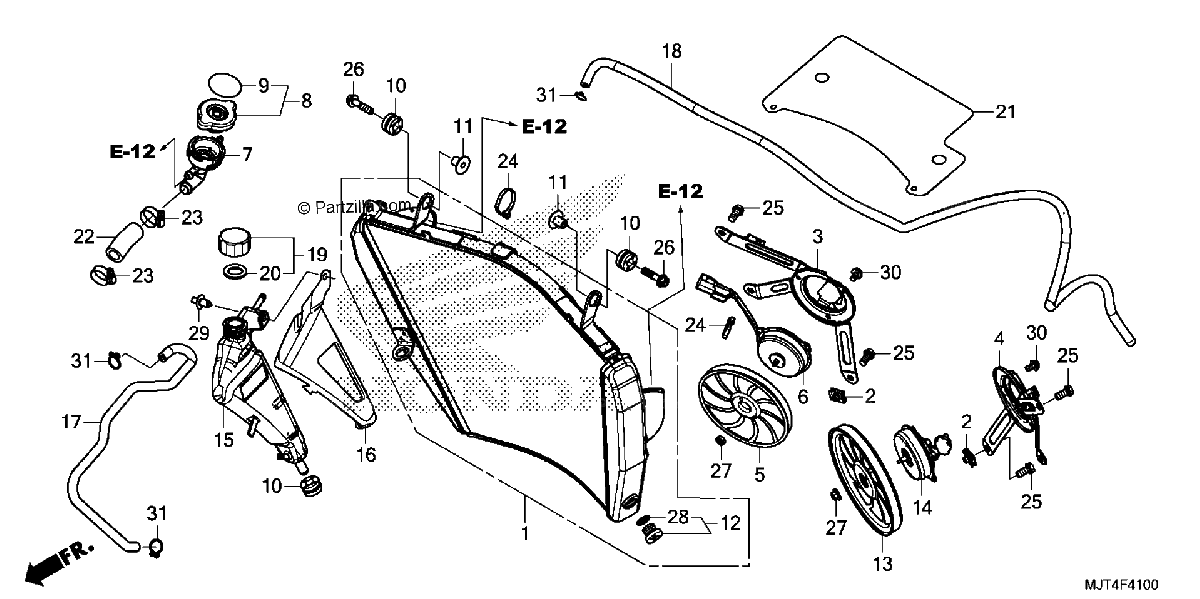

Diagrama de RADIATOR

Repuestos

#1
19010-MJT-E01
RADIATOR (TOYO)
$1355.91¢677 954
1
#2
19014-KEA-003
NUT, SETTING (6MM)
$3.45¢1 725
1
#3
19015-MJT-E01
SHROUD, R.
$49.71¢24 857
1
#4
19016-MJT-E01
SHROUD, L.
$49.71¢24 857
1
#5
19020-KVZ-631
FAN, COOLING
$31.31¢15 657
1
#6
19030-MJT-E01
MOTOR ASSY., R. FAN
$265.24¢132 618
1
#7
19035-MFL-003
NECK, FILLER
$20.84¢10 419
1
#8
19037-GEE-710
CAP, RADIATOR
$32.35¢16 175
1
#9
19046-PAA-A00
LABEL, RADIATOR CAP
$3.36¢1 679
1
#10
19051-KA3-830
RUBBER, RADIATOR MOUNTING
$3.69¢1 846
1
#11
19052-MAC-680
COLLAR, RADIATOR MOUNTING
$5.73¢2 864
1
#12
19070-MEC-003
PETCOCK ASSY., DRAIN
$11.91¢5 957
1
#13
19070-MFL-003
FAN, COOLING
$40.10¢20 050
1
#14
19080-MFL-003
MOTOR ASSY., FAN
$232.69¢116 345
1
#15
19101-MJT-E00
TANK, RADIATOR RESERVE
$480.34¢240 172
1
#16
19105-MJT-E00ZA
COVER, RESERVE TANK *TCLEAR* (PAINT) (CLEAR)
$1369.05¢684 526
1
#17
19103-MJT-E00
TUBE, RESERVE TANK
$55.07¢27 537
1
#18
19104-MJT-E00
TUBE, RESERVE TANK BREATHER
$20.83¢10 413
1
#19
19105-MG8-000
CAP ASSY., RESERVE TANK
$13.54¢6 768
1
#20
19107-MG8-000
GASKET, RESERVE TANK
$5.46¢2 731
1
#21
19127-MJT-E00
RUBBER, HEAT GUARD
$70.66¢35 328
1
#22
19504-MJT-E00
HOSE, FILLER NECK
$7.99¢3 996
1
#23
19505-KS6-700
CLAMP A, WATER HOSE
$13.74¢6 871
1
#24
35701-MG9-950
BAND (BLACK 3.5X140)
$2.36¢1 179
1
#25
90101-MEN-A60
BOLT (6X12)
$2.60¢1 299
1
#26
90129-MJT-E00
BOLT, FLANGE (6X25) (SH)
$116.62¢58 311
1
#27
90315-MFL-003
NUT, FLANGE (3MM)
$2.75¢1 374
1
#28
91353-MEC-003
O-RING (9.8X1.9)
$3.82¢1 909
1
#29
91505-ST7-003ZA
CLIP, COWL TOP *NH167L* (GRAPHITE BLACK)
$6.61¢3 306
1
#30
93893-04008-07
SCREW-WASHER (4X8)
$0.86¢431
1
#31
95002-02100
CLIP, TUBE (B10)
$2.24¢1 121
1
