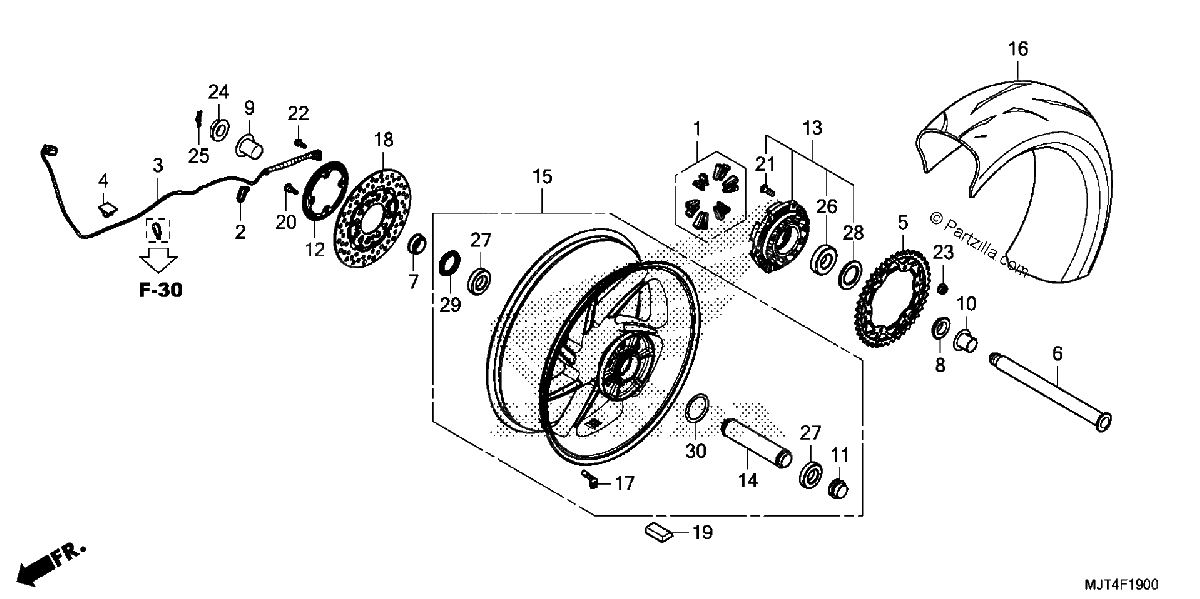

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER SET, WHEEL
$248.65¢124 325
#2
BAND (BLACK 3.5X140)
$2.56¢1 281
#3
SENSOR, RR. WHEEL SPEED
$180.78¢90 388
#4
CLAMP, CORD
$30.76¢15 381
#5
SPROCKET, FINAL DRIVEN (42T)
$733.10¢366 550
#6
AXLE, RR. WHEEL
$1493.88¢746 938
#7
COLLAR, R. RR. WHEEL SIDE
$849.55¢424 775
#8
COLLAR, L. RR. WHEEL SIDE
$2458.69¢1 229 344
#9
COLLAR, R. RR. AXLE SIDE
$3209.01¢1 604 506
#10
COLLAR, L. RR. AXLE SIDE
$3094.52¢1 547 262
#11
COLLAR B, RR. WHEEL DISTANCE
$1637.88¢818 938
#12
RING, RR. PULSER
$149.61¢74 806
#13
FLANGE SUB-ASSY., RR. DRIVEN
$7127.13¢3 563 563
#14
COLLAR, RR. AXLE DISTANCE
$4393.91¢2 196 956
#15
WHEEL SUB-ASSY., RR.
$14830.64¢7 415 319
#16
TIRE, RR. (190/55ZR17 M/C 75W) (BS)
$468.14¢234 069
#17
VALVE, RIM
$81.58¢40 788
#18
DISK, RR. BRAKE
$3660.51¢1 830 256
#19
WEIGHT, BALANCE (35G) (TOHO ZINK)
$8.30¢4 150
#19
WEIGHT, BALANCE (15G) (TOHO ZINK)
$3.39¢1 694
#19
WEIGHT, BALANCE (25G) (TOHO ZINK)
$7.21¢3 606
#19
WEIGHT, BALANCE (20G) (TOHO ZINK)
$6.35¢3 175
#19
WEIGHT, BALANCE (5G) (TOHO ZINK)
$1.15¢575
#19
WEIGHT, BALANCE (40G) (TOHO ZINK)
$8.59¢4 294
#19
WEIGHT, BALANCE (30G) (TOHO ZINK)
$7.72¢3 863
#19
WEIGHT, BALANCE (10G) (TOHO ZINK)
$5.45¢2 725
#20
BOLT, RR. DISK
$226.80¢113 400
#21
BOLT, DRIVEN SPROCKET SETTING
$253.84¢126 919
#22
BOLT, FLANGE (6X16) (SH)
$131.58¢65 788
#23
NUT, FLANGE (8MM)
$4.54¢2 269
#23
NUT, FLANGE (8MM)
$4.54¢2 269
#23
NUT, FLANGE (8MM)
$4.54¢2 269
#24
NUT, RR. AXLE
$118.21¢59 106
#25
PIN, LOCK (18MM)
$7.11¢3 556
#26
BEARING, ANGULAR BALL (30X62X16) (NACHI)
$450.96¢225 481
#27
BEARING, RADIAL BALL (6006UU) (NTN)
$48.61¢24 306
#28
DUST SEAL (40X62X4.5)
$169.68¢84 838
#29
DUST SEAL (38X58X4.5)
$168.66¢84 331
#30
O-RING (61X2)
$6.26¢3 131
