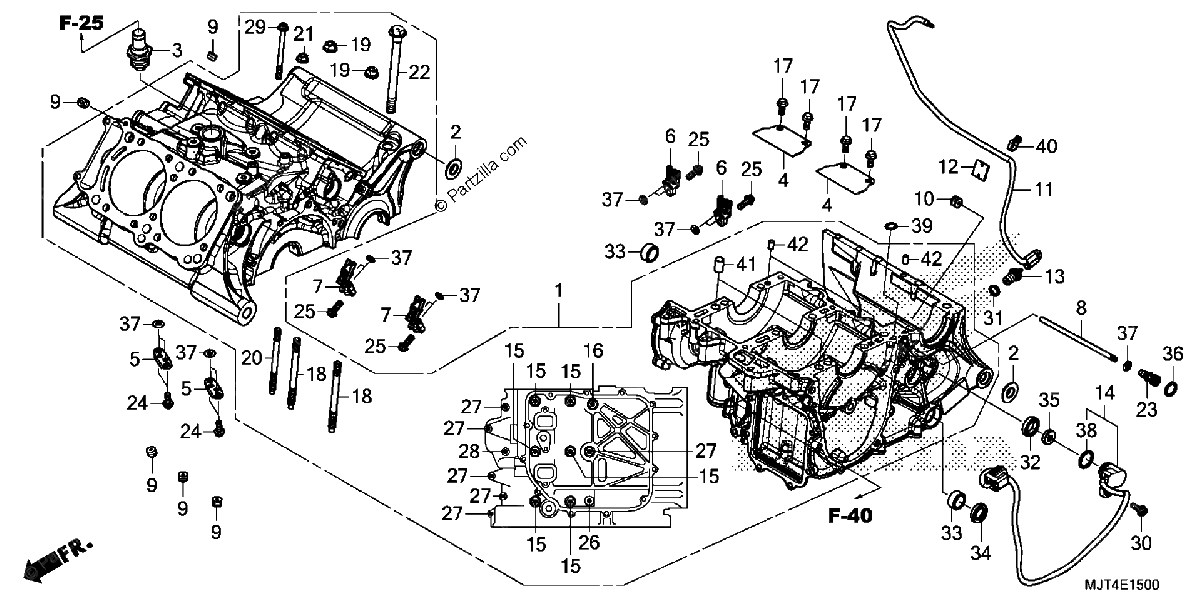

CRANKCASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CRANKCASE SET
$80796.66¢40 398 331
#2
COLLAR D, ENGINE HANGER
$91.21¢45 606
#3
JOINT, BREATHER
$210.43¢105 213
#4
PLATE, OIL SEPARATE
$218.75¢109 375
#5
PLUG, INLET PISTON JET
$1025.90¢512 950
#6
JET, FR. EX. PISTON
$1863.14¢931 569
#7
JET, RR. EX. PISTON
$1890.31¢945 156
#8
PIPE, TRANSMISSION JET
$2675.35¢1 337 675
#9
ORIFICE (1MM)
$34.16¢17 081
#10
ORIFICE (2MM)
$36.35¢18 175
#11
SUB-WIRE, NEUTRAL
$67.95¢33 975
#12
BASE, MOUNT
$69.65¢34 825
#13
SWITCH Assembly., NEUTRAL
$24.56¢12 281
#14
SENSOR ASSY., ANGLE (350DEGREE)
$251.09¢125 544
#15
BOLT, FLANGE (9X93)
$205.23¢102 613
#16
BOLT, FLANGE (9X114)
$111.16¢55 581
#17
BOLT, FLANGE (6X12) (NSHF)
$3.65¢1 825
#18
BOLT, STUD (8X96.5)
$79.52¢39 762
#19
NUT, FLANGE (8MM)
$18.84¢9 419
#20
BOLT, STUD (7X90)
$87.81¢43 906
#21
NUT, FLANGE (7MM)
$12.01¢6 006
#22
BOLT, FLANGE (10X110)
$331.16¢165 581
#23
BOLT, SPECIAL OIL LINE
$198.01¢99 006
#24
BOLT, FLANGE TORX (6X14)
$73.32¢36 662
#25
BOLT, FLANGE TORX (6X16)
$73.32¢36 662
#26
BOLT, FLANGE TORX (6X36)
$73.71¢36 856
#27
BOLT, FLANGE TORX (6X40)
$75.31¢37 656
#28
BOLT, FLANGE TORX (6X45)
$75.31¢37 656
#29
BOLT, FLANGE TORX (6X70)
$80.35¢40 175
#30
BOLT, KNOCK TORX (5X16)
$280.82¢140 413
#31
WASHER, NEUTRAL
$2.48¢1 238
#32
BEARING, BALL (6802C3)
$33.94¢16 969
#33
BEARING, NEEDLE (15X21X10)
$18.21¢9 106
#34
OIL SEAL (15X24X5)
$5.90¢2 950
#34
OIL SEAL A
$6.89¢3 444
#34
OIL SEAL (15X24X5)
$6.89¢3 444
#34
OIL SEAL (15X24X5)
$6.89¢3 444
#35
OIL SEAL (7X18X5) (ARAI)
$5.25¢2 625
#36
O-RING (1.5X9.5)
$2.99¢1 494
#37
O-RING (2.8X1.2)
$8.73¢4 363
#38
O-RING (16.5X2.5)
$6.19¢3 094
#39
O-RING, CRANKCASE
$99.98¢49 988
#40
BAND, TY-RAP (2.4X92)
$14.45¢7 225
#41
PIN B, DOWEL (10X16)
$2.16¢1 081
#42
PIN, DOWEL (6X10)
$2.89¢1 444
