REAR BRAKE CALIPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

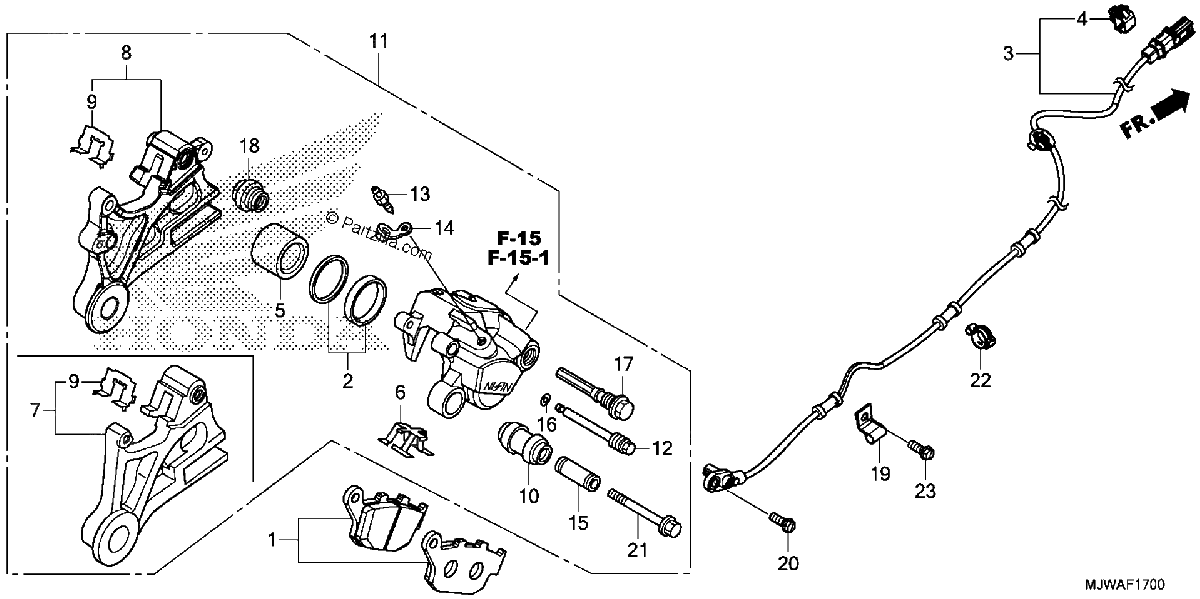

Diagrama de REAR BRAKE CALIPER

Repuestos

#1
06435-MGZ-J01
PAD SET, Rear.
$38.18¢19 090
1
#001
06435-MGZ-J01
PAD SET, Rear.
$38.18¢19 090
1
#001
06435-MGZ-J02
PAD SET, Rear.
$32.69¢16 347
1
#2
06451-443-405
SEAL SET, PISTON
$14.24¢7 119
1
#002
06451-443-405
SEAL SET, PISTON
$14.24¢7 119
1
#003
38510-MJW-J11
SENSOR, RR. WHEEL SPEED
$44.83¢22 413
1
#3
38510-MJW-J11
SENSOR, RR. WHEEL SPEED
$44.83¢22 413
1
#4
42524-T5A-003
CLIP, CONNECTOR (DARK BLUE)
$3.45¢1 725
1
#004
42524-T5A-003
CLIP, CONNECTOR (DARK BLUE)
$3.45¢1 725
1
#005
43107-KT7-761
PISTON
$40.45¢20 223
1
#5
43107-KT7-761
PISTON
$40.45¢20 223
1
#6
43108-MBB-006
SPRING, PAD
$6.89¢3 444
1
#006
43108-MBB-006
SPRING, PAD
$6.89¢3 444
1
#008
43110-MJW-J11
BRACKET, RR. BRAKE
$62.66¢31 332
1
#8
43110-MJW-J11
BRACKET, RR. BRAKE
$62.66¢31 332
1
#9
43112-KT7-761
RETAINER
$10.14¢5 071
1
#009
43112-KT7-761
RETAINER
$10.14¢5 071
1
#010
43132-KT7-761
BOOT, SLEEVE
$9.18¢4 589
1
#10
43132-KT7-761
BOOT, SLEEVE
$9.18¢4 589
1
#11
43150-MJW-J11
CALIPER SUB-Assembly., Rear. (NISSIN) (MSDS)
$181.99¢90 994
1
#011
43150-MJW-J11
CALIPER SUB-Assembly., Rear. (NISSIN) (MSDS)
$181.99¢90 994
1
#012
43215-KZ4-J41
PIN, HANGER
$5.86¢2 932
1
#12
43215-KZ4-J41
PIN, HANGER
$5.86¢2 932
1
#013
43352-568-003
SCREW, BLEEDER (NISSIN)
$8.85¢4 427
1
#13
43352-568-003
SCREW, BLEEDER (NISSIN)
$8.85¢4 427
1
#014
43353-461-771
CAP, BLEEDER
$5.63¢2 818
1
#14
43353-461-771
CAP, BLEEDER
$5.63¢2 818
1
#15
45111-MA3-006
SLEEVE
$14.29¢7 147
1
#015
45111-MA3-006
SLEEVE
$14.29¢7 147
1
#016
45111-MAJ-G41
RING, STOPPER
$4.24¢2 122
1
#16
45111-MAJ-G41
RING, STOPPER
$4.24¢2 122
1
#017
45131-MN9-006
BOLT, PIN
$17.05¢8 527
1
#17
45131-MN9-006
BOLT, PIN
$17.05¢8 527
1
#018
45133-MA3-006
BOOT B
$6.08¢3 042
1
#18
45133-MA3-006
BOOT B
$6.08¢3 042
1
#019
45157-MEJ-J00
CLAMP A, SENSOR CORD
$4.19¢2 093
1
#19
45157-MEJ-J00
CLAMP A, SENSOR CORD
$4.19¢2 093
1
#020
90107-MEJ-D00
BOLT, FLANGE (6X16)
$0.56¢282
1
#20
90107-MEJ-D00
BOLT, FLANGE (6X16)
$0.56¢282
1
#021
90180-MN8-006
BOLT, FLANGE (8X49)
$6.76¢3 381
1
#21
90180-MN8-006
BOLT, FLANGE (8X49)
$6.76¢3 381
1
#022
90690-MCA-003
CLIP, CABLE (14MM)
$2.09¢1 047
1
#22
90690-MCA-003
CLIP, CABLE (14MM)
$2.09¢1 047
1
#023
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#23
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
