WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

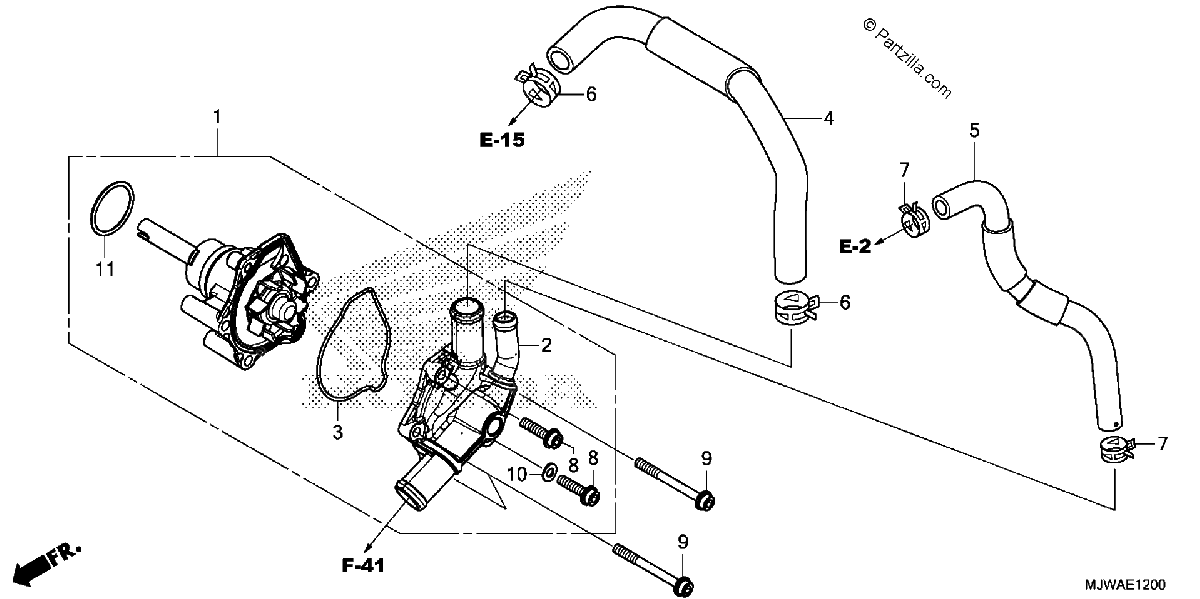

Diagrama de WATER PUMP

Repuestos

#001
19200-MGZ-305
WATER PUMP
$156.14¢78 068
1
#1
19200-MGZ-305
WATER PUMP
$156.14¢78 068
1
#002
19220-MGZ-J00
COVER, WATER PUMP
$100.02¢50 008
1
#2
19220-MGZ-J00
COVER, WATER PUMP
$100.02¢50 008
1
#3
19226-MGZ-J00
GASKET, WATER PUMP BODY
$5.52¢2 760
1
#003
19226-MGZ-J00
GASKET, WATER PUMP BODY
$5.52¢2 760
1
#004
19525-MGZ-J00
HOSE A, WATER
$38.87¢19 435
1
#4
19525-MGZ-J00
HOSE A, WATER
$38.87¢19 435
1
#005
19526-MGZ-J00
HOSE, WATER BYPASS
$28.58¢14 289
1
#5
19526-MGZ-J00
HOSE, WATER BYPASS
$28.58¢14 289
1
#006
19531-MJW-J00
CLIP, WATER HOSE (D27)
$2.22¢1 110
1
#6
19531-MJW-J00
CLIP, WATER HOSE (D27)
$2.22¢1 110
1
#7
19535-MJW-J00
CLIP, WATER HOSE (D21)
$1.62¢811
1
#007
19535-MJW-J00
CLIP, WATER HOSE (D21)
$1.62¢811
1
#8
90002-MGZ-J00
BOLT, FLANGE SOCKET (6X25)
$0.77¢385
1
#008
90002-MGZ-J00
BOLT, FLANGE SOCKET (6X25)
$0.77¢385
1
#9
90004-MGZ-J00
BOLT, FLANGE SOCKET (6X60)
$1.17¢586
1
#009
90004-MGZ-J00
BOLT, FLANGE SOCKET (6X60)
$1.17¢586
1
#010
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.36¢1 679
1
#10
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.36¢1 679
1
#11
91302-MB0-013
O-RING (32.95X2.62) (ARAI)
$3.36¢1 679
1
#011
91302-MB0-013
O-RING (32.95X2.62) (ARAI)
$3.36¢1 679
1
