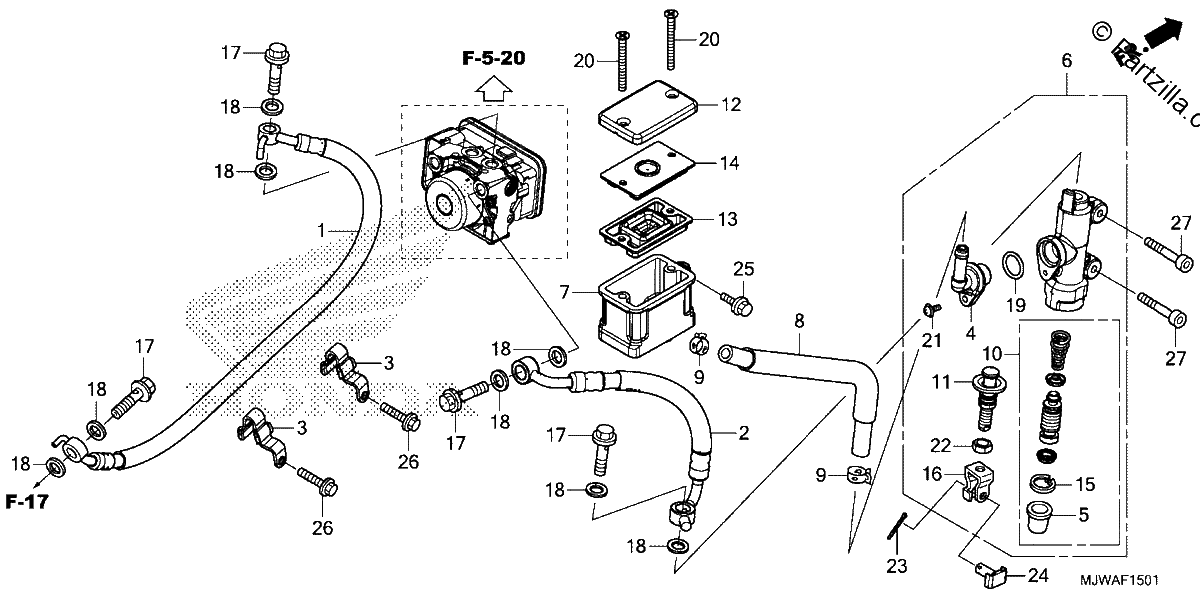

REAR BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
HOSE A, RR. BRAKE
$28.84¢14 419
#002
HOSE B, RR. BRAKE
$22.76¢11 381
#003
GUIDE, RR. BRAKE HOSE
$5.26¢2 631
#004
CONNECTOR, MASTER CYLINDER
$9.96¢4 981
#005
BOOT
$11.74¢5 869
#006
MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)
$271.31¢135 656
#007
CUP, OIL
$27.52¢13 763
#008
HOSE, RR. BRAKE MASTER CYLINDER
$19.91¢9 956
#009
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#010
PISTON SET, MASTER CYLINDER (NISSIN)
$53.06¢26 531
#011
ROD, PUSH
$25.54¢12 769
#012
CAP, MASTER CYLINDER (COO)
$5.04¢2 519
#012
CAP, MASTER CYLINDER
$5.04¢2 519
#013
DIAPHRAGM
$12.31¢6 156
#014
PLATE, DIAPHRAGM
$12.60¢6 300
#015
CIRCLIP
$2.50¢1 250
#016
JOINT, BRAKE ROD
$9.50¢4 750
#017
BOLT, OIL (10X22)
$8.89¢4 444
#018
WASHER, OIL BOLT
$4.85¢2 425
#019
O-RING (14.8X2.4)
$3.30¢1 650
#020
SCREW, FLAT (4X40)
$0.61¢306
#021
SCREW-WASHER (4X12)
$1.72¢862
#021
SCREW-WASHER (4X12)
$1.72¢862
#022
NUT, HEX. (8MM)
$1.60¢800
#023
PIN, SPLIT (2.0X15)
$1.34¢669
#024
PIN D, JOINT
$5.15¢2 575
#025
BOLT, FLANGE (6X14)
$1.54¢769
#026
BOLT, FLANGE (6X18)
$1.63¢813
#027
BOLT, SOCKET (6X20)
$1.66¢831
