SIDE COVER REAR COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

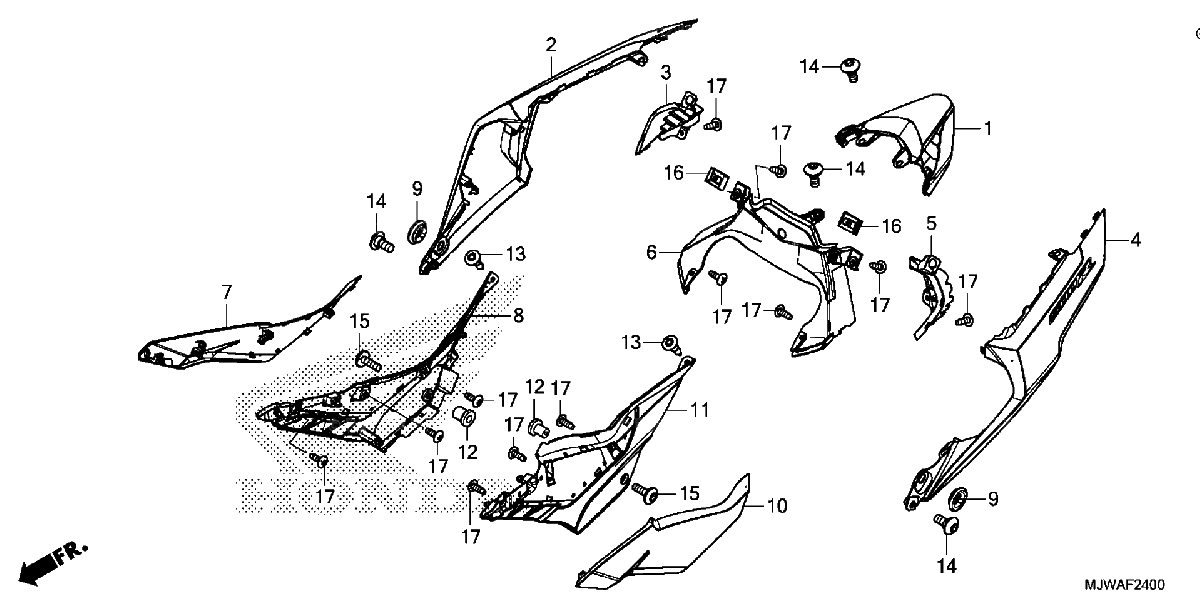

Diagrama de SIDE COVER REAR COWL

Repuestos

#1
77231-MJW-J00ZB
COWL, Rear CENTER NH303M (MAT AXIS GRAY METALLIC)
$119.90¢59 950
1
#001
77231-MJW-J00ZB
COWL, Rear CENTER NH303M (MAT AXIS GRAY METALLIC)
$119.90¢59 950
1
#2
77240-MJW-J00ZC
COWL SET, R. RR. (TYPE1) (WL)
$81.33¢40 664
1
#2
77240-MJW-J00ZD
COWL SET, Right Rear. (TYPE1) (WL)
$81.33¢40 664
1
#002
77240-MJW-J00ZD
COWL SET, Right Rear. (TYPE1) (WL)
$81.33¢40 664
1
#003
77245-MJW-J00
COVER, R. RR. COWL
$6.90¢3 450
1
#3
77245-MJW-J00
COVER, R. RR. COWL
$6.90¢3 450
1
#4
77250-MJW-J00ZB
COWL SET, L Rear. (TYPE1) (WL)
$83.65¢41 825
1
#004
77250-MJW-J00ZB
COWL SET, L Rear. (TYPE1) (WL)
$83.65¢41 825
1
#4
77250-MJW-J00ZA
COWL SET, L. RR. (TYPE1) (WL)
$83.65¢41 825
1
#005
77255-MJW-J00
COVER, L. RR. COWL
$6.90¢3 450
1
#5
77255-MJW-J00
COVER, L. RR. COWL
$6.90¢3 450
1
#006
77261-MJW-J00ZC
COWL, SEAT CENTER *NH436M* (MAT GUNPOWDER BLACK METALLIC)
$46.11¢23 057
1
#6
77261-MJW-J00ZC
COWL, SEAT CENTER *NH436M* (MAT GUNPOWDER BLACK METALLIC)
$46.11¢23 057
1
#007
83511-MJW-J00ZD
COVER A, R. SIDE *NH436M* (MAT GUNPOWDER BLACK METALLIC)
$38.97¢19 487
1
#7
83511-MJW-J00ZD
COVER A, R. SIDE *NH436M* (MAT GUNPOWDER BLACK METALLIC)
$38.97¢19 487
1
#8
83521-MJW-J00
COVER B, Right SIDE
$33.99¢16 997
1
#008
83521-MJW-J00
COVER B, Right SIDE
$33.99¢16 997
1
#9
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
1
#009
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
1
#010
83611-MJW-J00ZD
COVER A, L. SIDE *NH436M* (MAT GUNPOWDER BLACK METALLIC)
$31.38¢15 692
1
#10
83611-MJW-J00ZD
COVER A, L. SIDE *NH436M* (MAT GUNPOWDER BLACK METALLIC)
$31.38¢15 692
1
#011
83621-MJW-J00
COVER B, L. SIDE
$30.73¢15 364
1
#11
83621-MJW-J00
COVER B, L. SIDE
$30.73¢15 364
1
#012
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.04¢2 519
1
#12
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.04¢2 519
1
#13
90116-SP0-003
CLIP, BUMPER SEAL
$5.27¢2 633
1
#013
90116-SP0-003
CLIP, BUMPER SEAL
$5.27¢2 633
1
#014
90133-KPP-T00
SCREW, PAN (6X14)
$1.51¢753
1
#14
90133-KPP-T00
SCREW, PAN (6X14)
$1.51¢753
1
#015
90134-MJE-D00
SCREW, PAN (5X16)
$1.33¢667
1
#15
90134-MJE-D00
SCREW, PAN (5X16)
$1.33¢667
1
#016
90302-KWW-A00
NUT, SPRING (4MM)
$1.15¢575
1
#16
90302-KWW-A00
NUT, SPRING (4MM)
$1.15¢575
1
#017
93903-24380
SCREW, TAPPING (4X12)
$1.07¢535
1
#17
93903-24380
SCREW, TAPPING (4X12)
$1.07¢535
1
