TRANSMISSION COUNTERSHAFT 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

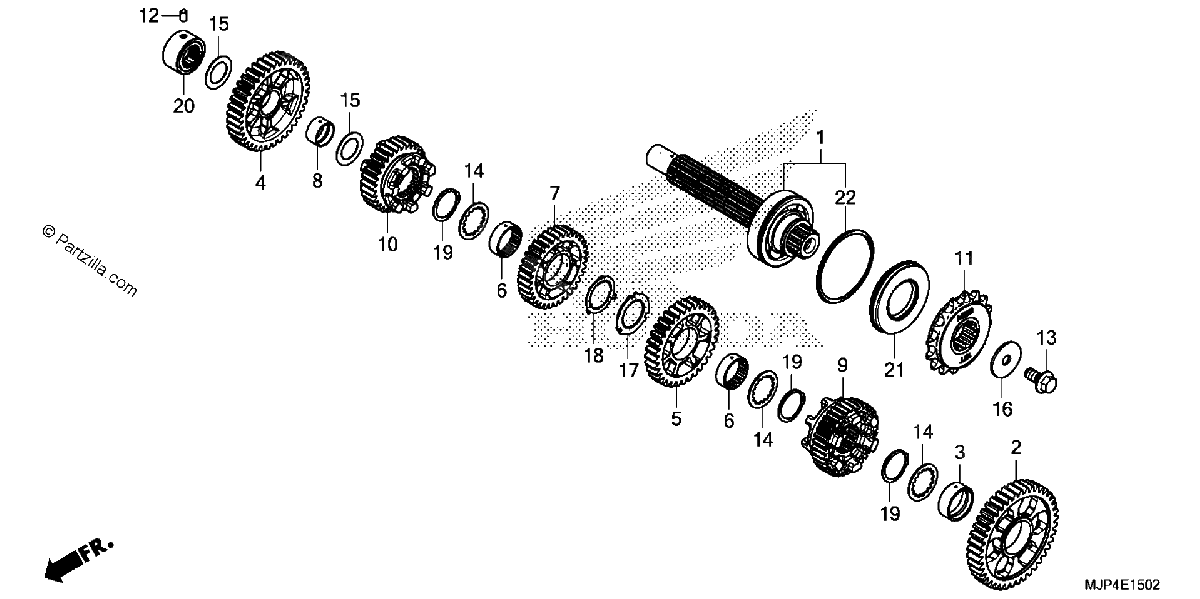

Diagrama de TRANSMISSION COUNTERSHAFT 2

Repuestos

#001
23220-MJP-G80
COUNTERSHAFT
$214.76¢107 381
1
#1
23220-MJP-G80
COUNTERSHAFT
$214.76¢107 381
1
#002
23421-MJP-G80
GEAR, COUNTERSHAFT FIRST (41T)
$145.29¢72 646
1
#2
23421-MJP-G80
GEAR, COUNTERSHAFT FIRST (41T)
$145.29¢72 646
1
#003
23422-HL4-000
COLLAR (30X35X13)
$21.00¢10 500
1
#3
23422-HL4-000
COLLAR (30X35X13)
$21.00¢10 500
1
#4
23441-MJP-G80
GEAR, COUNTERSHAFT SECOND (37T)
$138.86¢69 431
1
#004
23441-MJP-G80
GEAR, COUNTERSHAFT SECOND (37T)
$138.86¢69 431
1
#5
23461-MJP-G80
GEAR, COUNTERSHAFT THIRD (33T)
$133.57¢66 786
1
#005
23461-MJP-G80
GEAR, COUNTERSHAFT THIRD (33T)
$133.57¢66 786
1
#6
23462-MAT-000
COLLAR, SPLINE (30X11)
$27.24¢13 622
1
#006
23462-MAT-000
COLLAR, SPLINE (30X11)
$27.24¢13 622
1
#7
23481-MJP-G80
GEAR, COUNTERSHAFT FOURTH (34T)
$133.57¢66 786
1
#007
23481-MJP-G80
GEAR, COUNTERSHAFT FOURTH (34T)
$133.57¢66 786
1
#008
23495-KY1-000
COLLAR (22X13)
$24.75¢12 374
1
#8
23495-KY1-000
COLLAR (22X13)
$24.75¢12 374
1
#009
23501-MJP-G80
GEAR, COUNTERSHAFT FIFTH (36T)
$155.01¢77 504
1
#9
23501-MJP-G80
GEAR, COUNTERSHAFT FIFTH (36T)
$155.01¢77 504
1
#010
23521-MJP-G80
GEAR, COUNTERSHAFT SIXTH (30T)
$149.63¢74 813
1
#10
23521-MJP-G80
GEAR, COUNTERSHAFT SIXTH (30T)
$149.63¢74 813
1
#011
23801-MEE-D00
SPROCKET, DRIVE (16T)
$62.12¢31 062
1
#11
23801-MEE-D00
SPROCKET, DRIVE (16T)
$62.12¢31 062
1
#012
24261-283-000
PIN, GEARSHIFT FORK GUIDE
$4.70¢2 352
1
#12
24261-283-000
PIN, GEARSHIFT FORK GUIDE
$4.70¢2 352
1
#013
90037-422-003
BOLT, SPECIAL (10MM)
$8.18¢4 088
1
#13
90037-422-003
BOLT, SPECIAL (10MM)
$8.18¢4 088
1
#014
90452-HL4-000
WASHER, SPLINE (30X38X1.5)
$3.60¢1 800
1
#14
90452-HL4-000
WASHER, SPLINE (30X38X1.5)
$3.60¢1 800
1
#015
90455-ML7-000
WASHER B, THRUST (22MM) (BLUE)
$5.43¢2 714
1
#15
90455-ML7-000
WASHER B, THRUST (22MM) (BLUE)
$5.43¢2 714
1
#16
90459-438-000
WASHER (10.2MM)
$6.51¢3 254
1
#016
90459-438-000
WASHER (10.2MM)
$6.51¢3 254
1
#017
90463-MAT-000
WASHER, SPLINE (30MM)
$5.40¢2 702
1
#17
90463-MAT-000
WASHER, SPLINE (30MM)
$5.40¢2 702
1
#18
90464-MAT-000
WASHER, LOCK (30MM)
$7.96¢3 979
1
#018
90464-MAT-000
WASHER, LOCK (30MM)
$7.96¢3 979
1
#019
90604-MM5-000
CIRCLIP (30MM)
$4.99¢2 496
1
#19
90604-MM5-000
CIRCLIP (30MM)
$4.99¢2 496
1
#020
91023-MM5-641
BEARING, NEEDLE (22MM)
$28.90¢14 450
1
#20
91023-MM5-641
BEARING, NEEDLE (22MM)
$28.90¢14 450
1
#021
91207-MBB-003
OIL SEAL (39X72X8)
$13.68¢6 842
1
#21
91207-MBB-003
OIL SEAL (39X72X8)
$13.68¢6 842
1
#021
91207-MBB-013
OIL SEAL (39X72X8)
$13.68¢6 842
1
#22
94560-72200
RING, SNAP (72MM)
$4.43¢2 214
1
#022
94560-72200
RING, SNAP (72MM)
$4.43¢2 214
1
