FRONT COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

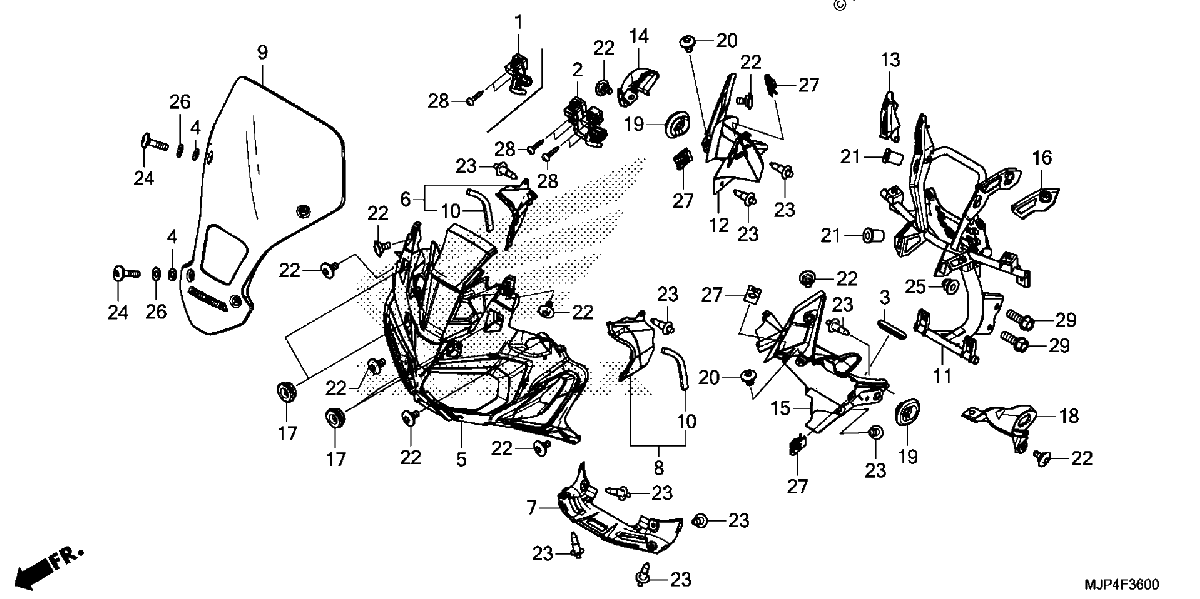

Diagrama de FRONT COWL

Repuestos

#2
35240-MJP-G81
SWITCH Assembly., Rear G MODE & ABSCANCEL
$87.09¢43 544
1
#002
35240-MJP-G81
SWITCH Assembly., Rear G MODE & ABSCANCEL
$87.09¢43 544
1
#3
39119-MJG-640
GROMMET, AUDIO BOX
$8.30¢4 150
1
#003
39119-MJG-640
GROMMET, AUDIO BOX
$8.30¢4 150
1
#4
64205-166-610
WASHER, SCREEN SETTING
$2.85¢1 425
1
#004
64205-166-610
WASHER, SCREEN SETTING
$2.85¢1 425
1
#5
64211-MJP-G50
COVER, Front.
$259.65¢129 825
1
#005
64211-MJP-G50
COVER, Front.
$259.65¢129 825
1
#006
64220-MJP-G50
COVER ASSY., R. FR. (INNER)
$17.18¢8 588
1
#6
64220-MJP-G50
COVER ASSY., R. FR. (INNER)
$17.18¢8 588
1
#007
64221-MJP-G50
SPOILER, FR.
$23.69¢11 844
1
#7
64221-MJP-G50
SPOILER, FR.
$23.69¢11 844
1
#8
64230-MJP-G50
COVER Assembly., L Front. (INNER)
$21.76¢10 881
1
#008
64230-MJP-G50
COVER Assembly., L Front. (INNER)
$21.76¢10 881
1
#9
64250-MJP-305ZA
WINDSCREEN SET (TYPE1) (WL)(COO)
$458.61¢229 306
1
#009
64250-MJP-305ZA
WINDSCREEN SET (TYPE1) (WL)(COO)
$458.61¢229 306
1
#009
64250-MJP-G50ZA
WINDSCREEN SET (TYPE1) (WL)
$458.61¢229 306
1
#010
64312-MJP-G50
SEAL B, MIDDLE COWL
$3.28¢1 638
1
#10
64312-MJP-G50
SEAL B, MIDDLE COWL
$3.28¢1 638
1
#11
64501-MJP-G50
STAY, Front COWL
$356.64¢178 319
1
#011
64501-MJP-G50
STAY, Front COWL
$356.64¢178 319
1
#012
64531-MJP-G80
COVER, R. PANEL (INNER)
$58.10¢29 050
1
#12
64531-MJP-G80
COVER, R. PANEL (INNER)
$58.10¢29 050
1
#013
64532-MJP-G50
COVER, R. COWL STAY
$11.64¢5 819
1
#13
64532-MJP-G50
COVER, R. COWL STAY
$11.64¢5 819
1
#014
64541-MJP-G50
COVER, R. FR. TURN SIGNAL
$27.69¢13 844
1
#14
64541-MJP-G50
COVER, R. FR. TURN SIGNAL
$27.69¢13 844
1
#015
64581-MJP-G50
COVER, L. PANEL (INNER)
$25.80¢12 900
1
#15
64581-MJP-G50
COVER, L. PANEL (INNER)
$25.80¢12 900
1
#16
64582-MJP-G50
COVER, L COWL STAY
$11.64¢5 819
1
#016
64582-MJP-G50
COVER, L COWL STAY
$11.64¢5 819
1
#17
64586-MBW-D20
RUBBER, AIR DUCT COVER SETTING
$3.71¢1 856
1
#017
64586-MBW-D20
RUBBER, AIR DUCT COVER SETTING
$3.71¢1 856
1
#18
64591-MJP-G50
COVER, L Front TURN SIGNAL
$27.69¢13 844
1
#018
64591-MJP-G50
COVER, L Front TURN SIGNAL
$27.69¢13 844
1
#019
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.81¢3 406
1
#19
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.81¢3 406
1
#020
90106-MJP-G50
BOLT, SPECIAL (6X8)
$3.65¢1 825
1
#20
90106-MJP-G50
BOLT, SPECIAL (6X8)
$3.65¢1 825
1
#021
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.47¢2 738
1
#21
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.47¢2 738
1
#22
90114-MGE-000
SCREW, SPECIAL (5X11)
$3.34¢1 669
1
#022
90114-MGE-000
SCREW, SPECIAL (5X11)
$3.34¢1 669
1
#023
90116-SP0-003
CLIP, BUMPER SEAL
$5.72¢2 863
1
#23
90116-SP0-003
CLIP, BUMPER SEAL
$5.72¢2 863
1
#024
90118-MJP-G50
SCREW, PAN (5X20) (SUS)
$2.99¢1 494
1
#24
90118-MJP-G50
SCREW, PAN (5X20) (SUS)
$2.99¢1 494
1
#25
90161-MM8-000
NUT, FLANGE CAP (8MM)
$3.65¢1 825
1
#025
90161-MM8-000
NUT, FLANGE CAP (8MM)
$3.65¢1 825
1
#26
90504-964-000
WASHER, THRUST (5MM)
$2.44¢1 219
1
#026
90504-964-000
WASHER, THRUST (5MM)
$2.44¢1 219
1
#027
90677-KAN-961
NUT, CLIP (5MM)
$4.94¢2 469
1
#27
90677-KAN-961
NUT, CLIP (5MM)
$4.94¢2 469
1
#028
93901-22320
SCREW, TAPPING (3X12)
$0.65¢325
1
#28
93901-22320
SCREW, TAPPING (3X12)
$0.65¢325
1
#29
95701-08025-07
BOLT, FLANGE (8X25)
$1.19¢594
1
#029
95701-08025-07
BOLT, FLANGE (8X25)
$1.19¢594
1
