FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

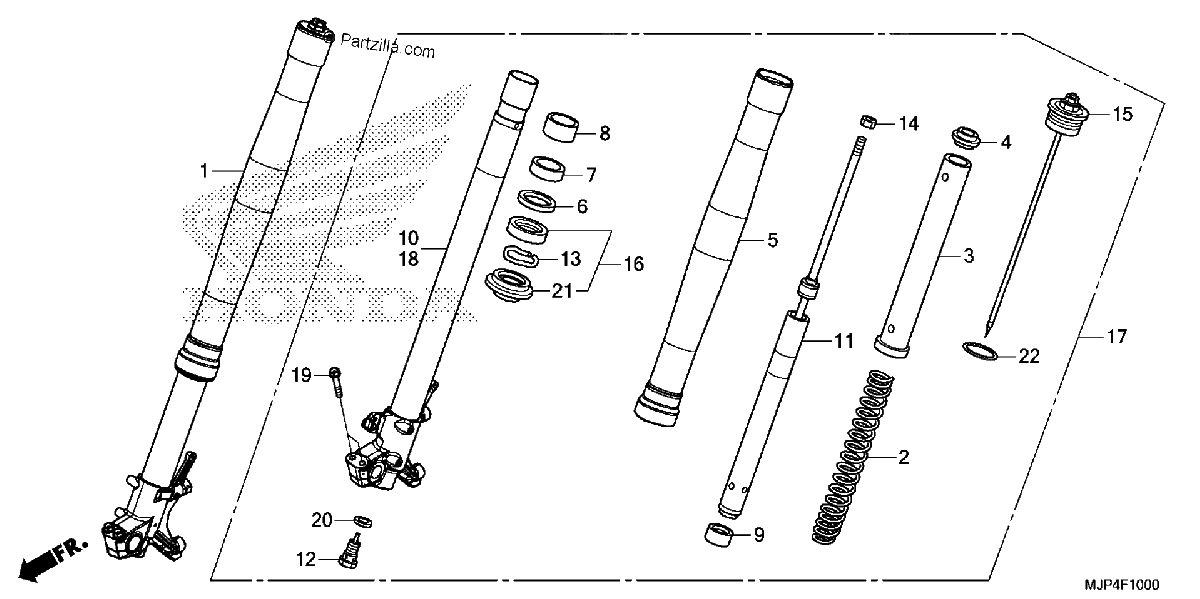

Diagrama de FRONT FORK

Repuestos

#1
51400-MJP-306
FORK Assembly., Right Front. (COO) (SHOWA)
$1805.94¢902 969
1
#001
51400-MJP-306
FORK Assembly., Right Front. (COO) (SHOWA)
$1805.94¢902 969
1
#002
51401-MJP-G51
SPRING, FR. FORK
$96.58¢48 288
1
#2
51401-MJP-G51
SPRING, FR. FORK
$96.58¢48 288
1
#3
51404-MJP-G51
COLLAR, SPRING
$3.73¢1 863
1
#003
51404-MJP-G51
COLLAR, SPRING
$3.73¢1 863
1
#004
51406-MW4-003
STOPPER, SPRING SEAT
$9.59¢4 794
1
#4
51406-MW4-003
STOPPER, SPRING SEAT
$9.59¢4 794
1
#5
51410-MJP-G51
TUBE (OUTER)
$662.85¢331 425
1
#005
51410-MJP-G51
TUBE (OUTER)
$662.85¢331 425
1
#6
51412-KZ3-003
RING, BACK-UP
$11.03¢5 513
1
#006
51412-KZ3-003
RING, BACK-UP
$11.03¢5 513
1
#007
51414-MFR-671
BUSH, GUIDE
$25.18¢12 588
1
#7
51414-MFR-671
BUSH, GUIDE
$25.18¢12 588
1
#008
51415-MFR-671
BUSH, SLIDER
$13.39¢6 694
1
#8
51415-MFR-671
BUSH, SLIDER
$13.39¢6 694
1
#9
51421-KAE-871
PLATE, CENTERING (SHOWA)
$11.64¢5 819
1
#009
51421-KAE-871
PLATE, CENTERING (SHOWA)
$11.64¢5 819
1
#10
51425-MJP-G51
PIPE SUB, Right SLIDE (SHOWA)
$474.74¢237 369
1
#010
51425-MJP-G51
PIPE SUB, Right SLIDE (SHOWA)
$474.74¢237 369
1
#11
51430-MJP-G51
DAMPER, FR.
$664.75¢332 375
1
#011
51430-MJP-G51
DAMPER, FR.
$664.75¢332 375
1
#12
51441-MJP-G51
BOLT, CENTER
$32.69¢16 344
1
#012
51441-MJP-G51
BOLT, CENTER
$32.69¢16 344
1
#013
51447-KZ3-003
RING, OIL SEAL STOPPER
$6.20¢3 100
1
#13
51447-KZ3-003
RING, OIL SEAL STOPPER
$6.20¢3 100
1
#14
51451-MAJ-G41
NUT, HEX. (10MM)
$3.73¢1 863
1
#014
51451-MAJ-G41
NUT, HEX. (10MM)
$3.73¢1 863
1
#015
51454-MJP-G51
BOLT, FR. FORK
$209.20¢104 600
1
#15
51454-MJP-G51
BOLT, FR. FORK
$209.20¢104 600
1
#16
51490-MJP-G51
SEAL SET, Front FORK
$25.96¢12 981
1
#016
51490-MJP-G51
SEAL SET, Front FORK
$25.96¢12 981
1
#017
51500-MJP-G81
FORK Assembly., L Front. (SHOWA)
$1805.94¢902 969
1
#017
51500-MJP-306
FORK ASSY., L. FR. (COO) (SHOWA)
$1805.94¢902 969
1
#17
51500-MJP-306
FORK ASSY., L. FR. (COO) (SHOWA)
$1805.94¢902 969
1
#018
51525-MJP-G61
PIPE SUB, L. SLIDE
$474.74¢237 369
1
#18
51525-MJP-G61
PIPE SUB, L. SLIDE
$474.74¢237 369
1
#19
90109-MR7-000
BOLT, FLANGE (8X45)
$5.99¢2 994
1
#019
90109-MR7-000
BOLT, FLANGE (8X45)
$5.99¢2 994
1
#020
90544-KS7-003
WASHER, SPECIAL
$3.65¢1 825
1
#20
90544-KS7-003
WASHER, SPECIAL
$3.65¢1 825
1
#021
91254-KZ3-003
DUST SEAL
$19.63¢9 813
1
#21
91254-KZ3-003
DUST SEAL
$19.63¢9 813
1
#022
91356-KZ3-003
O-RING (44.7X2.4)
$4.76¢2 381
1
#22
91356-KZ3-003
O-RING (44.7X2.4)
$4.76¢2 381
1
