PARKING BRAKE LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

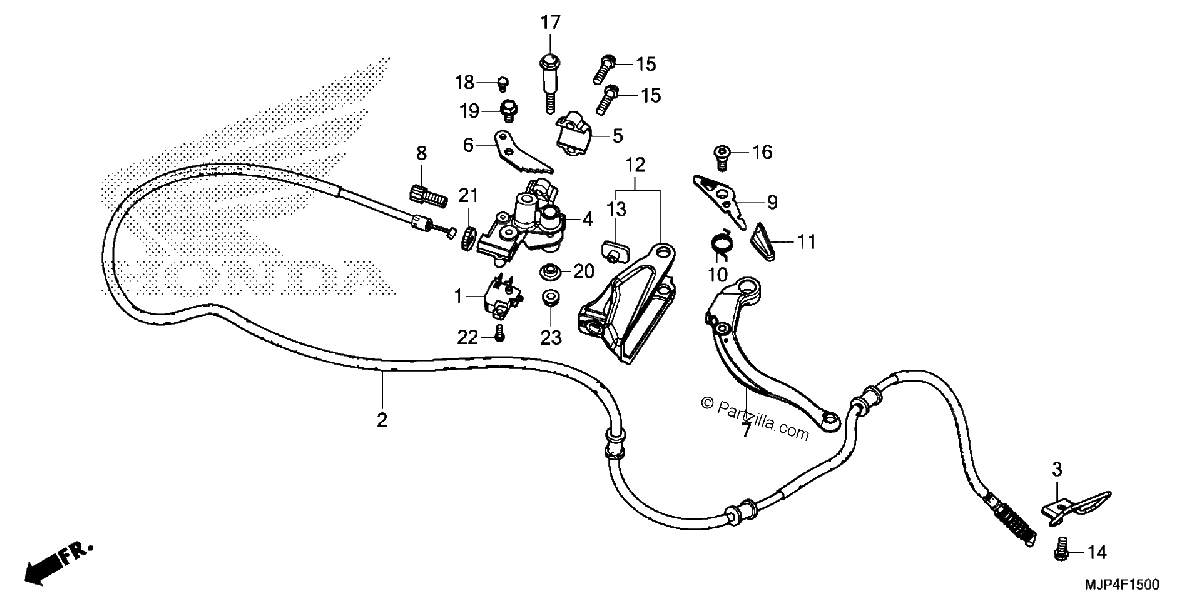

Diagrama de PARKING BRAKE LEVER

Repuestos

#1
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
1
#001
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
1
#002
43450-MJP-G81
CABLE, PARKING BRAKE
$40.74¢20 369
1
#2
43450-MJP-G81
CABLE, PARKING BRAKE
$40.74¢20 369
1
#003
43455-MJP-G80
GUIDE, PARKING CABLE
$20.78¢10 388
1
#3
43455-MJP-G80
GUIDE, PARKING CABLE
$20.78¢10 388
1
#4
53172-MJP-G80
BRACKET, PARKING BRAKE LEVER
$64.25¢32 125
1
#004
53172-MJP-G80
BRACKET, PARKING BRAKE LEVER
$64.25¢32 125
1
#005
53174-KA3-730
HOLDER, L. LEVER BRACKET
$27.32¢13 663
1
#5
53174-KA3-730
HOLDER, L. LEVER BRACKET
$27.32¢13 663
1
#006
53175-MJP-G80
STAY, PARKING BRAKE STOPPER
$7.11¢3 556
1
#6
53175-MJP-G80
STAY, PARKING BRAKE STOPPER
$7.11¢3 556
1
#007
53178-MJP-306
LEVER, PARKING BRAKE (COO)
$47.67¢23 838
1
#7
53178-MJP-306
LEVER, PARKING BRAKE (COO)
$47.67¢23 838
1
#007
53178-MJP-G80
LEVER, PARKING BRAKE
$47.67¢23 838
1
#008
53192-MJP-G80
BOLT, PARKING BRAKE CABLE ADJUST
$11.23¢5 613
1
#8
53192-MJP-G80
BOLT, PARKING BRAKE CABLE ADJUST
$11.23¢5 613
1
#9
53193-MJP-G80
LEVER, PARKING BRAKE LOCK
$12.09¢6 044
1
#009
53193-MJP-G80
LEVER, PARKING BRAKE LOCK
$12.09¢6 044
1
#10
53194-MJP-G80
SPRING, PARKING BRAKE LEVER
$4.36¢2 181
1
#010
53194-MJP-G80
SPRING, PARKING BRAKE LEVER
$4.36¢2 181
1
#11
53195-MJP-G80
CAP, PARKING BRAKE LEVER
$4.74¢2 369
1
#011
53195-MJP-G80
CAP, PARKING BRAKE LEVER
$4.74¢2 369
1
#012
53196-MJP-G60
HOLDER, L. KNUCKLE
$18.70¢9 350
1
#12
53196-MJP-G60
HOLDER, L. KNUCKLE
$18.70¢9 350
1
#013
61304-HB3-003
NUT, SPECIAL (6MM)
$3.65¢1 825
1
#13
61304-HB3-003
NUT, SPECIAL (6MM)
$3.65¢1 825
1
#14
90013-GHB-610
BOLT, FLANGE (6X12)
$2.99¢1 494
1
#014
90013-GHB-610
BOLT, FLANGE (6X12)
$2.99¢1 494
1
#015
90013-GHB-660
BOLT, FLANGE (6X22)
$2.99¢1 494
1
#15
90013-GHB-660
BOLT, FLANGE (6X22)
$2.99¢1 494
1
#16
90115-MJP-G80
BOLT, PARKING BRAKE LEVER PIVOT
$7.31¢3 656
1
#016
90115-MJP-G80
BOLT, PARKING BRAKE LEVER PIVOT
$7.31¢3 656
1
#17
90117-MJP-G50
BOLT, L. HANDLE LEVER
$8.51¢4 256
1
#017
90117-MJP-G50
BOLT, L. HANDLE LEVER
$8.51¢4 256
1
#18
90122-MJP-G80
BOLT, HEX. (4X8)
$1.96¢981
1
#018
90122-MJP-G80
BOLT, HEX. (4X8)
$1.96¢981
1
#19
90126-MCH-A00
BOLT, FLANGE (6X12)
$1.74¢869
1
#019
90126-MCH-A00
BOLT, FLANGE (6X12)
$1.74¢869
1
#20
90127-KF0-770
COLLAR (6X4)
$4.15¢2 075
1
#020
90127-KF0-770
COLLAR (6X4)
$4.15¢2 075
1
#21
90321-MCJ-000
NUT, FIXING
$4.13¢2 063
1
#021
90321-MCJ-000
NUT, FIXING
$4.13¢2 063
1
#022
93500-04012-0H
SCREW, PAN (4X12)
$1.11¢556
1
#22
93500-04012-0H
SCREW, PAN (4X12)
$1.11¢556
1
#23
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#023
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
