TRANSMISSION MAINSHAFT CRF1000D

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

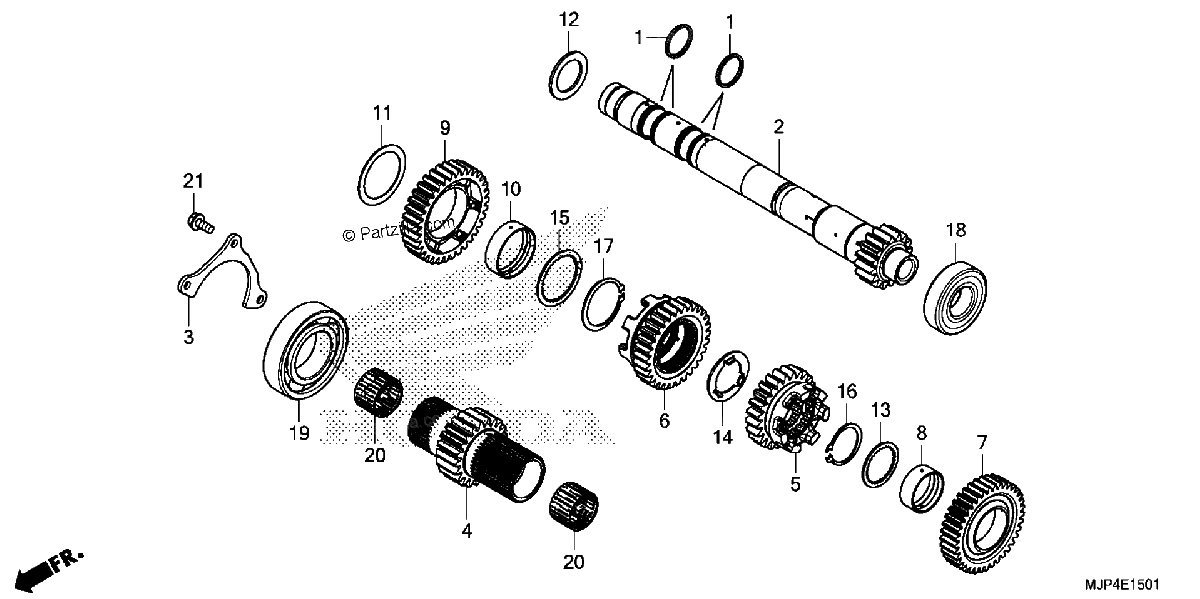

Diagrama de TRANSMISSION MAINSHAFT CRF1000D

Repuestos

#1
22815-MGE-D01
RING, SEAL (28MM)
$4.58¢2 288
1
#2
23210-MJP-G80
MAINSHAFT (INNER)
$372.63¢186 313
1
#3
23213-HL4-000
PLATE, BEARING SETTING
$7.24¢3 619
1
#4
23231-MJP-G80
MAINSHAFT (OUTER)
$288.34¢144 169
1
#5
23451-MJP-G80
GEAR, MAINSHAFT THIRD (24T)
$142.70¢71 350
1
#6
23471-MJP-G80
GEAR, MAINSHAFT FOURTH (30T)
$156.74¢78 369
1
#7
23491-MJP-G80
GEAR, MAINSHAFT FIFTH (37T)
$150.94¢75 469
1
#8
23492-HL4-000
COLLAR (32X35X13.5)
$21.27¢10 638
1
#9
23511-MJP-G80
GEAR, MAINSHAFT SIXTH (34T)
$145.19¢72 594
1
#10
23512-MGE-D00
COLLAR (40X43X12.5)
$19.04¢9 519
1
#11
90403-MK2-300
WASHER
$6.44¢3 219
1
#12
90506-751-000
WASHER, DISTANCE (1MM)
No Disponible
1
#12
90445-KE5-000
WASHER (32MM)
$12.59¢6 294
1
#13
90452-MCA-000
WASHER, SPLINE (32X17X1.667)
$3.55¢1 775
1
#14
90463-HL4-000
WASHER, SPECIAL (28X42X2)
$7.30¢3 650
1
#15
90493-MGE-D00
WASHER, SPLINE (40MM)
$10.39¢5 194
1
#16
90604-MCA-780
CIRCLIP (32MM)
$4.45¢2 225
1
#17
90605-MGE-D00
CIRCLIP (40MM)
$8.94¢4 469
1
#18
91003-MJP-G81
BEARING, RADIAL BALL (25X56X15)
$61.31¢30 656
1
#19
91023-HL4-003
BEARING, RADIAL BALL (40X76X18)
$65.74¢32 869
1
#20
91024-HL4-003
BEARING, NEEDLE (28X32X21)
$15.26¢7 631
1
#21
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
