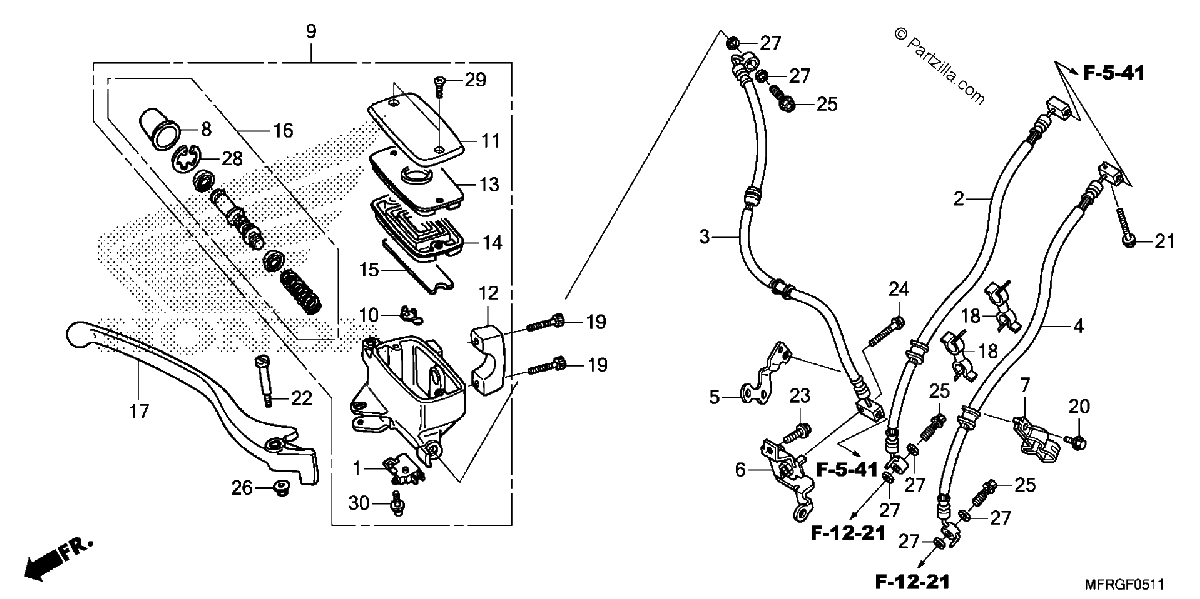

FRONT BRAKE MASTER CYLINDER 3
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SWITCH ASSY., FR. STOP
$15.36¢7 682
#2
HOSE C, SUB-BRAKE
$70.89¢35 443
#3
HOSE A, FR. BRAKE
$67.29¢33 643
#4
HOSE F, FR. BRAKE
$61.87¢30 935
#5
BRACKET, L. FR. BRAKE HOSE
$4.73¢2 363
#6
STAY, BRAKE JOINT
$17.34¢8 671
#7
CLAMP, FR. BRAKE HOSE
$10.65¢5 325
#8
BOOT
$13.10¢6 549
#9
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
$302.28¢151 139
#10
PROTECTOR
$4.78¢2 392
#11
CAP, MASTER CYLINDER (NISSIN)
$23.94¢11 971
#12
HOLDER, MASTER CYLINDER (NISSIN)
$22.13¢11 063
#13
PLATE, DIAPHRAGM
$11.37¢5 687
#14
DIAPHRAGM
$16.26¢8 131
#15
FLOAT, FR. MASTER CYLINDER (NISSIN)
$5.01¢2 507
#16
MASTER CYLINDER SET
$42.69¢21 344
#17
LEVER, R. HANDLE (COO)
$17.54¢8 769
#18
CLIP, SENSOR HOSE
$3.89¢1 943
#18
CLIP, SENSOR HOSE
$3.89¢1 943
#19
BOLT, SOCKET (6X22)
$1.71¢857
#20
BOLT, FLANGE (6X10)
$1.60¢799
#21
BOLT, FLANGE (6X25)
$2.43¢1 213
#22
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
#23
BOLT, FLANGE (6X12)
$1.70¢851
#24
BOLT, FLANGE (6X25)
$1.70¢851
#25
BOLT, OIL (10X22)
$8.18¢4 088
#26
NUT, CAP (6MM)
$2.54¢1 271
#27
WASHER, OIL BOLT
$4.46¢2 231
#28
CIRCLIP
$2.85¢1 426
#29
SCREW, FLAT (4X12)
$1.07¢535
#29
SCREW, FLAT (4X12)
$1.07¢535
#30
SCREW-WASHER (4X12)
$1.59¢793
#30
SCREW-WASHER (4X12)
$1.59¢793
