FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

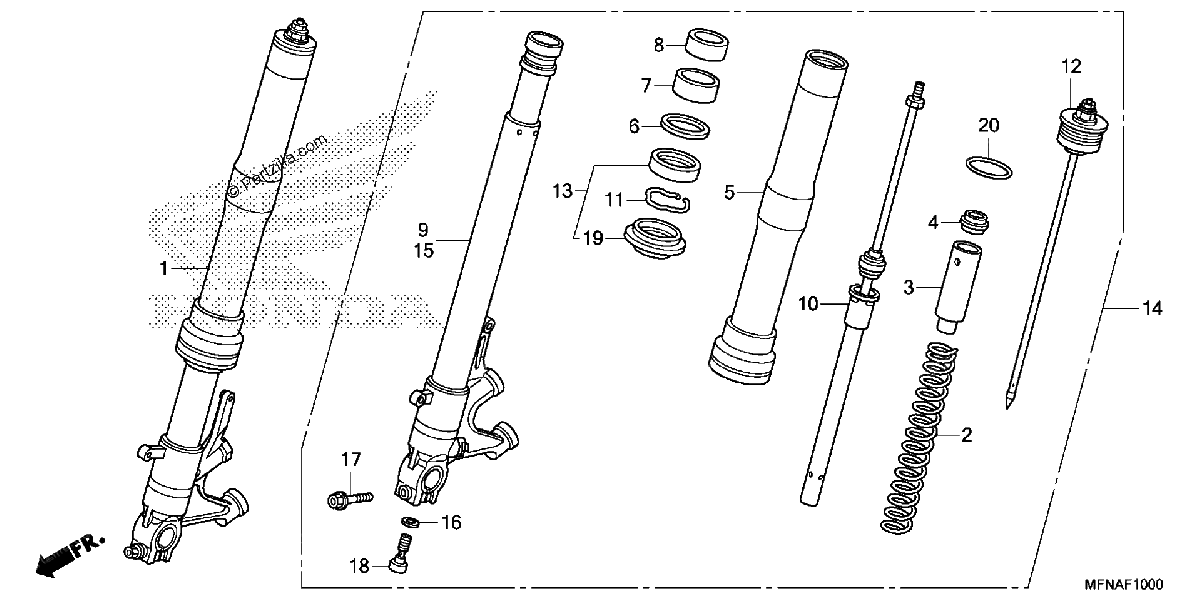

Diagrama de FRONT FORK

Repuestos

#1
51400-MFN-309
FORK ASSY., R. FR. (COO)
No Disponible
1
#2
51401-MFN-D01
SPRING, FR. FORK
$85.81¢42 907
1
#3
51403-MFG-D01
COLLAR, SPRING
$12.52¢6 262
1
#4
51406-MW4-003
STOPPER, SPRING SEAT
$8.82¢4 410
1
#5
51410-MFN-306
TUBE (OUTER) (COO)
$658.14¢329 072
1
#6
51412-MEL-003
RING, BACK-UP
$6.24¢3 122
1
#7
51414-MFN-D01
BUSH, GUIDE
$7.89¢3 944
1
#8
51415-MFN-D01
BUSH, SLIDER
$32.92¢16 462
1
#9
51425-MFN-D01
PIPE, R. SLIDE
$467.19¢233 594
1
#10
51430-MFN-D01
DAMPER, FR.
$662.25¢331 125
1
#11
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#11
51447-MBL-611
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#12
51454-MFN-D01
BOLT, FR. FORK
$119.39¢59 696
1
#13
51490-MFL-003
SEAL SET, FR. FORK
$21.36¢10 678
1
#14
51500-MFN-309
FORK ASSY., L. FR. (COO)
$1360.98¢680 490
1
#15
51525-MFN-D01
PIPE, L. SLIDE
$467.19¢233 594
1
#16
52442-KA3-711
WASHER, SPECIAL (10MM)
$2.85¢1 426
1
#17
90109-MR7-000
BOLT, FLANGE (8X45)
$5.51¢2 754
1
#18
90126-MR7-003
BOLT, SOCKET (10X35)
$17.50¢8 752
1
#19
91254-MEJ-003
DUST SEAL
$13.80¢6 900
1
#20
91258-GF4-003
O-RING (42.2X2.4)
$6.59¢3 295
1
