RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

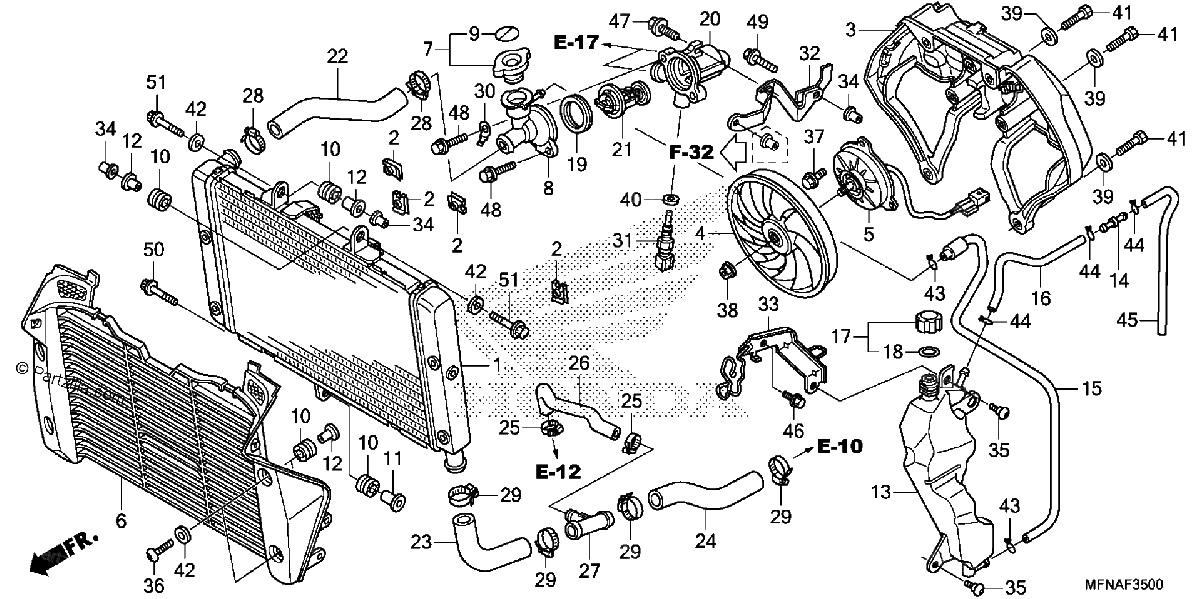

Diagrama de RADIATOR

Repuestos

#1
19010-MFN-305
RADIATOR (COO)
$304.63¢152 313
1
#2
19014-KEA-003
NUT, SETTING (6MM)
$3.75¢1 875
1
#3
19015-MFN-D00
SHROUD
$29.10¢14 550
1
#4
19020-MFG-D01
FAN, COOLING
$52.88¢26 438
1
#5
19030-MFN-D01
MOTOR ASSY., FAN
$313.40¢156 700
1
#6
19032-MFN-D00
GRILLE, RADIATOR
$31.05¢15 525
1
#7
19037-GEE-710
CAP, RADIATOR
$35.16¢17 581
1
#8
19038-MEJ-000
NECK, FILLER
$102.46¢51 231
1
#9
19046-PAA-A00
LABEL, RADIATOR CAP
$3.65¢1 825
1
#10
19051-KA3-830
RUBBER, RADIATOR MOUNTING
$4.01¢2 006
1
#11
19052-MFG-D00
COLLAR, RADIATOR MOUNTING
$4.14¢2 069
1
#12
19052-MGH-640
COLLAR, RADIATOR MOUNTING
$3.20¢1 600
1
#13
19101-MFN-D00
TANK, RADIATOR RESERVE
$36.58¢18 288
1
#14
19102-KT8-000
JOINT, TUBE
$8.03¢4 013
1
#15
19103-MFN-D00
TUBE, FILLER-RESERVE TANK
$11.41¢5 706
1
#16
19104-MFN-D00
TUBE, RESERVE TANK DRAIN
$7.15¢3 575
1
#17
19105-MG8-000
CAP ASSY., RESERVE TANK
$14.71¢7 356
1
#18
19107-MG8-000
GASKET, RESERVE TANK
$5.94¢2 969
1
#19
19305-KV3-010
RUBBER, THERMOSTAT
$7.35¢3 675
1
#20
19310-MFA-D00
CASE, THERMOSTAT
$60.38¢30 188
1
#21
19320-MFJ-D01
THERMOSTAT
$40.03¢20 013
1
#22
19502-MFN-D00
HOSE B, RADIATOR (UPPER)
$16.23¢8 113
1
#23
19503-MFN-D00
HOSE A, RADIATOR (LOWER)
$12.41¢6 206
1
#24
19504-MFN-D00
HOSE B, RADIATOR (LOWER)
$16.27¢8 137
1
#25
19505-KS6-700
CLAMP A, WATER HOSE
$14.94¢7 469
1
#26
19505-MFN-D60
HOSE, OIL COOLER
$40.04¢20 019
1
#27
19511-MFN-D00
JOINT, HOSE (THREE-WAY)
$24.40¢12 200
1
#28
19516-GAG-003
CLAMP, HOSE (30-37MM)
$16.15¢8 075
1
#29
19516-MER-D10
CLAMP, HOSE
$9.86¢4 931
1
#30
32152-MB3-000
CONNECTOR, GROUND
$2.50¢1 250
1
#31
37870-KRJ-901
SENSOR ASSY., WATER TEMPERATURE
$35.96¢17 981
1
#32
50140-MFN-D00
STAY, FILLER NECK
$4.26¢2 131
1
#33
50224-MFN-D00
STAY, CLUTCH CABLE
$15.02¢7 512
1
#34
90111-KFB-000
NUT, SPECIAL (6X1.0)
$4.01¢2 006
1
#35
90113-KTP-900
BOLT, SPECIAL HEX. (6X14)
$3.85¢1 925
1
#36
90114-KSV-J10
BOLT, SPECIAL (6X25)
$2.54¢1 269
1
#37
90196-MBB-003
BOLT, FLANGE (5X10)
$3.43¢1 713
1
#38
90315-MK3-003
NUT, SERRATE (5MM)
$2.99¢1 494
1
#39
90417-KB5-930
WASHER, PLAIN (6MM)
$12.95¢6 475
1
#40
90454-MC7-000
WASHER, SPECIAL (12MM)
$3.36¢1 681
1
#41
92101-06016-0G
BOLT, HEX. (6X16)
$1.76¢881
1
#41
92201-06016-0G
BOLT, HEX. (6X16)
$1.76¢881
1
#42
94103-06700
WASHER, PLAIN (6MM)
$0.93¢463
1
#43
95002-02120
CLIP, TUBE (B12)
$2.39¢1 194
1
#44
95002-70000
CLIP, TUBE (C11)
$2.11¢1 056
1
#45
95005-70003-30M
BULK HOSE, VACUUM (7X3000) OEM CUT SIZE: (7X200)
$27.41¢13 706
1
#46
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
#47
95701-06020-00
BOLT, FLANGE (6X20)
$2.27¢1 138
1
#48
96001-06018-00
BOLT, FLANGE (6X18)
$2.21¢1 106
1
#49
96001-06025-00
BOLT, FLANGE (6X25)
$2.70¢1 350
1
#50
96001-06030-07
BOLT, FLANGE (6X30)
$2.31¢1 156
1
#51
96001-06035-07
BOLT, FLANGE (6X35)
$2.79¢1 394
1
