FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

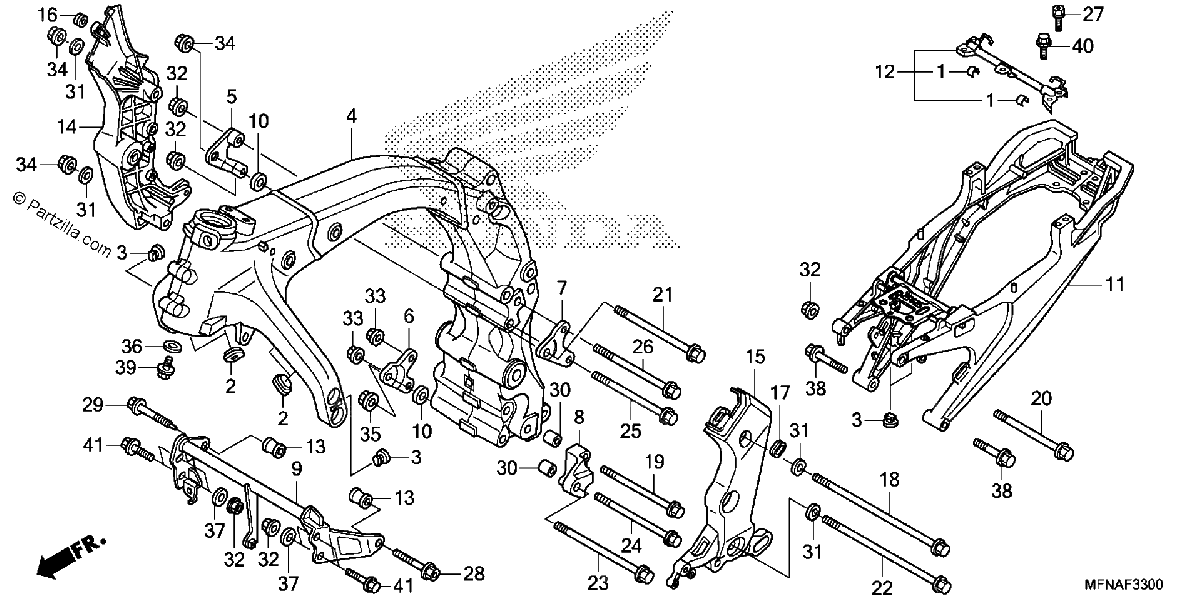

Diagrama de FRAME

Repuestos

#1
16911-MAH-300
PROTECTOR
$7.69¢3 847
1
#2
19111-MFG-D00
GROMMET, RR. RADIATOR COVER
$0.48¢241
1
#3
47117-196-000
RUBBER, STOPPER
$3.32¢1 662
1
#4
50100-MFN-L60ZA
FRAME *NH303M* (MAT AXIS GRAY METALLIC)
No Disponible
1
#5
50125-MFN-D00
PLATE B, R. ENGINE HANGER
$25.24¢12 621
1
#6
50126-MFN-D00
PLATE C, R. ENGINE HANGER
$11.20¢5 600
1
#7
50127-MFN-D00
PLATE B, L. ENGINE HANGER
$7.67¢3 835
1
#8
50128-MFN-D00
BRACKET C, L. ENGINE HANGER
$69.55¢34 776
1
#9
50130-MFN-L60
HANGER, FR. ENGINE
$161.56¢80 782
1
#10
50192-MFN-D00
COLLAR, ENGINE HANGER
$7.58¢3 789
1
#11
50200-MFN-D60ZA
RAIL ASSY., SEAT *NH303M* (MAT AXIS GRAY METALLIC)
$724.12¢362 060
1
#12
50204-MFN-D60
PIPE, CENTER CROSS
$44.68¢22 339
1
#13
50350-MFN-D60
COLLAR, FR. ENGINE HANGER
$8.88¢4 439
1
#14
50600-MFN-D00ZF
BRACKET, R. PIVOT *R348* (HYPER RED)
$344.56¢172 282
1
#15
50700-MFN-D00ZF
BRACKET, L. PIVOT *R348* (HYPER RED)
$386.19¢193 097
1
#16
83501-MG7-000
GROMMET, SIDE COVER
$3.09¢1 547
1
#17
83601-MB0-000
GROMMET A, SIDE COVER
$5.04¢2 519
1
#18
90101-MFG-D00
BOLT, FLANGE (12X306)
$19.72¢9 861
1
#19
90102-MER-R60
BOLT, FLANGE (10X190)
$8.14¢4 071
1
#20
90103-162-000
BOLT, ENGINE HANGER
$12.99¢6 498
1
#21
90103-MFN-D00
BOLT, FLANGE (12X186)
$18.05¢9 027
1
#22
90104-MFA-D00
BOLT, ENGINE HANGER (12X312)
$15.93¢7 964
1
#23
90104-MFN-D00
BOLT, FLANGE (12X216)
$18.58¢9 292
1
#24
90105-MFN-D00
BOLT, FLANGE (10X196)
$8.23¢4 117
1
#25
90106-HN8-000
BOLT, FLANGE (10X164)
$6.67¢3 335
1
#26
90106-KJ9-000
BOLT, FLANGE (10X180)
$12.57¢6 285
1
#27
90115-MJ1-830
BOLT, SPECIAL (8MM)
$3.13¢1 564
1
#28
90164-MFG-D00
BOLT, FLANGE (12X65)
$11.99¢5 997
1
#29
90164-MFN-L60
BOLT, FLANGE (12X80)
$27.15¢13 576
1
#30
90199-MBW-000
PIN, DOWEL (10X16)
$3.39¢1 696
1
#31
90440-GT4-970
WASHER, PLAIN (12MM)
$3.09¢1 547
1
#32
94050-10000
NUT, FLANGE (10MM)
$1.75¢874
1
#33
90303-428-900
NUT, FLANGE (10MM)
$3.74¢1 869
1
#33
94050-10070
NUT, FLANGE (10MM)
$3.74¢1 869
1
#34
94050-12000
NUT, FLANGE (12MM)
$1.17¢586
1
#35
94050-12070
NUT, FLANGE (12MM)
$1.60¢799
1
#36
94101-06700
WASHER, PLAIN (6MM)
$1.12¢558
1
#37
94101-10000
WASHER, PLAIN (10MM)
$1.36¢678
1
#38
90151-HC5-000
BOLT, FLANGE (10X62)
$8.65¢4 324
1
#38
95801-10065-00
BOLT, FLANGE (10X65)
$8.42¢4 209
1
#39
96001-06008-07
BOLT, FLANGE (6X8)
$1.12¢558
1
#40
96300-08016-00
BOLT, FLANGE (8X16)
$1.66¢828
1
#41
96300-10040-00
BOLT, FLANGE (10X40)
$3.36¢1 679
1
