FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

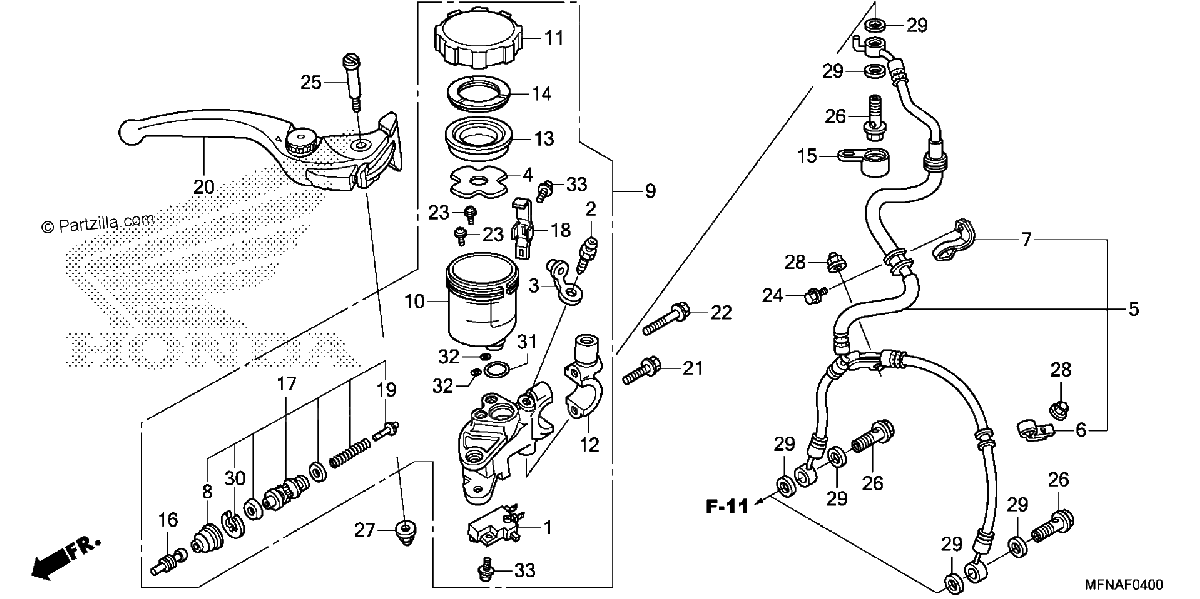

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#1
35340-MEL-003
SWITCH ASSY., FR. STOP
$17.66¢8 831
1
#2
43352-568-003
SCREW, BLEEDER (NISSIN)
$9.63¢4 813
1
#3
43353-461-771
CAP, BLEEDER
$6.13¢3 063
1
#4
43523-MAH-671
FLOAT, RR. MASTER CYLINDER
$5.24¢2 619
1
#5
45125-MFN-D61
HOSE, FR. BRAKE
$104.32¢52 162
1
#6
45158-MFN-D00
CLAMP A, FR. BRAKE HOSE
$8.69¢4 344
1
#7
45159-MFN-D00
CLAMP B, FR. BRAKE HOSE
$8.14¢4 069
1
#8
45504-MCF-006
BOOT
$15.29¢7 644
1
#9
45510-MFN-305
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
$574.46¢287 231
1
#10
45511-MFN-D02
CUP, OIL
$17.89¢8 944
1
#11
45513-MEL-D21
CAP, OIL CUP
$21.39¢10 694
1
#12
45518-MFN-D01
HOLDER, MASTER CYLINDER
$14.40¢7 200
1
#13
45520-300-000
DIAPHRAGM
$10.59¢5 294
1
#14
45521-MJ6-006
PLATE, DIAPHRAGM
$4.91¢2 456
1
#15
45522-MFN-D00
BOOT, MASTER CYLINDER
$5.93¢2 963
1
#16
45525-MEL-016
ROD, PUSH
$17.05¢8 525
1
#17
45530-MFN-D01
MASTER CYLINDER SET
$67.24¢33 619
1
#18
45535-MR8-901
PLATE, STOP
$6.61¢3 306
1
#19
46140-MEL-006
GUIDE, SPRING
$5.71¢2 856
1
#20
53170-MEL-305
LEVER ASSY., R. HANDLE (COO)
$61.01¢30 506
1
#21
90101-MBZ-G00
BOLT, FLANGE (6X22)
$1.85¢925
1
#22
90101-MFN-D00
BOLT, FLANGE (6X32)
$3.21¢1 606
1
#23
90101-MR7-006
SCREW, TRIPLE (4X11)
$4.00¢2 000
1
#24
90102-MW3-600
BOLT, FLANGE (6X10)
$1.79¢894
1
#25
90114-MCF-006
BOLT, HANDLE LEVER
$7.05¢3 525
1
#26
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#27
90201-415-000
NUT, CAP (6MM)
$2.76¢1 381
1
#28
90201-428-900
NUT, CAP
$2.88¢1 438
1
#29
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#30
90651-MCF-006
CIRCLIP
$2.91¢1 456
1
#31
91212-422-006
O-RING (14.8X2.4)
$3.30¢1 650
1
#32
91355-MG9-006
O-RING
$3.81¢1 906
1
#33
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#33
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
