SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

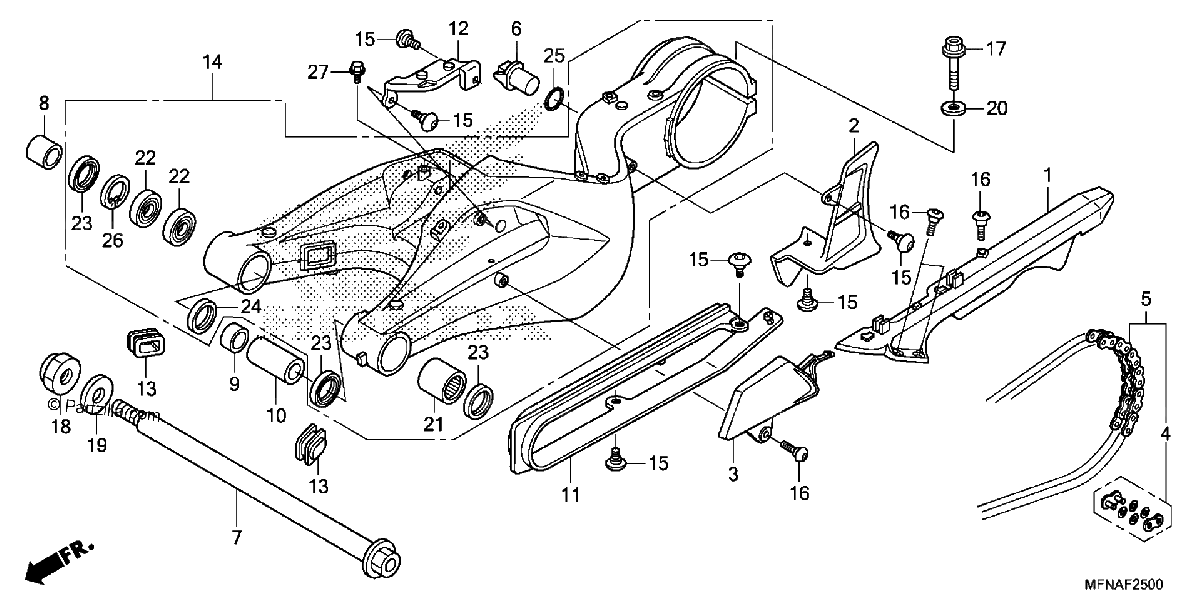

Diagrama de SWINGARM

Repuestos

#1
40510-MFN-D00
CASE A, DRIVE CHAIN
$6.83¢3 413
1
#2
40515-MFN-D00
GUIDE, RR. BRAKE AIR
$7.69¢3 844
1
#3
40520-MFN-D00
CASE B, DRIVE CHAIN
$5.42¢2 713
1
#4
40535-MZ1-316
MASTER LINK (DAIDO)
No Disponible
1
#5
40540-MZ1-316
CHAIN, DRIVE (DID50 VA8-120ZB) (DAIDO)
$393.44¢196 719
1
#6
43433-KV3-951
STOPPER, TORQUE LINK
$15.65¢7 825
1
#7
52101-MCZ-000
BOLT, SWINGARM PIVOT
$43.44¢21 719
1
#8
52141-MER-D00
COLLAR A, PIVOT DISTANCE
$12.63¢6 313
1
#9
52142-MER-D00
COLLAR B, PIVOT DISTANCE
$28.15¢14 075
1
#10
52143-MER-D00
COLLAR, PIVOT DISTANCE
$50.86¢25 431
1
#11
52170-MFN-D00
SLIDER, CHAIN
$19.57¢9 788
1
#12
52180-MFN-D00
GUIDE, CHAIN
$4.04¢2 019
1
#13
52190-MFN-D00
GROMMET, SWINGARM
$1.15¢575
1
#14
52200-MFN-T60
SWINGARM SUB-ASSY., RR.
$804.39¢402 194
1
#15
90111-MFN-D00
SCREW, SPECIAL (5X12)
$2.24¢1 119
1
#16
90114-KPB-750
SCREW, SPECIAL (5X14)
$2.97¢1 487
1
#17
90155-MBG-000
BOLT, FLANGE (16X51)
$20.45¢10 225
1
#18
90306-MCS-G01
NUT, U (18MM)
$8.26¢4 131
1
#19
90401-MAS-000
WASHER (20X31.5X2)
$3.89¢1 944
1
#20
90559-HA8-000
WASHER, PLAIN (16MM)
$8.43¢4 213
1
#21
91071-MR7-003
BEARING, NEEDLE
$29.82¢14 913
1
#22
91072-MR7-003
BEARING, RADIAL BALL (20X37X9)
$21.06¢10 531
1
#23
91202-MR7-003
DUST SEAL (28X37X4)
$7.70¢3 850
1
#24
91261-KZ3-861
DUST SEAL (27X34X4)
$9.45¢4 725
1
#25
91355-759-003
O-RING (21.8X2.4)
$2.13¢1 063
1
#26
94520-37000
CIRCLIP, INNER (37MM)
$2.81¢1 406
1
#27
96001-06008-07
BOLT, FLANGE (6X8)
$1.21¢606
1
