TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

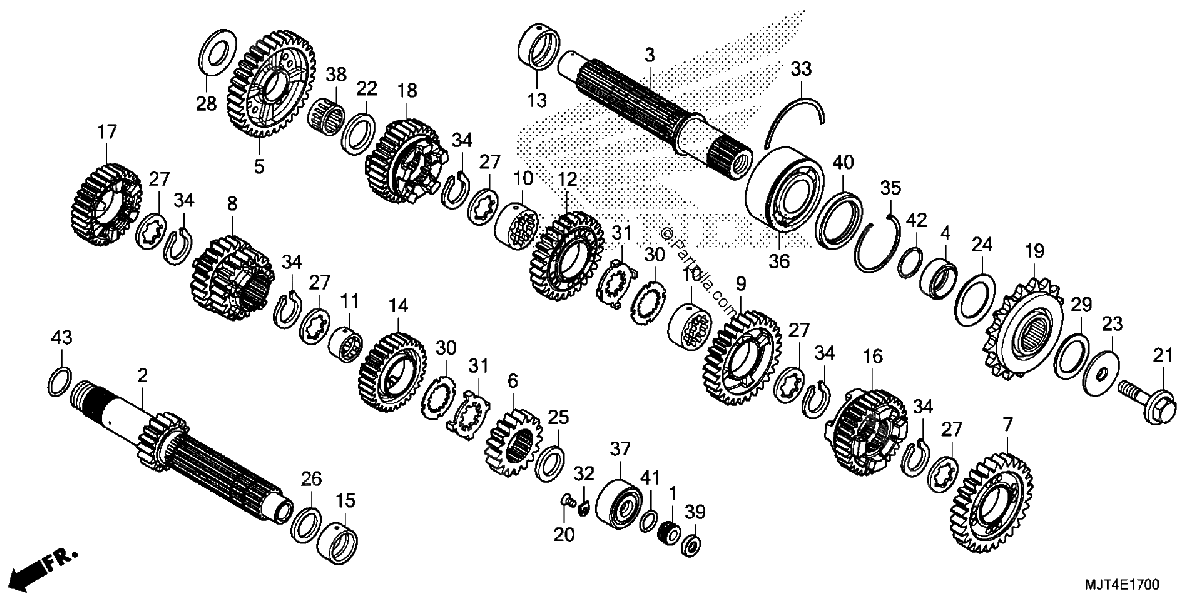

Diagrama de TRANSMISSION

Repuestos

#1
15533-MJT-E00
ORIFICE, MAIN AXIS
$69.79¢34 897
1
#2
23210-MJT-E00
MAINSHAFT (16T)
$2652.66¢1 326 329
1
#3
23220-MJT-E00
COUNTERSHAFT
$2206.88¢1 103 442
1
#4
23225-MJT-E00
COLLAR, COUNTERSHAFT
$226.85¢113 424
1
#5
23421-MJT-E00
GEAR, COUNTERSHAFT FIRST (34T)
$1554.29¢777 147
1
#6
23431-MJT-E00
GEAR, MAINSHAFT SECOND (17T)
$929.99¢464 997
1
#7
23441-MJT-E00
GEAR, COUNTERSHAFT SECOND (28T)
$1345.48¢672 738
1
#8
23451-MJT-E00
GEAR, MAINSHAFT THIRD FOURTH (19T/23T)
$2512.81¢1 256 404
1
#9
23461-MJT-E00
GEAR, COUNTERSHAFT THIRD (26T)
$1498.34¢749 168
1
#10
23462-MAT-000
COLLAR, SPLINE (30X11)
$27.24¢13 622
1
#11
23463-MCA-000
COLLAR, SPLINE (30X14)
$15.84¢7 918
1
#12
23481-MJT-E00
GEAR, COUNTERSHAFT FOURTH (28T)
$1436.18¢718 089
1
#13
23482-MGE-000
COLLAR (30X33X12)
$12.52¢6 262
1
#14
23491-MJT-E00
GEAR, MAINSHAFT FIFTH (30T)
$1660.15¢830 076
1
#15
23493-MGE-D00
COLLAR (30X33X12.8)
$12.73¢6 365
1
#16
23501-MJT-E00
GEAR, COUNTERSHAFT FIFTH (33T)
$2411.61¢1 205 804
1
#17
23511-MJT-E00
GEAR, MAINSHAFT SIXTH (31T)
$2514.41¢1 257 203
1
#18
23521-MJT-E00
GEAR, COUNTERSHAFT SIXTH (32T)
$2469.69¢1 234 847
1
#19
23803-MJT-E00
SPROCKET, DRIVE (17T)
$413.91¢206 954
1
#20
90003-KRN-670
SCREW, SPECIAL FLAT (6X12)
$2.42¢1 208
1
#21
90009-MJT-E00
BOLT, DRIVE SPROCKET
$145.29¢72 646
1
#22
90402-HA5-000
WASHER, THRUST (24MM)
$4.08¢2 041
1
#23
90405-MJT-E00
WASHER (11X40X5)
$207.85¢103 926
1
#24
90406-MJT-E00
WASHER, SPRING (32MM)
$87.89¢43 947
1
#25
90451-KCR-000
WASHER, THRUST (22MM)
$2.75¢1 374
1
#26
90451-KPT-900
WASHER, THRUST (30X39X2)
No Disponible
1
#27
90452-MAT-000
WASHER, SPLINE (30X36X1.5)
$3.90¢1 949
1
#28
90455-ML7-000
WASHER B, THRUST (22MM) (BLUE)
$5.43¢2 714
1
#29
90457-HN2-000
WASHER, THRUST (29X40X2)
$5.30¢2 651
1
#30
90463-MAT-000
WASHER, SPLINE (30MM)
$5.40¢2 702
1
#31
90464-MAT-000
WASHER, LOCK (30MM)
$7.96¢3 979
1
#32
90473-MJT-E00
STOPPER, BEARING
$266.16¢133 078
1
#33
90603-MJT-E00
SET-RING (66MM)
$71.48¢35 742
1
#34
90604-MM5-000
CIRCLIP (30MM)
$4.99¢2 496
1
#35
90605-MJT-E00
CIRCLIP, OIL SEAL
$71.17¢35 587
1
#36
91008-MJT-E01
BEARING, BALL (5306)
$350.04¢175 019
1
#37
91024-MJT-E01
BEARING, NEEDLE (22X38X18)
$195.15¢97 577
1
#38
91026-MEL-003
BEARING, NEEDLE (24X28X10)
$12.88¢6 440
1
#39
91204-MJT-E01
OIL SEAL (8X18X5)
$57.12¢28 560
1
#40
91207-MJT-E01
OIL SEAL (38X50X7) (ARAI)
$57.24¢28 618
1
#41
91301-GR0-004
O-RING (15.2X1.5)
$3.21¢1 604
1
#42
91316-MJT-E00
O-RING (29.7X1.9)
$49.13¢24 564
1
#43
91360-VD6-003
O-RING (22.5X2.4)
$1.70¢851
1
