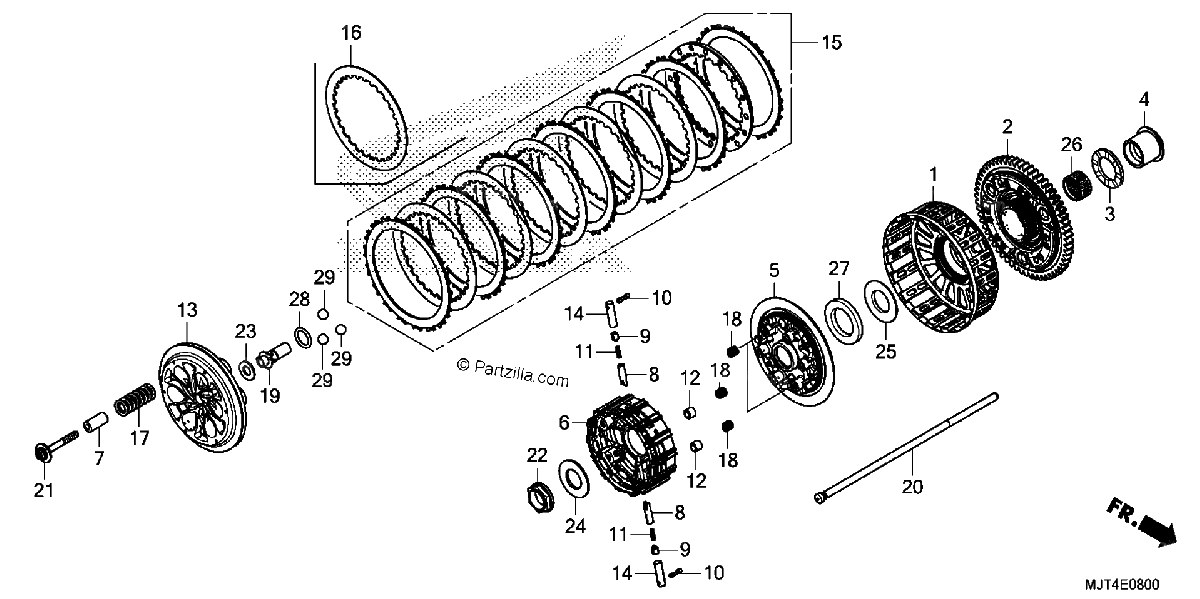

CLUTCH
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CLUTCH OUTER
$6390.00¢3 195 000
#2
GEAR, PRIMARY DRIVEN (58T)
$13774.96¢6 887 481
#3
COLLAR B, PRIMARY DRIVEN PLATE
$1300.29¢650 144
#4
COLLAR, PRIMARY DRIVEN PLATE
$3065.09¢1 532 544
#5
CENTER A, CLUTCH
$11747.54¢5 873 769
#6
CENTER B, CLUTCH
$12743.84¢6 371 919
#7
BOSS, CLUTCH CENTER
$34.59¢17 294
#8
PLUNGER, CLUTCH
$1768.49¢884 244
#9
STOPPER, PLUNGER
$61.66¢30 831
#10
PIN, STOPPER
$48.20¢24 100
#11
SPRING, PLUNGER
$91.82¢45 912
#12
COLLAR, SUB-SPRING
$49.40¢24 700
#13
PLATE, CLUTCH PRESSURE
$856.63¢428 313
#14
COLLAR, CLUTCH CENTER (B)
$472.85¢236 425
#15
DISK SET, CLUTCH (1.6MM)
$761.44¢380 719
#16
PLATE, CLUTCH (2.0MM)
$144.55¢72 275
#16
PLATE, CLUTCH (1.8MM)
$144.55¢72 275
#16
PLATE, CLUTCH (1.9MM)
$144.55¢72 275
#16
PLATE, CLUTCH (1.7MM)
$137.54¢68 769
#17
SPRING, CLUTCH (233N)
$10.43¢5 213
#18
SPRING, CLUTCH SUB
$8.94¢4 469
#19
PIECE, CLUTCH LIFTER
$359.80¢179 900
#20
ROD, LIFTER
$1278.61¢639 306
#21
BOLT, FLANGE TORX (6X45)
$11.39¢5 694
#22
NUT, FLANGE (24MM)
$252.53¢126 263
#23
WASHER, THRUST (11.7X23X2)
$27.59¢13 794
#24
WASHER B, SPECIAL (24.1X46X3)
$388.21¢194 106
#25
WASHER (28MM)
$145.31¢72 656
#26
BEARING, NEEDLE (34MM)
$10.06¢5 031
#27
OIL SEAL (35X54X5.5)
$74.16¢37 081
#28
O-RING (10.6X1.3)
$60.41¢30 206
#29
BALL, STEEL (#7) (7/32)
$1.64¢819
