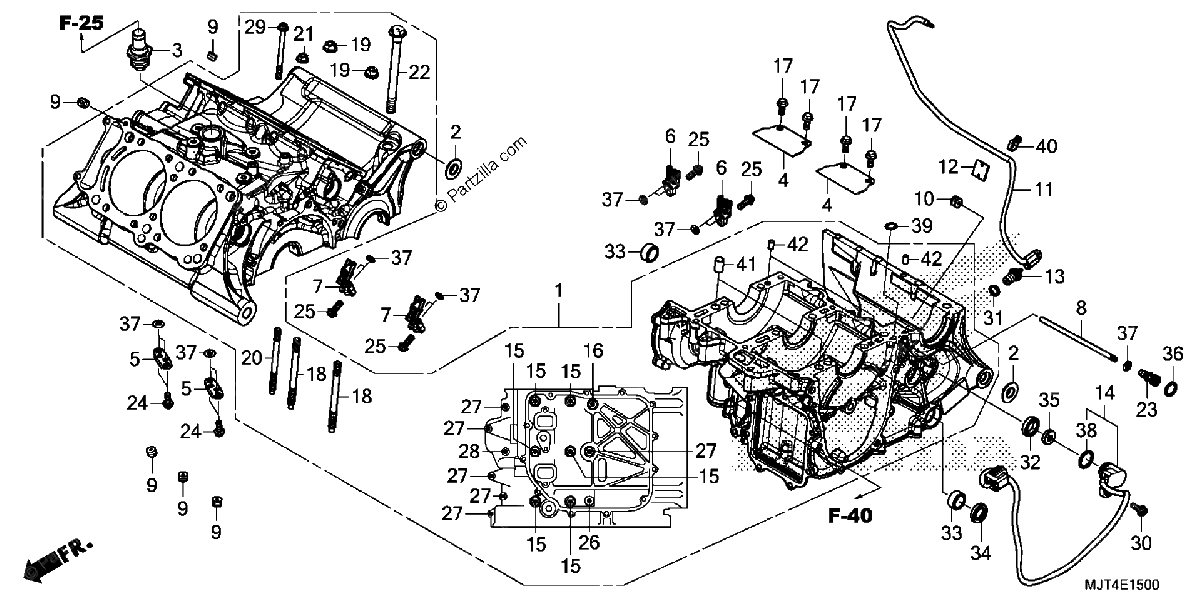

CRANKCASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CRANKCASE SET
$74332.93¢37 166 465
#2
COLLAR D, ENGINE HANGER
$83.92¢41 958
#3
JOINT, BREATHER
$193.59¢96 795
#4
PLATE, OIL SEPARATE
$201.25¢100 625
#5
PLUG, INLET PISTON JET
$943.83¢471 914
#6
JET, FR. EX. PISTON
$1714.09¢857 043
#7
JET, RR. EX. PISTON
$1739.09¢869 544
#8
PIPE, TRANSMISSION JET
$2461.32¢1 230 661
#9
ORIFICE (1MM)
$31.43¢15 715
#10
ORIFICE (2MM)
$33.44¢16 721
#11
SUB-WIRE, NEUTRAL
$62.51¢31 257
#12
BASE, MOUNT
$64.08¢32 039
#13
SWITCH Assembly., NEUTRAL
$22.60¢11 299
#14
SENSOR ASSY., ANGLE (350DEGREE)
$231.00¢115 500
#15
BOLT, FLANGE (9X93)
$188.81¢94 404
#16
BOLT, FLANGE (9X114)
$102.27¢51 135
#17
BOLT, FLANGE (6X12) (NSHF)
$3.36¢1 679
#18
BOLT, STUD (8X96.5)
$73.16¢36 582
#19
NUT, FLANGE (8MM)
$17.33¢8 665
#20
BOLT, STUD (7X90)
$80.79¢40 394
#21
NUT, FLANGE (7MM)
$11.05¢5 526
#22
BOLT, FLANGE (10X110)
$304.67¢152 335
#23
BOLT, SPECIAL OIL LINE
$182.17¢91 086
#24
BOLT, FLANGE TORX (6X14)
$67.46¢33 729
#25
BOLT, FLANGE TORX (6X16)
$67.46¢33 729
#26
BOLT, FLANGE TORX (6X36)
$67.82¢33 908
#27
BOLT, FLANGE TORX (6X40)
$69.29¢34 644
#28
BOLT, FLANGE TORX (6X45)
$69.29¢34 644
#29
BOLT, FLANGE TORX (6X70)
$73.92¢36 961
#30
BOLT, KNOCK TORX (5X16)
$258.36¢129 179
#31
WASHER, NEUTRAL
$2.28¢1 138
#32
BEARING, BALL (6802C3)
$31.22¢15 611
#33
BEARING, NEEDLE (15X21X10)
$16.76¢8 378
#34
OIL SEAL (15X24X5)
$5.43¢2 714
#34
OIL SEAL A
$6.34¢3 168
#34
OIL SEAL (15X24X5)
$6.34¢3 168
#34
OIL SEAL (15X24X5)
$6.34¢3 168
#35
OIL SEAL (7X18X5) (ARAI)
$4.83¢2 415
#36
O-RING (1.5X9.5)
$2.75¢1 374
#37
O-RING (2.8X1.2)
$8.03¢4 013
#38
O-RING (16.5X2.5)
$5.69¢2 846
#39
O-RING, CRANKCASE
$91.98¢45 989
#40
BAND, TY-RAP (2.4X92)
$13.29¢6 647
#41
PIN B, DOWEL (10X16)
$1.99¢995
#42
PIN, DOWEL (6X10)
$2.66¢1 328
