AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

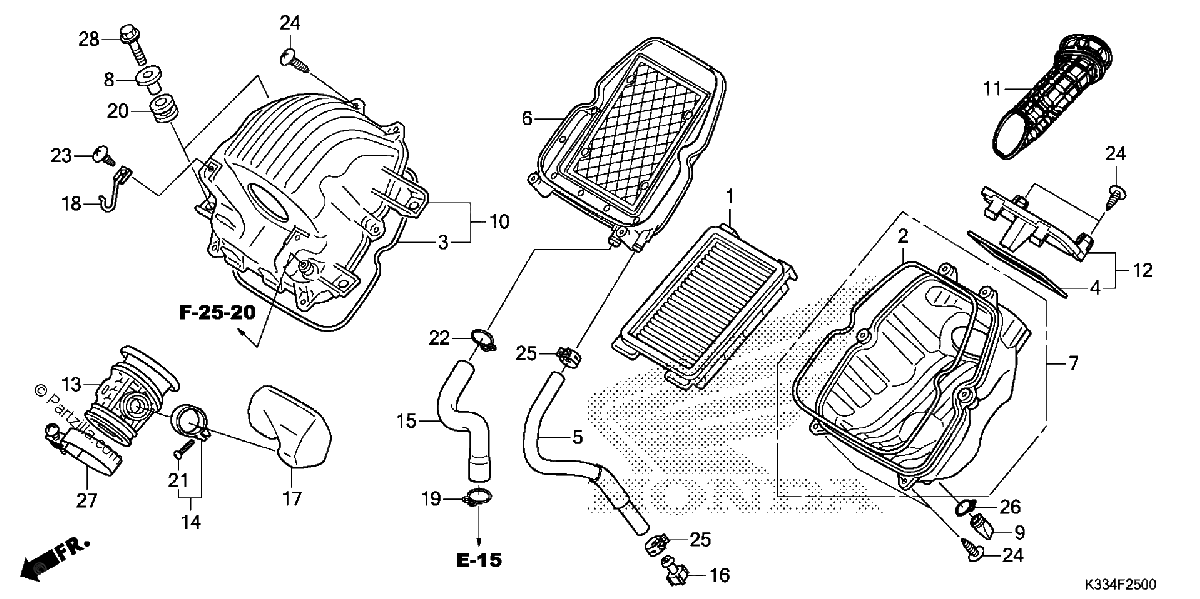

Diagrama de AIR CLEANER

Repuestos

#1
17211-KYJ-900
ELEMENT, AIR CLEANER
$15.43¢7 713
1
#2
17213-KYJ-900
SEAL, AIR CLEANER
$2.31¢1 156
1
#3
17213-KYJ-900
SEAL, AIR CLEANER
$2.31¢1 156
1
#4
17214-KYJ-900
SEAL, LID
$1.79¢894
1
#5
17215-KYJ-901
TUBE, AIR CLEANER DRAIN
$15.70¢7 850
1
#6
17220-KYJ-900
HOLDER, ELEMENT
$12.88¢6 438
1
#7
17225-KYJ-900
CASE SUB-ASSY., AIR CLEANER
$12.30¢6 150
1
#8
17232-KYJ-900
COLLAR, AIR CLEANER MOUNTING
$1.13¢563
1
#9
17234-KCW-871
TUBE, AIR CLEANER DRAIN
$3.33¢1 663
1
#10
17235-KYJ-900
COVER SUB-ASSY., AIR CLEANER
$20.67¢10 337
1
#11
17240-K33-D00
DUCT, INLET
$20.02¢10 013
1
#12
17245-KYJ-901
LID SUB-ASSY., AIR CLEANER
$5.02¢2 512
1
#13
17253-K33-D00
TUBE, AIR CLEANER CONNECTING
$35.58¢17 788
1
#14
17255-MCG-000
BAND, RESONATOR (28)
$11.89¢5 944
1
#15
17265-KYJ-900
TUBE, BREATHER
$6.85¢3 425
1
#16
17370-419-700
PLUG, BREATHER TUBE
$4.54¢2 269
1
#17
17410-KYJ-900
RESONATOR
$8.14¢4 069
1
#18
17512-KYJ-960
GUIDE, BREATHER TUBE
$5.49¢2 744
1
#19
17724-102-700
CLIP, SUB-TANK HOSE
$5.31¢2 656
1
#20
83545-KCJ-690
RUBBER, SIDE COVER
$1.80¢900
1
#21
93500-05025-0G
SCREW, PAN (5X25)
$0.96¢481
1
#22
90646-657-000
CLIP, AIR HOSE (16MM)
$8.89¢4 444
1
#23
93903-25280
SCREW, TAPPING (5X12)
$1.66¢831
1
#24
93903-25480
SCREW, TAPPING (5X20)
$0.86¢431
1
#25
95002-41200-00
CLAMP, TUBE (D12)
$3.01¢1 506
1
#26
95002-80000
CLIP, TUBE (C12)
$0.60¢300
1
#27
95018-56250
BAND, AIR CLEANER CONNECTING TUBE (56)
$6.56¢3 281
1
#28
95701-06020-08
BOLT, FLANGE (6X20)
$0.47¢238
1
