STEP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

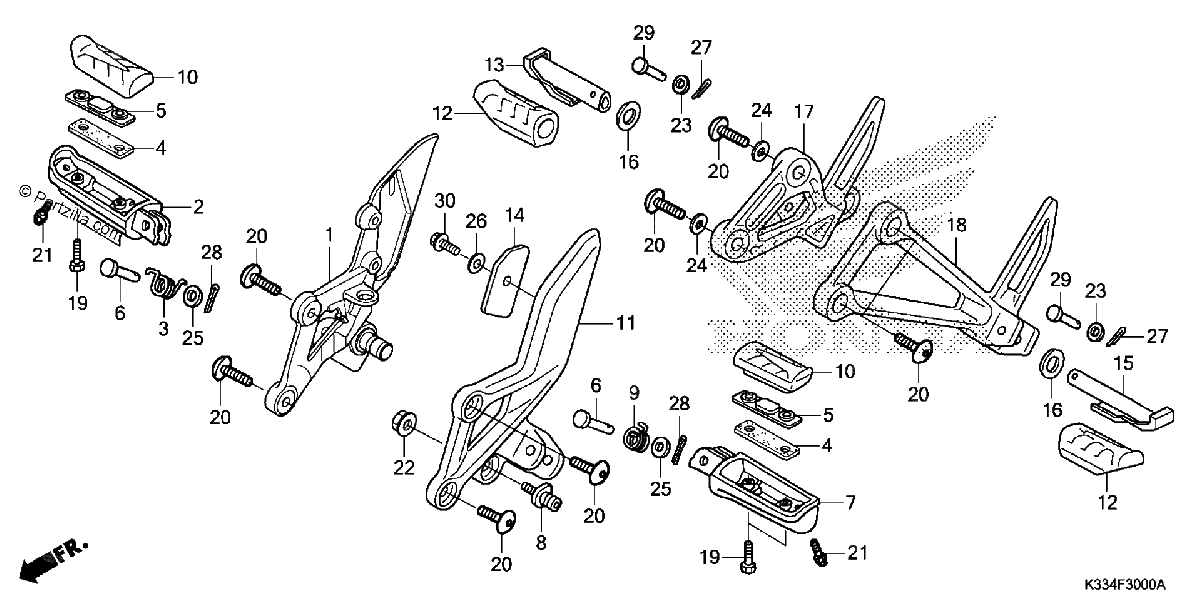

Diagrama de STEP

Repuestos

#1
50600-KYJ-900
HOLDER, Right STEP
$65.22¢32 608
1
#2
50612-KYJ-305
ARM, R. STEP (COO)
$27.88¢13 938
1
#3
50617-445-840
SPRING, R. STEP RETURN
$6.08¢3 042
1
#4
50618-MBG-D00
RUBBER, STEP (LOWER)
$3.36¢1 679
1
#5
50619-K33-D00
PLATE, STEP SETTING
$5.09¢2 547
1
#6
50639-ML0-010
PIN, STEP BAR
$5.65¢2 823
1
#7
50642-KYJ-305
ARM, L. STEP (COO)
$27.88¢13 938
1
#8
50643-KYJ-900
PIVOT, CHANGE PEDAL
$12.39¢6 193
1
#9
50644-445-840
SPRING, L. STEP RETURN
$6.08¢3 042
1
#10
50661-KYJ-305
RUBBER, MAIN STEP (COO)
$14.86¢7 429
1
#11
50700-KYJ-900
HOLDER, L STEP
$66.53¢33 264
1
#12
50710-KYJ-305
RUBBER, PILLION STEP (COO)
$12.81¢6 406
1
#13
50711-KYJ-305
BAR, Right PILLION STEP (COO)
$18.81¢9 407
1
#14
50711-KYJ-900
WEIGHT, STEP HOLDER
$3.98¢1 989
1
#15
50712-KYJ-305
BAR, L. PILLION STEP (COO)
$15.82¢7 912
1
#16
50714-KBA-930
PLATE, PILLION STEP SIDE
$1.75¢874
1
#17
50715-KYJ-900
HOLDER, R. PILLION STEP
$52.92¢26 462
1
#18
50725-KYJ-900
HOLDER, L PILLION STEP
$52.92¢26 462
1
#19
90115-MV9-000
BOLT, MAIN STEP RUBBER SETTING
$4.09¢2 047
1
#20
90127-KYJ-900
BOLT, SOCKET (8X22)
$1.95¢977
1
#21
92501-08008-0A
BOLT, CAP (8X8)
$1.33¢667
1
#22
94050-08080
NUT, FLANGE (8MM)
$1.06¢529
1
#23
94101-06000
WASHER, PLAIN (6MM)
$0.77¢385
1
#23
94101-06080
WASHER, PLAIN (6MM)
$0.77¢385
1
#23
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
#24
94101-08800
WASHER, PLAIN (8MM)
$2.12¢1 058
1
#25
94102-08000
WASHER, PLAIN (8MM)
$1.06¢529
1
#26
94103-06700
WASHER, PLAIN (6MM)
$0.85¢426
1
#27
94201-16150
PIN, SPLIT (1.6X15)
$1.23¢615
1
#27
94201-16250
PIN, COTTER (1.6X25)
$1.23¢615
1
#28
94201-20150
PIN, SPLIT (2.0X15)
$1.23¢615
1
#29
95015-82000
PIN B, PILLION STEP
$2.85¢1 426
1
#30
95701-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
