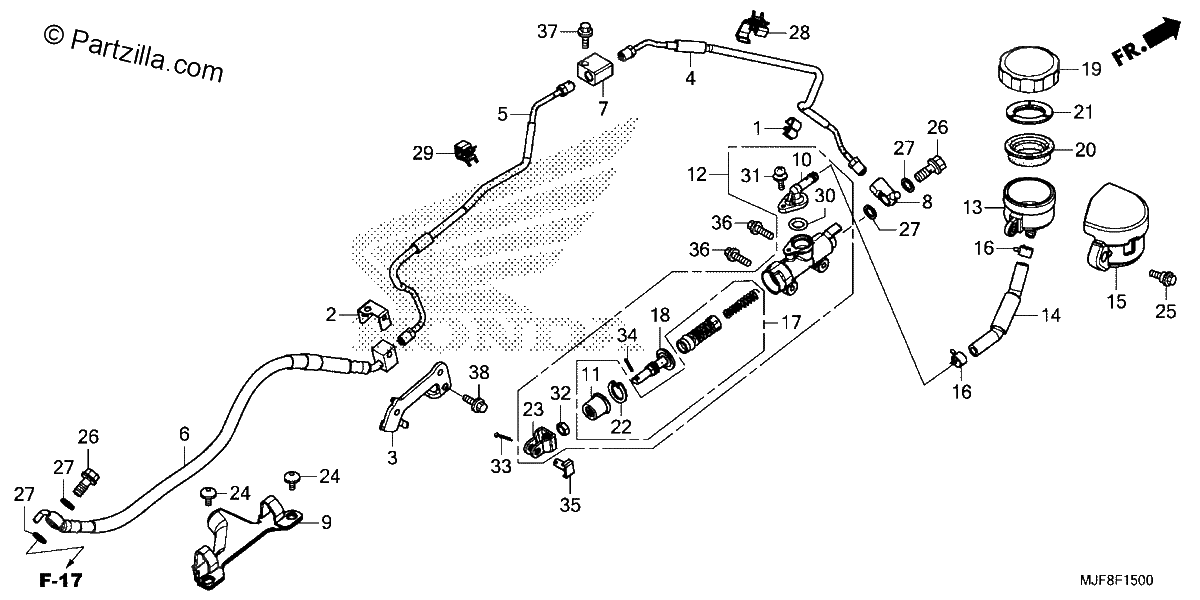

REAR BRAKE MASTER CYLINDER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP, PIPE
$8.64¢4 319
#002
STAY, SENSOR WIRE
$5.39¢2 694
#003
STAY, RR. BRAKE HOSE
$21.35¢10 675
#004
PIPE A, RR. BRAKE
$24.61¢12 306
#005
PIPE B, RR. BRAKE
$29.46¢14 731
#006
HOSE D, RR. BRAKE
$126.25¢63 125
#007
JOINT, BRAKE PIPE (2WAY)
$28.84¢14 419
#008
JOINT, BRAKE PIPE
$46.64¢23 319
#009
GUIDE, RR. BRAKE HOSE
$21.35¢10 675
#010
CONNECTOR, MASTER CYLINDER
$9.96¢4 981
#011
BOOT
$11.74¢5 869
#012
MASTER CYLINDER SUB-ASSY., RR. (COO)
$282.85¢141 425
#012
MASTER CYLINDER SUB-Assembly., Rear BRAKE (NISSIN)
$282.85¢141 425
#013
CUP, OIL
$41.79¢20 894
#014
HOSE, RR. BRAKE MASTER CYLINDER
$24.88¢12 438
#015
COVER, RR. MASTER CYLINDER CUP
$24.46¢12 231
#016
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#017
PISTON SET, MASTER CYLINDER (NISSIN)
$53.06¢26 531
#018
ROD, PUSH
$45.48¢22 738
#019
CAP, OIL CUP
$21.39¢10 694
#020
DIAPHRAGM
$10.59¢5 294
#021
PLATE, DIAPHRAGM
$4.91¢2 456
#022
CIRCLIP
$2.50¢1 250
#023
JOINT, BRAKE ROD
$18.40¢9 200
#024
SCREW, SPECIAL (5X14)
$3.83¢1 913
#025
BOLT, FLANGE (6X25)
$5.70¢2 850
#026
BOLT, OIL (10X22)
$8.89¢4 444
#027
WASHER, OIL BOLT
$4.85¢2 425
#028
CLAMP, BRAKE PIPE (7.0X2)
$3.65¢1 825
#029
CLAMP, BRAKE PIPE (7.0)
$3.91¢1 956
#030
O-RING (14.8X2.4)
$3.30¢1 650
#031
SCREW-WASHER (4X12)
$1.72¢862
#031
SCREW-WASHER (4X12)
$1.72¢862
#032
NUT, HEX. (8MM)
$1.60¢800
#033
PIN, SPLIT (2.0X15)
$1.34¢669
#034
PIN, SPRING (2X10)
$1.13¢563
#035
PIN D, JOINT
$5.15¢2 575
#036
BOLT, FLANGE (6X18)
$2.09¢1 044
#037
BOLT, FLANGE (6X12)
$2.31¢1 156
#038
BOLT, FLANGE (6X14)
$2.31¢1 156
