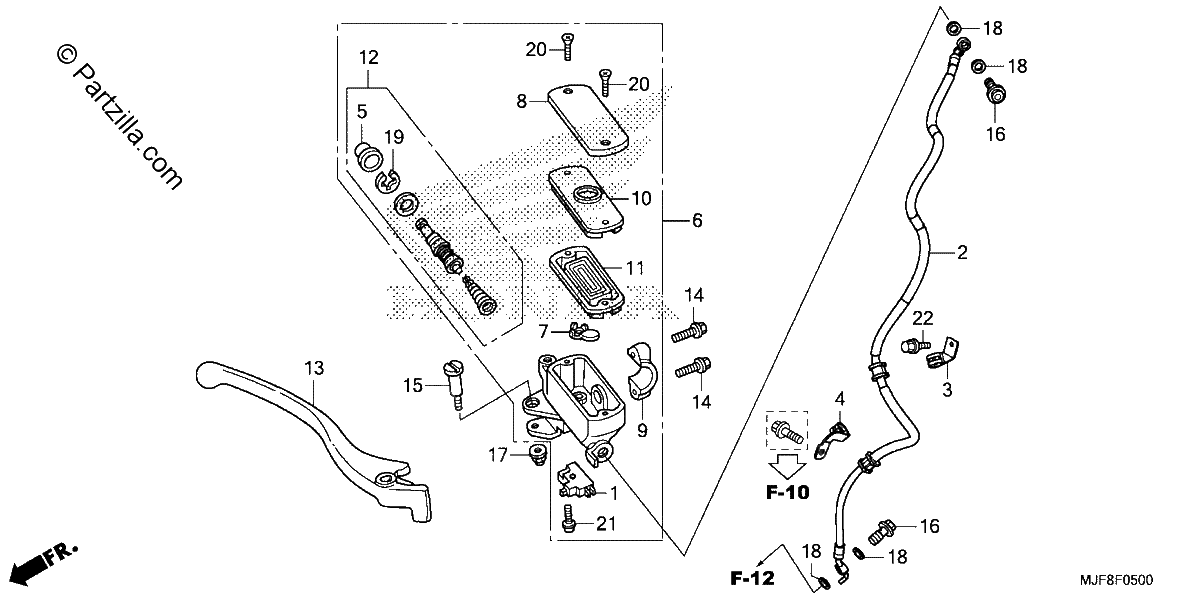

FRONT BRAKE MASTER CYLINDER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
#002
HOSE, Front BRAKE
$81.53¢40 768
#003
CLAMP A, Front BRAKE HOSE
$8.61¢4 307
#004
CLAMP B, Front BRAKE HOSE
$10.56¢5 278
#005
BOOT
$13.10¢6 549
#006
MASTER CYLINDER SUB-Assembly., Front.(COO)
$331.44¢165 721
#006
MASTER CYLINDER SUB-Assembly., Front.(NISSIN)
$331.44¢165 721
#007
PROTECTOR
$4.78¢2 392
#008
CAP, MASTER CYLINDER (NISSIN)
$23.94¢11 971
#009
HOLDER, MASTER CYLINDER
$14.48¢7 239
#010
PLATE, DIAPHRAGM
$11.37¢5 687
#011
DIAPHRAGM
$16.26¢8 131
#012
MASTER CYLINDER SET (NISSIN)
$30.56¢15 278
#013
LEVER, Right HANDLE (COO)
$25.04¢12 518
#014
BOLT, FLANGE (6X22)
$1.70¢851
#015
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
#016
BOLT, OIL (10X22)
$8.18¢4 088
#017
NUT, CAP (6MM)
$2.54¢1 271
#018
WASHER, OIL BOLT
$4.46¢2 231
#019
CIRCLIP
$2.85¢1 426
#020
SCREW, FLAT (4X12)
$1.07¢535
#020
SCREW, FLAT (4X12)
$1.07¢535
#021
SCREW-WASHER (4X12)
$1.59¢793
#021
SCREW-WASHER (4X12)
$1.59¢793
#022
BOLT, FLANGE (6X10)
$1.92¢960
