WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

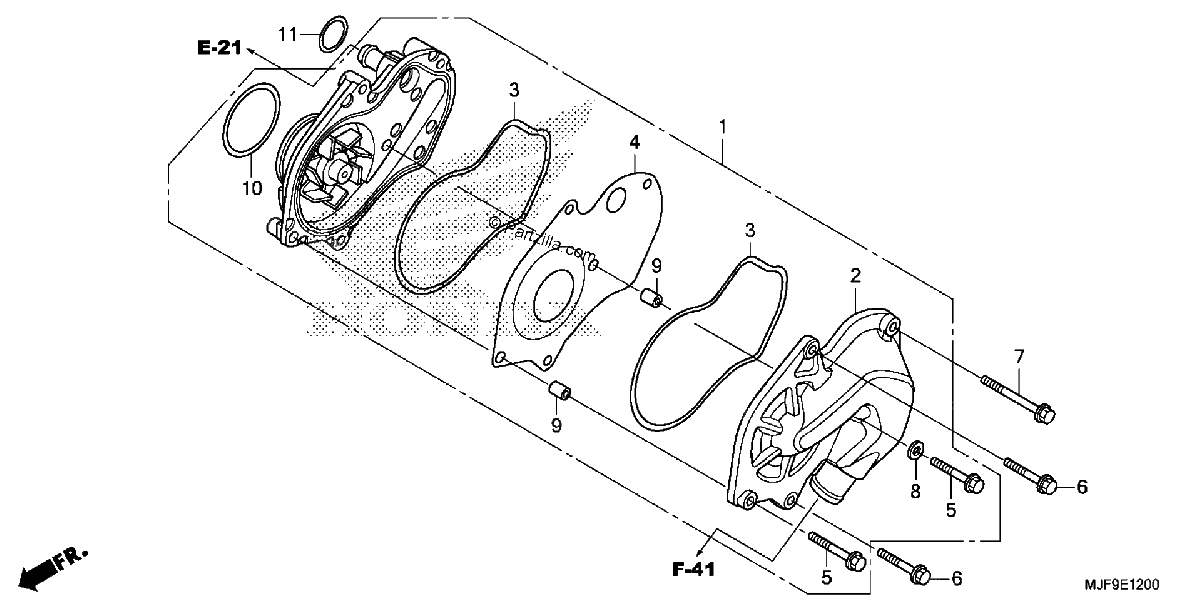

Diagrama de WATER PUMP

Repuestos

#1
19200-MGS-D10
WATER PUMP Assembly.
$367.70¢183 850
1
#001
19200-MGS-D10
WATER PUMP Assembly.
$367.70¢183 850
1
#002
19221-MGS-D10
COVER, WATER PUMP
$168.15¢84 075
1
#2
19221-MGS-D10
COVER, WATER PUMP
$168.15¢84 075
1
#3
19226-MGS-D30
GASKET, WATER PUMP BODY
$8.05¢4 025
1
#003
19226-MGS-D30
GASKET, WATER PUMP BODY
$8.05¢4 025
1
#004
19231-MGS-D30
PLATE, WATER PUMP
$11.83¢5 913
1
#4
19231-MGS-D30
PLATE, WATER PUMP
$11.83¢5 913
1
#5
90006-GHB-690
BOLT, FLANGE (6X32) (NSHF)
$2.48¢1 238
1
#005
90006-GHB-690
BOLT, FLANGE (6X32) (NSHF)
$2.48¢1 238
1
#6
90006-GHB-700
BOLT, FLANGE (6X35) (NSHF)
$2.48¢1 238
1
#006
90006-GHB-700
BOLT, FLANGE (6X35) (NSHF)
$2.48¢1 238
1
#007
90006-GHB-730
BOLT, FLANGE (6X50) (NSHF)
$2.31¢1 156
1
#7
90006-GHB-730
BOLT, FLANGE (6X50) (NSHF)
$2.31¢1 156
1
#008
90406-MGS-D30
WASHER, SEALING (6.5MM)
$1.82¢913
1
#8
90406-MGS-D30
WASHER, SEALING (6.5MM)
$1.82¢913
1
#8
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.65¢1 825
1
#008
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.65¢1 825
1
#009
90704-MGS-D30
PIN, DOWEL (8X10)
$1.93¢963
1
#9
90704-MGS-D30
PIN, DOWEL (8X10)
$1.93¢963
1
#10
91301-MGS-D30
O-RING (48X2.6)
$3.71¢1 856
1
#010
91301-MGS-D30
O-RING (48X2.6)
$3.71¢1 856
1
#011
91306-ZY3-003
O-RING (23.5X2)
$4.41¢2 206
1
#11
91306-ZY3-003
O-RING (23.5X2)
$4.41¢2 206
1
