RIGHT CRANKCASE COVER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

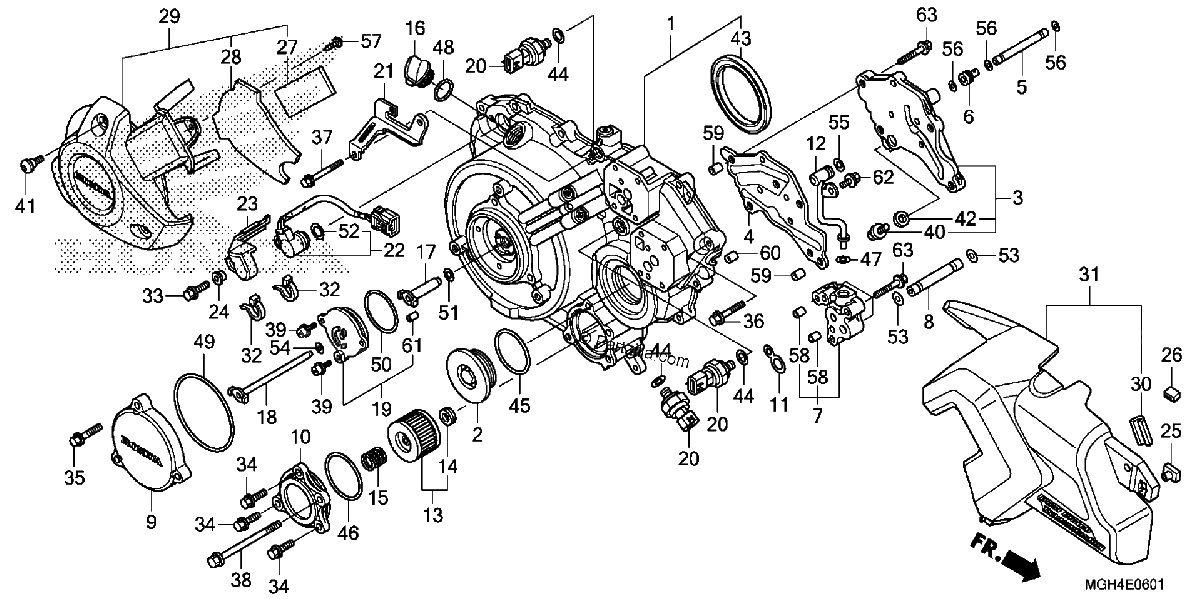

Diagrama de RIGHT CRANKCASE COVER 2

Repuestos

#1
11300-MGE-D00
COVER ASSY., R.
$538.84¢269 419
1
#2
11332-MBZ-D00
CAP (45MM)
$22.16¢11 081
1
#3
11360-MGE-D00
COVER, R. (INNER)
$67.31¢33 656
1
#4
11362-MGE-D01
PLATE, COVER (INNER)
$24.35¢12 175
1
#5
11366-MGE-D00
PIPE, COVER (INNER)
$21.72¢10 862
1
#6
11367-MGE-D00
ORIFICE (1.1MM)
$11.06¢5 531
1
#7
11370-MGE-D00
BASE, OIL PASSAGE PIPE
$66.41¢33 206
1
#8
11373-MGE-D00
PIPE, OIL FILTER
$33.61¢16 806
1
#9
11375-MGE-D00
CAP, R. COVER
$83.52¢41 762
1
#10
11376-MGE-D00
COVER, OIL FILTER
$110.06¢55 031
1
#11
11379-MGE-D01
SEAL, RUBBER
$7.88¢3 938
1
#12
11390-MGE-D00
PIPE, OIL PASSAGE
$122.46¢61 231
1
#13
15412-MGE-D01
ELEMENT, OIL FILTER
$11.78¢5 888
1
#14
15413-MC8-000
RUBBER, FILTER
$4.06¢2 031
1
#15
15414-KF0-000
SPRING, OIL FILTER ELEMENT SETTING
$5.15¢2 575
1
#16
15611-KA4-710
CAP, OIL FILLER
$16.71¢8 356
1
#17
22711-MGE-D00
PIPE A, FEED
$24.80¢12 400
1
#18
22712-MGE-D00
PIPE B, FEED
$30.19¢15 094
1
#19
22720-MGE-D00
GUIDE, FEED PIPE
$112.93¢56 463
1
#20
28660-RFH-013
SENSOR ASSY., OIL PRESSURE
$120.20¢60 100
1
#21
32158-MGE-D00
STAY, CONNECTOR
$7.09¢3 544
1
#22
38810-MGE-D01
SENSOR ASSY., ANGLE (40DEGREE)
$265.88¢132 938
1
#23
38815-MGE-D00
COVER, ANGLE SENSOR
$11.64¢5 819
1
#24
38816-MGE-D00
COLLAR, SENSOR COVER
$6.99¢3 494
1
#25
61304-HB3-003
NUT, SPECIAL (6MM)
$3.65¢1 825
1
#26
64454-KVZ-630
RUBBER, FUEL HINGE
$2.82¢1 412
1
#27
64951-MGE-D00
MAT A, ENGINE GUARD
$2.24¢1 119
1
#28
64952-MGE-D00
MAT B, ENGINE GUARD
$6.79¢3 394
1
#29
64960-MGE-D00ZA
GUARD SET, R. ENGINE COVER *NH437M* (MAT RAY SILVER)
$86.58¢43 288
1
#30
77212-MFJ-D00
PROTECTOR, RUBBER
$2.24¢1 119
1
#31
83500-MGH-D20ZB
COVER SET, SOLENOID VALVE (TYPE1) (WL)
$45.61¢22 806
1
#32
83645-GG0-000
BAND, NYLON
$2.50¢1 250
1
#33
90011-MGE-D00
BOLT, KNOCK (6MM)
$3.71¢1 856
1
#34
90016-GHB-640
BOLT, FLANGE (6X18)
$2.56¢1 281
1
#35
90016-GHB-660
BOLT, FLANGE (6X22)
$2.81¢1 406
1
#36
90016-GHB-680
BOLT, FLANGE (6X28)
$2.92¢1 463
1
#37
90016-GHB-710
BOLT, FLANGE (6X40)
$2.76¢1 381
1
#38
90016-GHB-780
BOLT, FLANGE (6X75)
$3.21¢1 606
1
#39
91311-MGE-D01
O-RING (9.8X2.4)
$2.27¢1 138
1
#39
90089-KAS-900
BOLT, FLANGE SOCKET (5X14)
$1.79¢894
1
#40
90109-371-000
BOLT, SEALING (8MM)
$3.43¢1 713
1
#41
90114-MGE-D00
BOLT, SPECIAL (6X15)
$2.64¢1 319
1
#42
90421-KM1-003
WASHER, SEALING
$2.70¢1 350
1
#43
91011-MGE-D01
BEARING, RADIAL BALL LLU (6810)
$70.38¢35 188
1
#44
91301-MEH-003
O-RING (13X1.5)
$2.09¢1 044
1
#45
91301-ML7-003
O-RING (48.1X3.6) (ARAI)
$4.76¢2 381
1
#46
91302-KF0-003
O-RING (54X2.4) (ARAI)
$4.20¢2 100
1
#47
91303-428-003
O-RING (7.7X2.5)
$2.44¢1 219
1
#48
91307-KF0-003
O-RING (18X3) (ARAI)
$3.65¢1 825
1
#49
91307-MGE-D01
O-RING (81X2.2)
$5.04¢2 519
1
#50
91308-MGE-D01
O-RING (46X1.9)
$3.36¢1 681
1
#51
91308-PY4-003
O-RING (10.7X1.9)
$1.56¢781
1
#52
91310-MGE-D01
O-RING (16.5X2.5)
$6.19¢3 094
1
#54
91315-PC9-004
O-RING (6X1.5) (N0K)
$2.27¢1 138
1
#55
91317-P4V-004
O-RING (9.8X1.9) (ARAI)
$3.59¢1 794
1
#56
91319-ME5-003
O-RING (5.5X1.4)
$2.38¢1 188
1
#57
93903-24280
SCREW, TAPPING (4X10)
$1.74¢869
1
#58
94301-06100
PIN, DOWEL (6X10)
$2.89¢1 444
1
#59
94301-08100
PIN, DOWEL (8X10)
$2.89¢1 444
1
#60
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#61
94302-05080
PIN B, DOWEL (5X8)
$2.89¢1 444
1
#61
94303-05080
PIN, DOWEL (5X8)
$2.89¢1 444
1
#62
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#63
95701-06030-00
BOLT, FLANGE (6X30)
$2.41¢1 206
1
