FUEL TANK

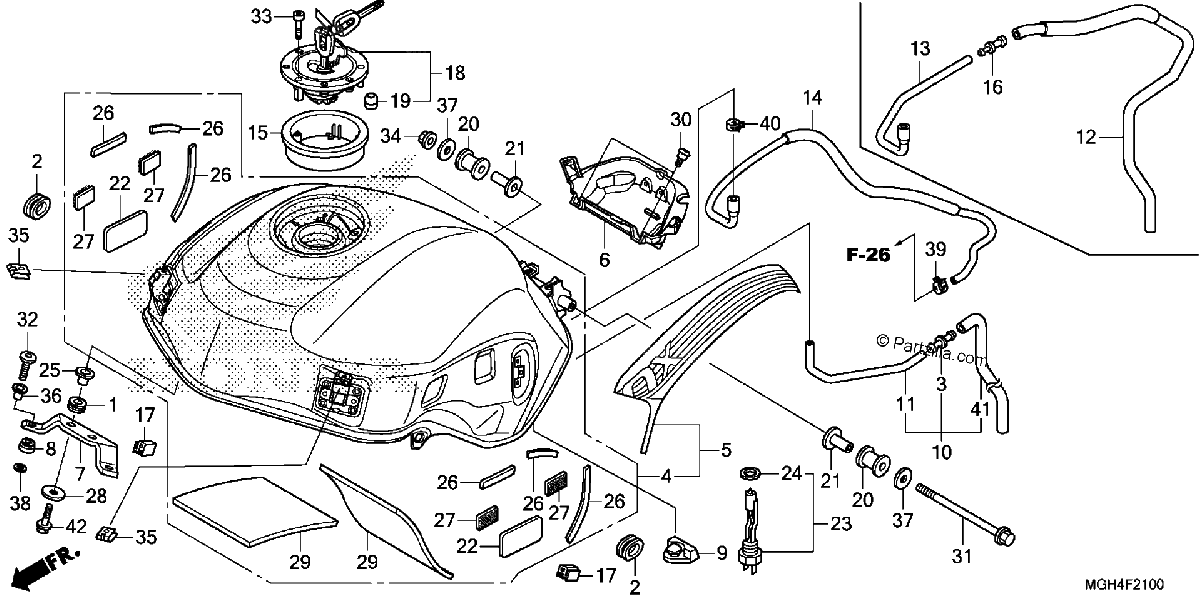

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
RUBBER, AIR CLEANER HOUSING MOUNTING
$3.36¢1 679
#2
GROMMET A, AIR CLEANER HOUSING
$3.36¢1 679
#3
JOINT, BREATHER TUBE
$2.43¢1 213
#4
TANK ASSY., FUEL *NHA64P* (PEARL COSMIC BLACK)
$1680.44¢840 219
#6
PROTECTOR, TANK HEAT
$33.97¢16 986
#7
STAY, FR. FUEL TANK
$29.16¢14 582
#8
RUBBER, FUEL TANK STAY
$4.69¢2 346
#9
RUBBER, RR. FUEL TANK
$8.69¢4 347
#10
TUBE ASSY., DRAIN
$44.49¢22 247
#11
TUBE, DRAIN
$7.46¢3 732
#14
TUBE, CHARGE
$15.01¢7 504
#15
SPACER, FUEL FILLER
$11.09¢5 543
#17
CUSHION, FUEL TANK
$9.18¢4 589
#18
CAP, FUEL FILLER
$262.82¢131 410
#19
SEAL, BREATHER
$5.73¢2 864
#20
RUBBER, MUFFLER MOUNTING
$7.07¢3 536
#21
COLLAR, MUFFLER MOUNTING
$6.60¢3 301
#22
MAT, CUSHION
$2.79¢1 397
#23
SENSOR, FUEL RESERVE
$101.96¢50 979
#24
GASKET, FUEL RESERVE SENSOR
$3.36¢1 679
#25
COLLAR, FR. FENDER
$5.49¢2 743
#26
RUBBER (100X5X2.0)
$4.05¢2 024
#27
FASTENER A, DUAL LOCK (20X40)
$7.65¢3 824
#28
WASHER, SEAT MOUNTING
$3.60¢1 800
#29
URETHANE, FUEL TANK (LOWER)
$11.95¢5 974
#30
SCREW, SPECIAL (5X14)
$3.36¢1 679
#31
BOLT, FLANGE (8X190)
$14.85¢7 423
#32
BOLT, SOCKET (6X22)
$3.36¢1 679
#33
BOLT, SOCKET (4X24) (SUS)
$3.63¢1 817
#34
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$3.74¢1 869
#35
NUT, SPRING (5MM)
$2.33¢1 167
#36
COLLAR, FUEL TANK MOUNTING
$4.11¢2 053
#37
WASHER A, HANDLE HOLDER SETTING
$1.64¢822
#38
WASHER B, HANDLE HOLDER SETTING
$2.17¢1 087
#39
CLAMP, TUBE (D8)
$2.66¢1 328
#40
CLAMP, TUBE (D10)
$2.64¢1 322
#41
BULK HOSE, VACUUM (7.3X3000) (7.3X950)
$105.67¢52 837
#42
BOLT, FLANGE (6X25)
$2.48¢1 242
