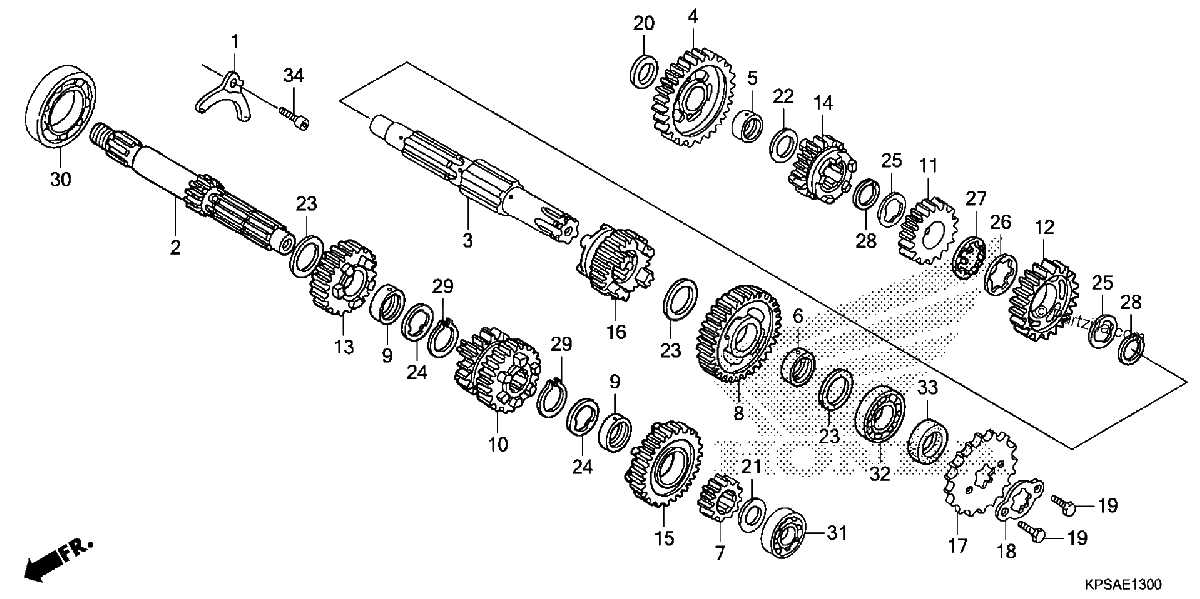

TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PLATE, BEARING SETTING
$17.89¢8 947
#2
MAINSHAFT, TRANSMISSION (13T)
$128.51¢64 256
#3
COUNTERSHAFT, TRANSMISSION
$137.66¢68 828
#4
GEAR, COUNTERSHAFT FIRST (36T)
$77.76¢38 882
#5
COLLAR, COUNTERSHAFT LOW GEAR
$22.14¢11 069
#5
COLLAR, COUNTERSHAFT FIRST
$22.14¢11 069
#6
BUSH (20MM)
$33.05¢16 525
#7
GEAR, MAINSHAFT SECOND (17T)
$17.95¢8 976
#8
GEAR, COUNTERSHAFT SECOND (33T)
$28.68¢14 341
#9
BUSH (20X23X9)
$29.82¢14 910
#10
GEAR, MAINSHAFT THIRD FOURTH (20T/27T)
$46.52¢23 259
#11
GEAR, COUNTERSHAFT THIRD (29T)
$33.43¢16 715
#12
GEAR, COUNTERSHAFT FOURTH (31T)
$30.73¢15 364
#13
GEAR, MAINSHAFT FIFTH (25T)
$24.56¢12 282
#14
GEAR, COUNTERSHAFT FIFTH (24T)
$35.60¢17 802
#15
GEAR, MAINSHAFT TOP (32T)
$27.65¢13 823
#16
GEAR, COUNTERSHAFT TOP (26T)
$30.23¢15 117
#17
SPROCKET, DRIVE (13T)
$26.60¢13 300
#18
PLATE A2, FIXING
$5.11¢2 553
#19
BOLT, HEX. (6X10)
$3.19¢1 593
#19
BOLT, HEX. (6X10)
No Disponible
#20
WASHER, THRUST (15MM)
$3.42¢1 708
#21
WASHER, THRUST (15MM)
$1.59¢793
#22
WASHER, THRUST (16.5MM)
$3.07¢1 535
#23
WASHER B, THRUST (20MM)
$0.94¢471
#24
WASHER A, SPLINE (20MM)
$2.01¢1 006
#25
WASHER, SPLINE (22MM)
$3.90¢1 949
#26
WASHER, COUNTERSHAFT THIRD SPLINE
$5.77¢2 886
#27
WASHER, LOCK
$7.97¢3 985
#28
CIRCLIP (OUTER) (22MM)
$10.32¢5 158
#29
SET-RING (20MM)
$2.68¢1 340
#30
BEARING, RADIAL BALL (20X55X11)
$14.10¢7 049
#31
BEARING, RADIAL BALL (6202U)
$39.93¢19 964
#32
BEARING, RADIAL BALL (6204) (FUJIKOSHI)
$21.71¢10 856
#33
OIL SEAL (20X34X7)
$2.22¢1 110
#34
BOLT, SOCKET (8X18)
$1.75¢874
