AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

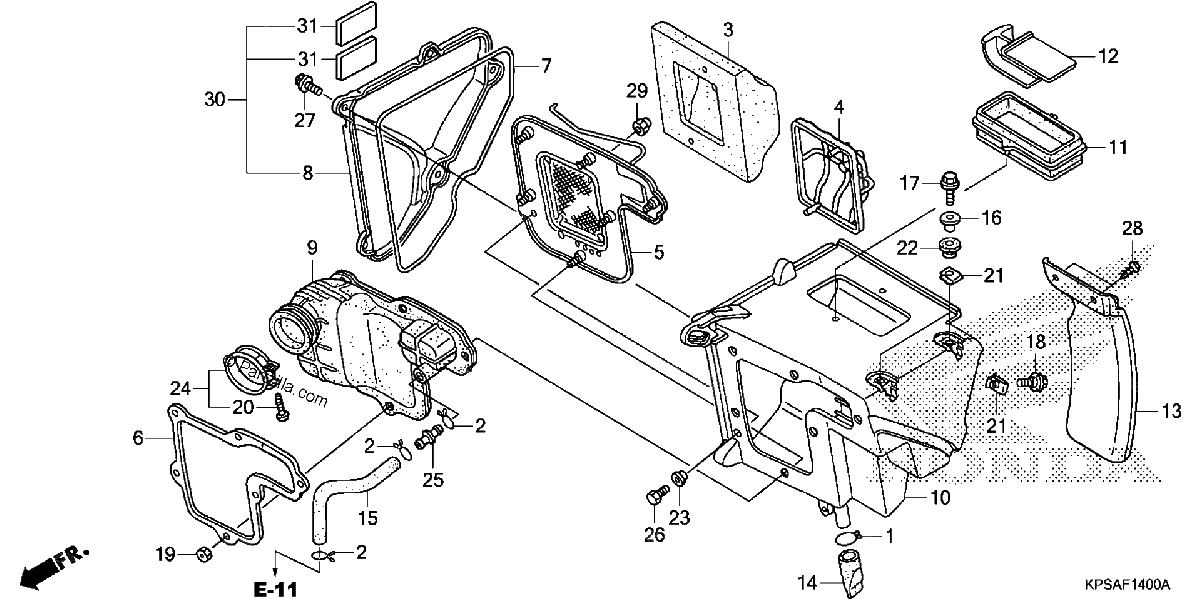

Diagrama de AIR CLEANER

Repuestos

#1
15772-292-010
CLIP, BREATHER TUBE
$3.36¢1 679
1
#1
15772-KPS-900
CLIP, BREATHER TUBE
$3.36¢1 679
1
#2
15772-MN1-670
CLIP B, BREATHER TUBE
$3.36¢1 679
1
#3
17213-KPS-900
ELEMENT, AIR CLEANER
$32.07¢16 037
1
#4
17214-KPS-900
HOLDER, ELEMENT
$10.80¢5 399
1
#5
17216-KPS-900
PLATE, ELEMENT SETTING
$68.97¢34 483
1
#6
17217-KPS-900
PLATE, FR. HOLDER
$6.04¢3 019
1
#7
17219-KPS-900
SEAL, AIR CLEANER COVER
$5.67¢2 835
1
#9
17222-KPS-900
TUBE, AIR CLEANER CONNECTING
$36.27¢18 135
1
#10
17230-KPS-900
HOUSING, AIR CLEANER
$619.79¢309 896
1
#11
17240-KPS-900
DUCT, AIR CLEANER IN.
$21.96¢10 983
1
#12
17241-KPS-900
CAP, IN. DUCT
$3.24¢1 621
1
#13
17245-KPS-900
SPLASH GUARD
$12.16¢6 078
1
#14
17358-170-000
TUBE, DRAIN
$4.17¢2 087
1
#15
17371-KPS-900
TUBE, BREATHER
$7.24¢3 622
1
#16
83505-KPS-900
COLLAR, COVER MOUNTING
$1.13¢564
1
#17
90040-GHR-680
BOLT, FLANGE (6X20)
$1.09¢546
1
#17
90104-KPS-900
BOLT, FLANGE (6X20)
$1.09¢546
1
#18
90111-KPS-900
BOLT, FLANGE (6MM)
$1.17¢586
1
#18
90120-KRM-860
BOLT, FLANGE (6MM)
$1.17¢586
1
#19
94001-05070-0S
NUT, HEX. (5MM)
$1.23¢615
1
#20
93500-05028-0G
SCREW, PAN (5X28)
$0.80¢402
1
#21
90311-KPS-900
NUT, CLIP (6MM)
$2.79¢1 397
1
#22
90505-MC4-000
GROMMET A, AIR CLEANER HOUSING
$3.42¢1 708
1
#23
90520-134-000
WASHER, HEADLIGHT CASE SETTING
$3.15¢1 576
1
#24
90652-KPS-900
BAND, AIR CLEANER CONNECTING TUBE (52)
$4.94¢2 472
1
#25
91463-KPS-900
JOINT, TUBE
$1.70¢851
1
#26
92101-05010-0A
BOLT, HEX. (5X10)
$1.03¢518
1
#27
93891-05012-07
SCREW-WASHER (5X12)
$1.36¢678
1
#28
93903-25210
SCREW, TAPPING (5X12)
$0.98¢489
1
#29
94021-05020-0S
NUT, CAP (5MM)
$0.80¢402
1
#30
17210-KPS-A70ZA
COVER, AIR CLEANER *NH1* (BLACK)
$13.04¢6 520
1
#31
17518-KPF-900
RUBBER B, FUEL TANK
$2.06¢1 029
1
