FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

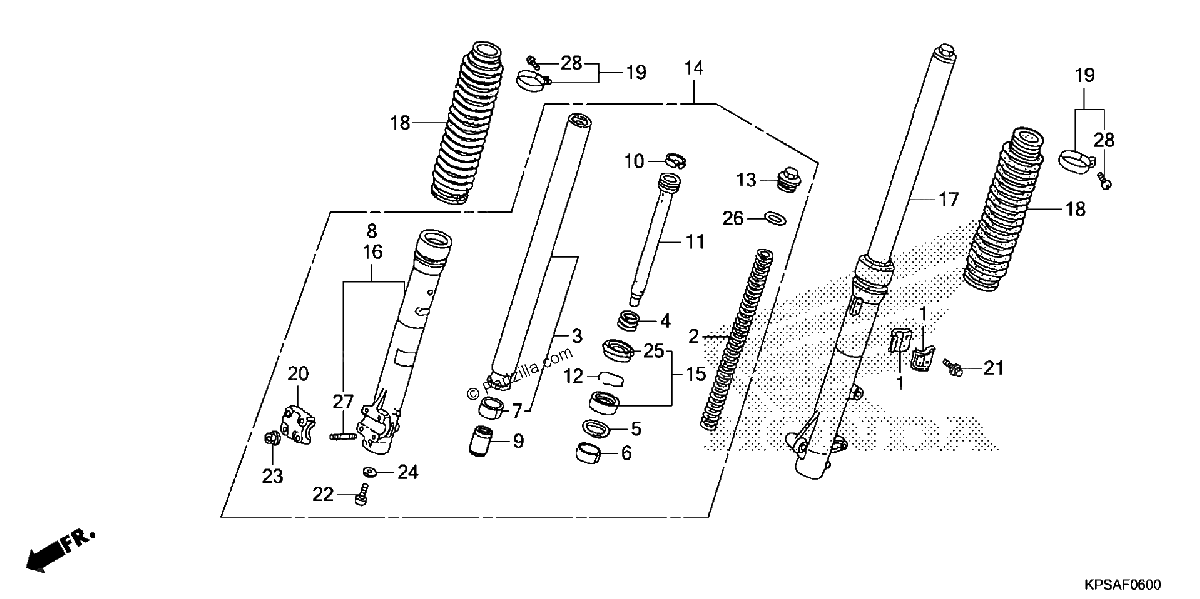

Diagrama de FRONT FORK

Repuestos

#1
45461-KPS-900
CLAMP A, BRAKE HOSE
$9.30¢4 650
1
#2
51401-KPS-901
SPRING, FR. FORK
$30.43¢15 213
1
#3
51410-KPS-901
PIPE, FR. FORK
$92.75¢46 375
1
#4
51411-MG1-003
SPRING, Front FORK REBOUND
$8.03¢4 013
1
#5
51412-461-003
RING, BACK-UP
$8.54¢4 269
1
#6
51414-MN4-003
BUSH, GUIDE
$15.48¢7 738
1
#7
51415-KS5-003
BUSH, SLIDER
$9.90¢4 950
1
#8
51430-KPS-B71
CASE SET, R. (LOWER)
$148.81¢74 406
1
#9
51432-KPS-A11
PIECE, OIL LOCK
$4.55¢2 275
1
#10
51437-ME4-003
RING, PISTON
$11.25¢5 625
1
#11
51440-KPS-901
PIPE, SEAT
$35.49¢17 744
1
#12
51447-KR6-003
RING, OIL SEAL STOPPER
$4.58¢2 288
1
#13
51450-KAS-901
BOLT, Front FORK
$29.35¢14 675
1
#14
51480-KPS-305
FORK SUB-ASSY., R. FR. (COO) (SHOWA)
$507.92¢253 962
1
#15
51490-KR6-305
SEAL SET, FR. FORK
$26.75¢13 375
1
#16
51530-KPS-B71
CASE SET, L. (LOWER)
$150.84¢75 419
1
#17
51580-KPS-305
FORK SUB-ASSY., L. FR. (COO) (SHOWA)
$481.64¢240 819
1
#18
51611-KR6-013ZH
BOOT, FR. FORK *NH1* (BLACK)
$54.95¢27 475
1
#18
51611-KR6-013ZK
BOOT, FR. FORK *NH1L* (BLACK)
$54.95¢27 475
1
#19
51612-430-010
BAND, FR. FORK BOOT
$9.83¢4 913
1
#20
51634-MA0-003
HOLDER, AXLE
$43.83¢21 913
1
#21
96001-06014-00
BOLT, FLANGE (6X14)
$2.31¢1 156
1
#22
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
1
#23
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
1
#24
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
1
#25
91254-KR6-003
DUST SEAL
$18.88¢9 438
1
#26
91357-ME4-003
O-RING (27.7X3.5)
$4.06¢2 031
1
#27
92900-06025-0E
BOLT, STUD (6X25)
$1.34¢669
1
#28
93500-03025-0A
SCREW, PAN (3X25)
$1.06¢531
1
